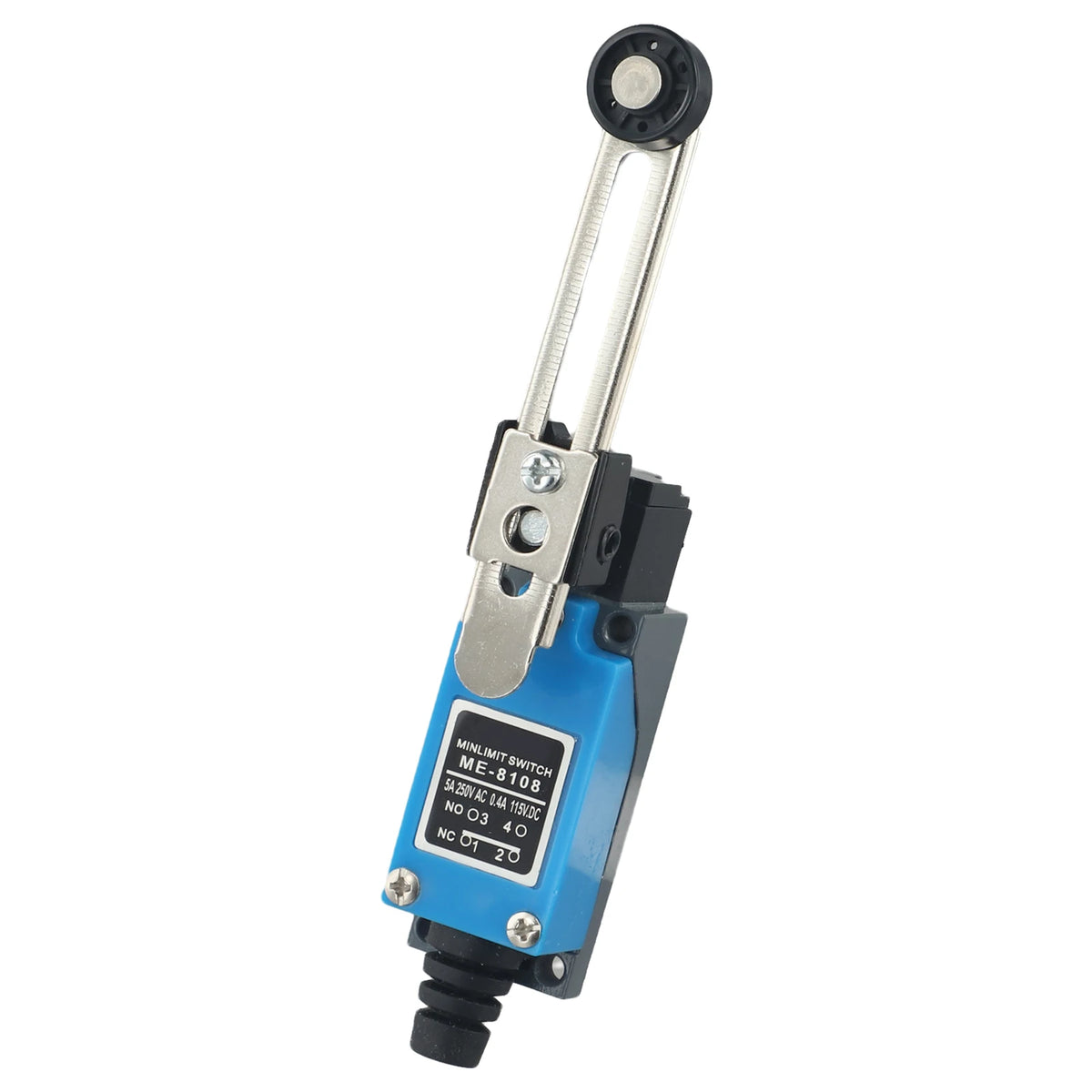

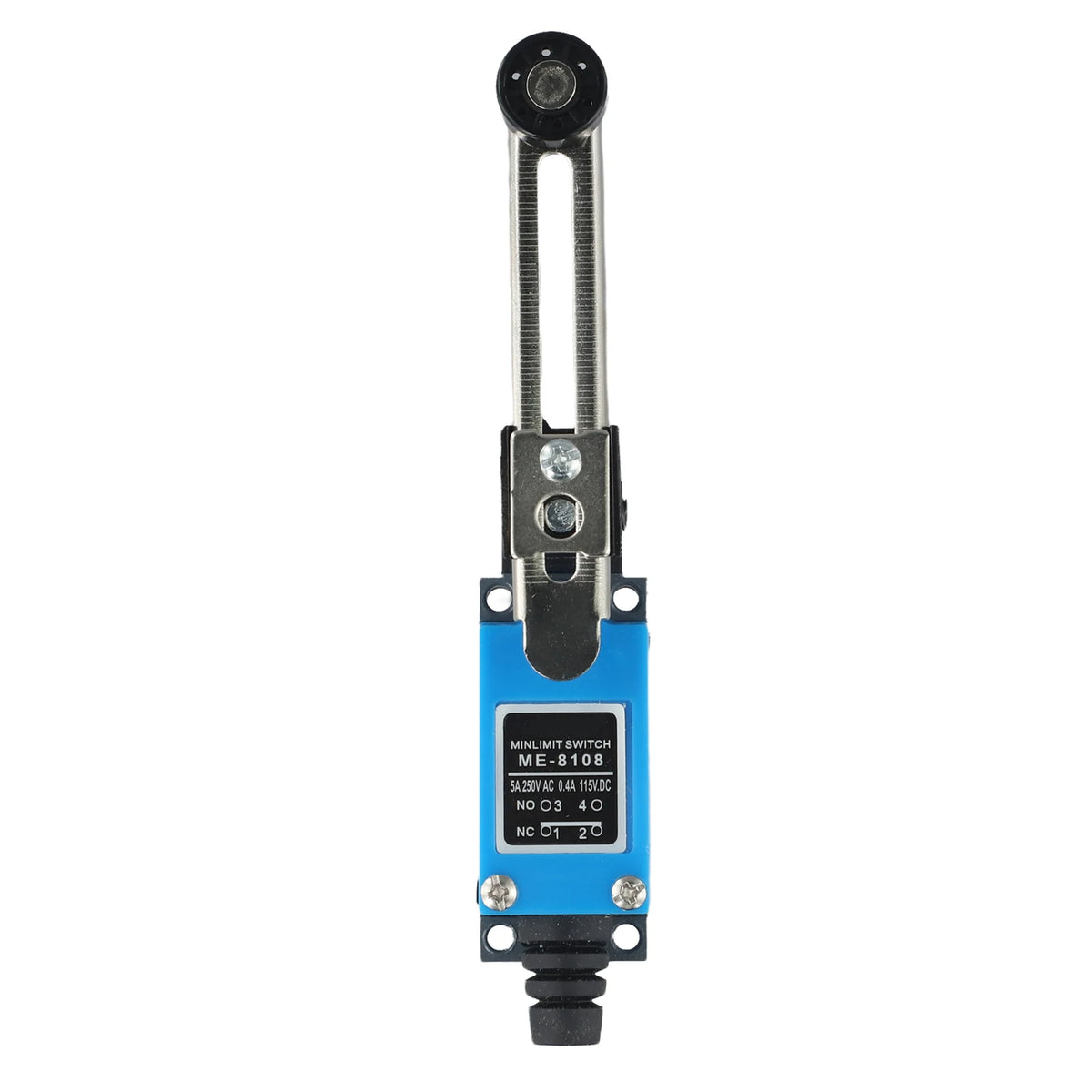

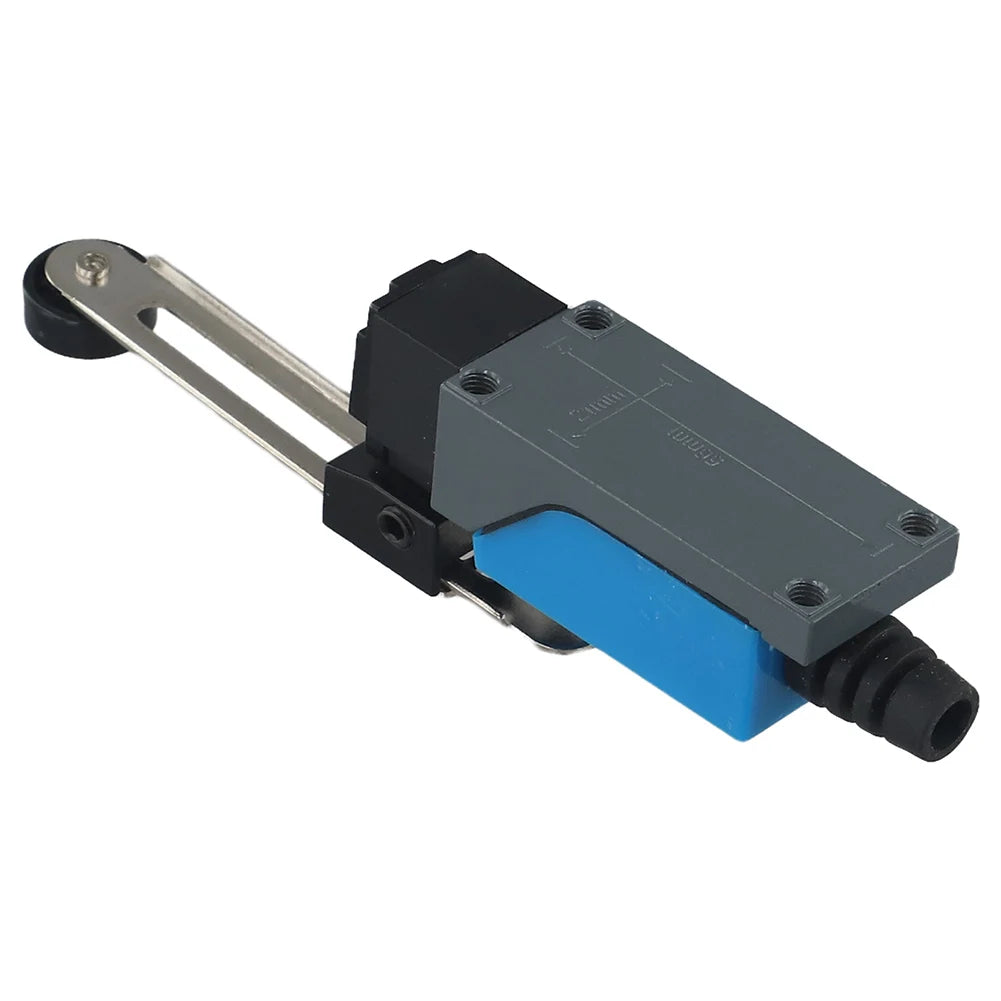

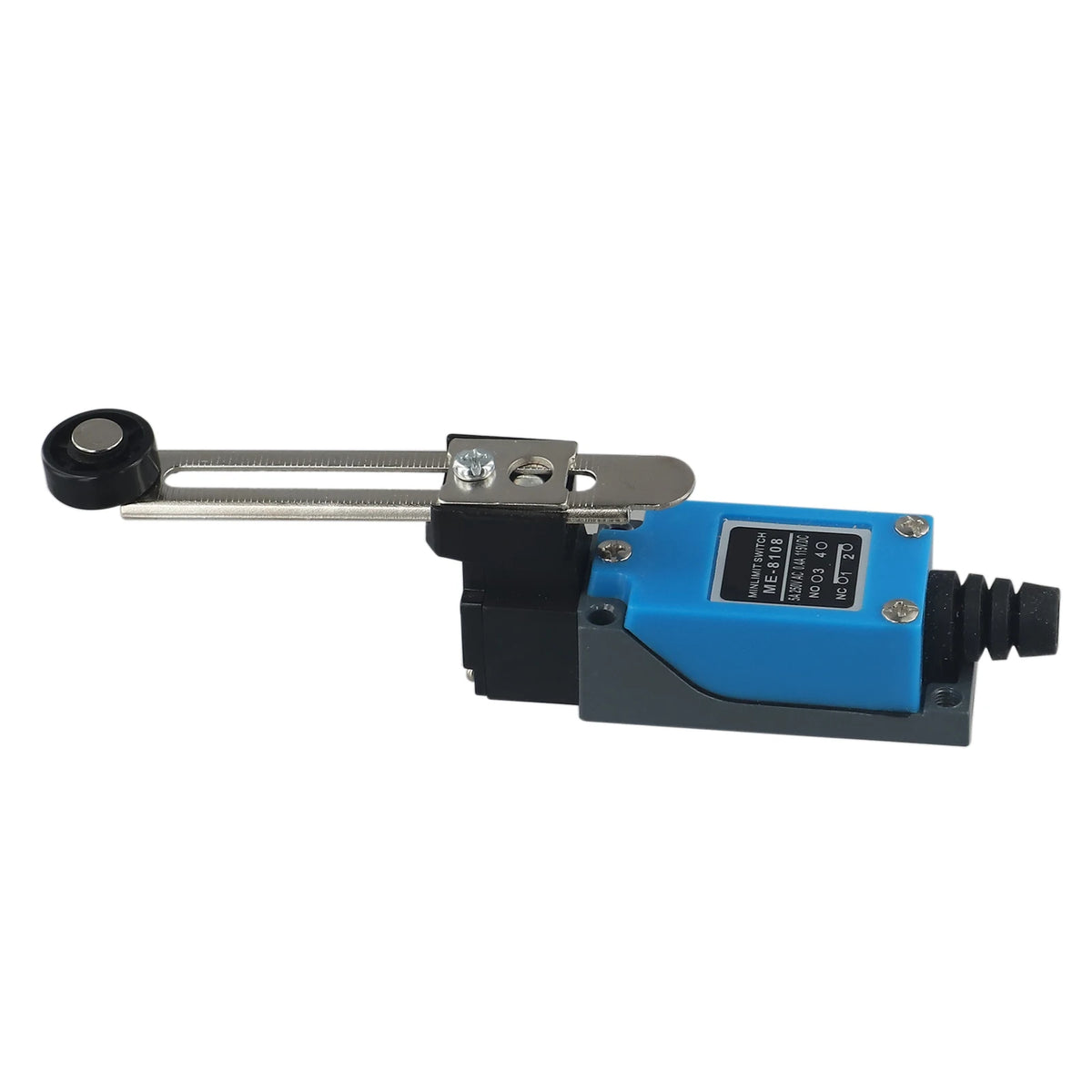

ME-8108 IP65 Waterproof Rotary Roller Lever Arm Limit Switch
The ME-8108 Limit Switch is an industrial-grade rotary adjustable roller lever arm travel switch built to perform reliably in demanding environments. With an IP65 waterproof and oil-proof rating, a self-reset action form, and a 1NO1NC contact configuration, this switch is engineered for factories, workshops, high-rise buildings, and residential automation systems. Whether you need precise line self-regulation, circuit conversion, or safety control, the ME-8108 delivers consistent and dependable operation cycle after cycle.
Key Features

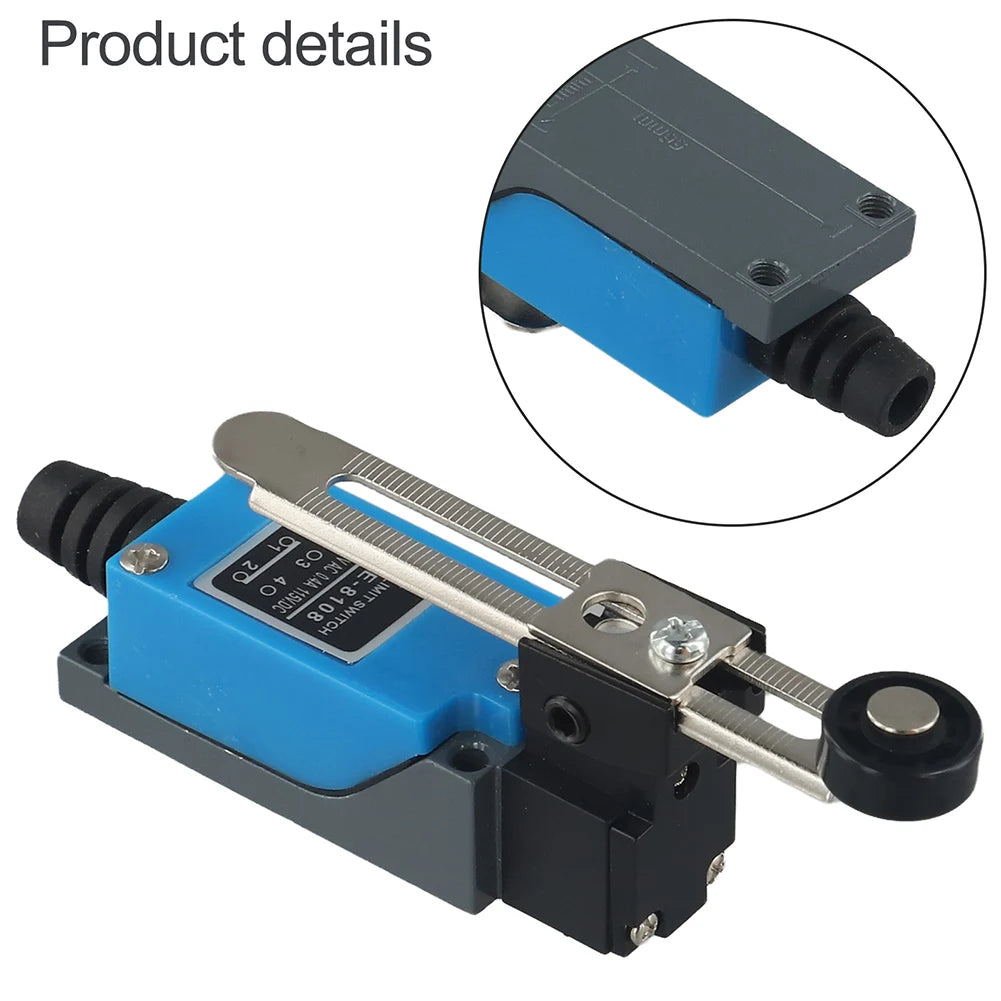

- Lasting & Smooth Mechanical Structure – High-quality metal swing rack design ensures sensitive contact and smooth movement for stable, reliable performance across a wide range of applications.
- Insulated & Dustproof Wiring Port – The bottom wiring port features a flexible laminated insulation structure, effectively blocking dust and protecting wires from damage or breakage.
- IP65 Waterproof & Oil-Proof Protection – Industrial-grade IP65 sealing resists water, oil, and dust ingress, making this switch safe and dependable even in harsh industrial environments.
- Strong & Conductive Construction – Built with a high-strength aluminum alloy shell and thickened internal copper contacts for excellent impact resistance and strong electrical conductivity.
- Wide Application Range – Suitable for factories, workshops, high-rise buildings, and residential installations; ideal for line self-regulation, safety protection, and circuit conversion tasks.
- Long Service Life – Rated for over 500,000 operational cycles, ensuring maximum value and minimal maintenance downtime.

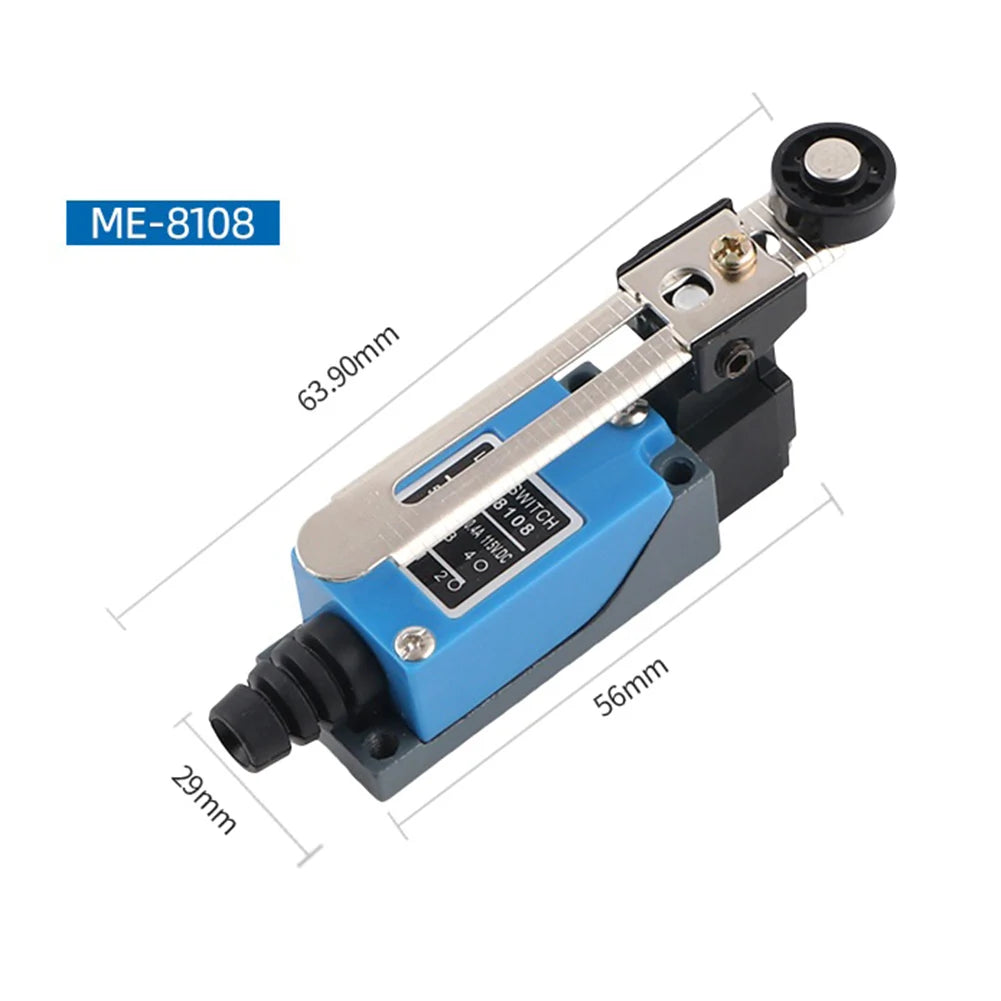

Specifications
| Model | ME-8108 |
| Color | Blue / Black |
| Material | Aluminum Alloy |
| Action Form | Self-Reset |
| Voltage & Current | 250V / 5A |
| Contact Form | 1NO + 1NC (Normally Open + Normally Closed) |
| Protection Level | IP65 |
| Wiring Type | Pressure Plate Type |
| Operating Temperature | -10°C ~ 70°C |
| Insulation Resistance | > 100 MΩ |
| Lifespan | Over 500,000 cycles |
| Operating Frequency | 120 cycles/min (powered) |
| Country of Origin | Made in Mainland China |
Package Contents
- 1 × ME-8108 Travel Limit Switch
Note: Actual color may vary slightly from images due to monitor brightness and display settings. Please allow minor measurement tolerances for all listed dimensions.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What does the IP65 rating mean for the ME-8108 limit switch?
A: An IP65 rating means the ME-8108 limit switch is fully protected against dust ingress (6) and resistant to low-pressure water jets from any direction (5). It is also oil-resistant, making it well-suited for industrial environments such as factories, machine rooms, and outdoor enclosures where exposure to water, oil mist, or dust is common.
Q: What is a 1NO1NC contact configuration?
A: A 1NO1NC (1 Normally Open + 1 Normally Closed) contact configuration means the switch has two sets of contacts: one that is open in its resting state and closes when actuated, and one that is closed at rest and opens when actuated. This allows the ME-8108 to handle both make and break control circuits simultaneously, giving you greater flexibility for automation and safety control wiring.
Q: What type of actuator does the ME-8108 use?
A: The ME-8108 uses a rotary adjustable roller lever arm actuator. This design allows the switch to be triggered by a moving object or machine part contacting the roller, making it ideal for position sensing, end-of-travel detection, and conveyor or door control applications. The lever arm angle is adjustable for precise positioning.
Q: Is the ME-8108 suitable for outdoor use?
A: Yes. Thanks to its IP65 waterproof and oil-proof protection rating and a wide operating temperature range of -10°C to 70°C, the ME-8108 is suitable for use in both indoor and outdoor industrial environments, provided it is installed within its rated specifications.
