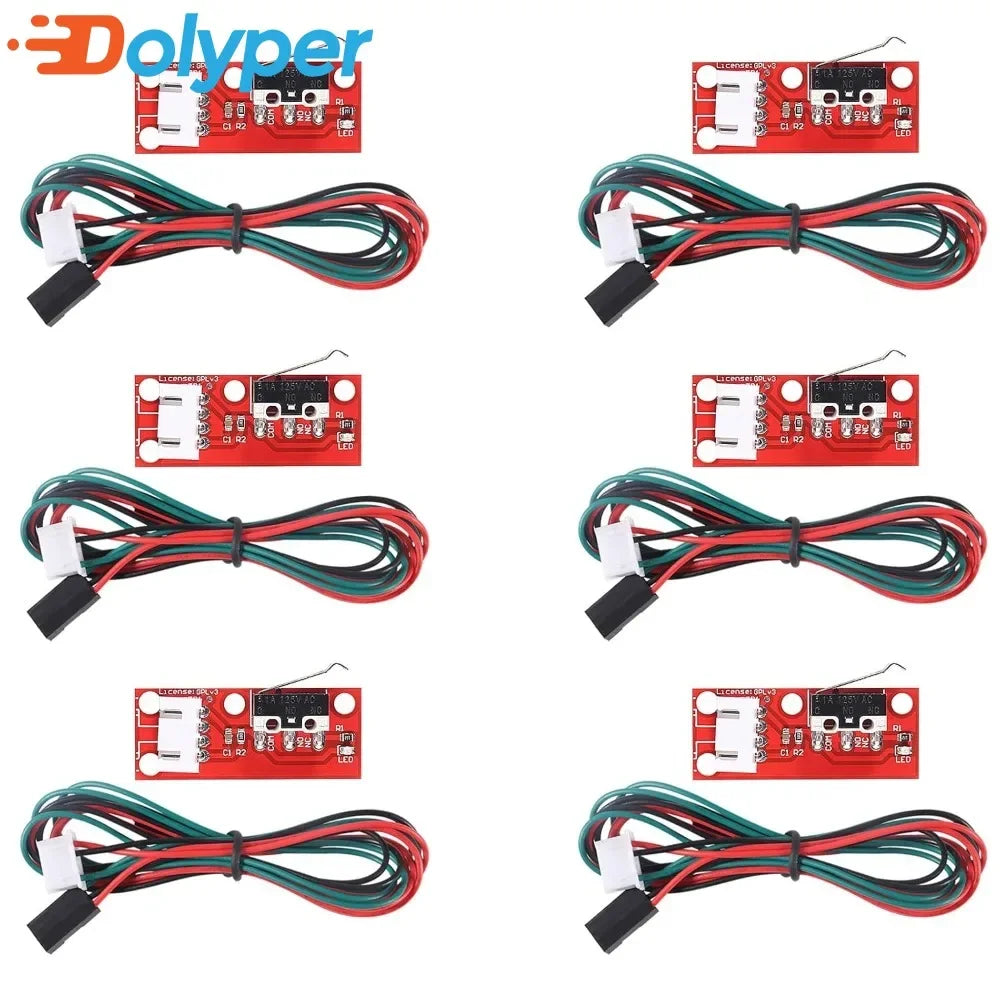

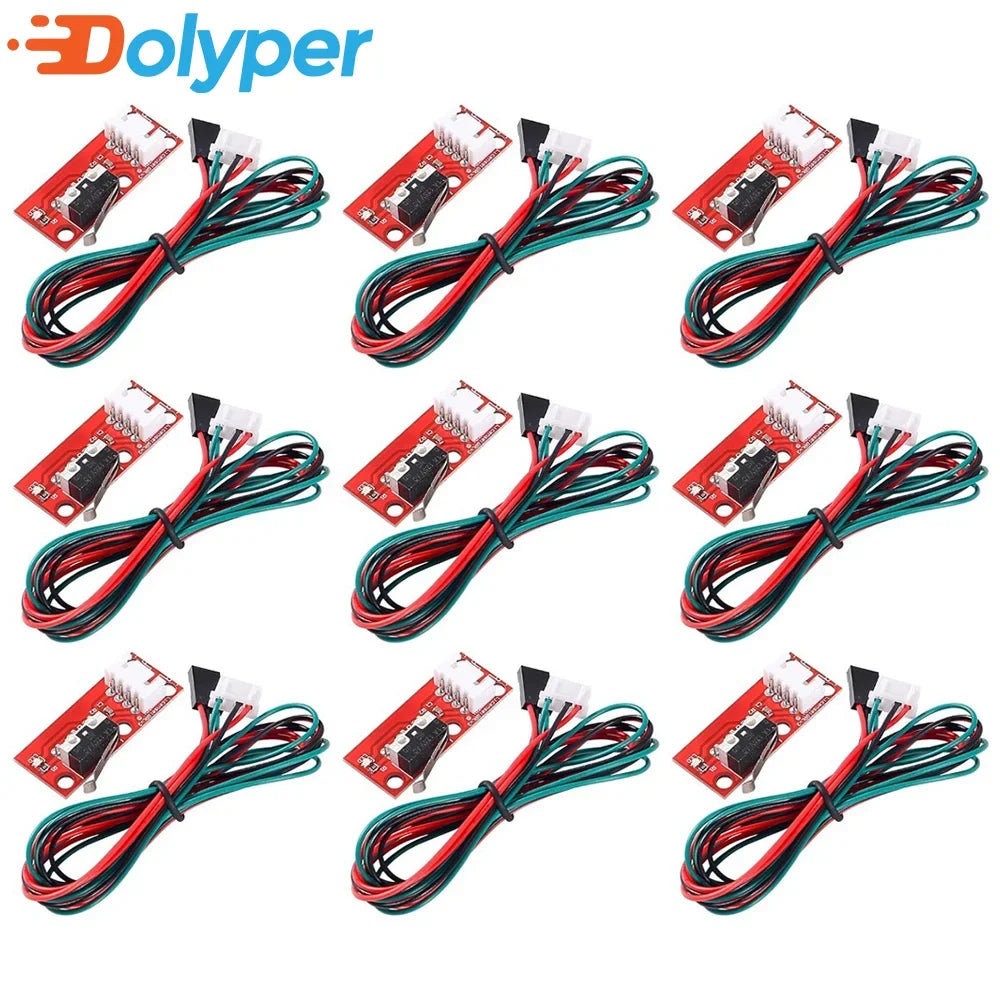

Upgrade your 3D printer or CNC build with the Dolyper Mechanical Endstop Limit Switch Module — a reliable, easy-to-install touch switch kit designed for RepRap printers, RAMPS 1.4 boards, Mega2560 control boards, and other popular RepRap-compatible electronics. Available in convenient 3-pack, 6-pack, or 9-pack bundles to suit your project needs.
Key Features
- Wide Compatibility: Fully supported by RepRap electronics, RAMPS 1.4, Mega2560, and other mainstream RepRap control boards.
- Premium 22AWG Wiring: Thick copper-core wire rated up to 2A current and 300V voltage — far superior to standard thin copper connections.
- High-Temperature Insulation: The insulating layer withstands temperatures up to 80°C, ensuring stable performance even in demanding environments.
- Generous Cable Length: Each module comes with a 70 cm (approx. 27.5 in) cable for flexible routing inside your printer or CNC enclosure.
- Compact & Precise: Measures just 32 × 10 mm — a slim, universal form factor that fits most standard mounting positions.
- No Assembly Required: Plug-and-play design; connects straight to your control board with no soldering needed.
- Universal Mounting: Commonly used model with strong universality across DIY and commercial 3D printer builds.
Wiring / Connection Guide
- Red Wire → VCC (RAMPS "+")
- Black Wire → GND (RAMPS "−")
- Green Wire → SIGNAL (RAMPS "S")
Note: A properly configured 3D printer or CNC system typically requires a minimum of three mechanical endstop switches (one per axis).
Specifications
| Item Type | Mechanical Endstop Limit Switch |
| Wire Gauge | 22AWG copper core |
| Rated Current | Up to 2A |
| Rated Voltage | Up to 300V |
| Max Insulation Temp | 80°C |
| Cable Length | 70 cm (~27.5 in) |
| Module Size | 32 × 10 mm |
| Assembly Required | No |
| Compatible Boards | RAMPS 1.4, Mega2560, RepRap boards |
| Country of Origin | Made in China |
Package Contents
- 3, 6, or 9 × Mechanical Endstop Limit Switch Module with Cable (select your quantity above)
