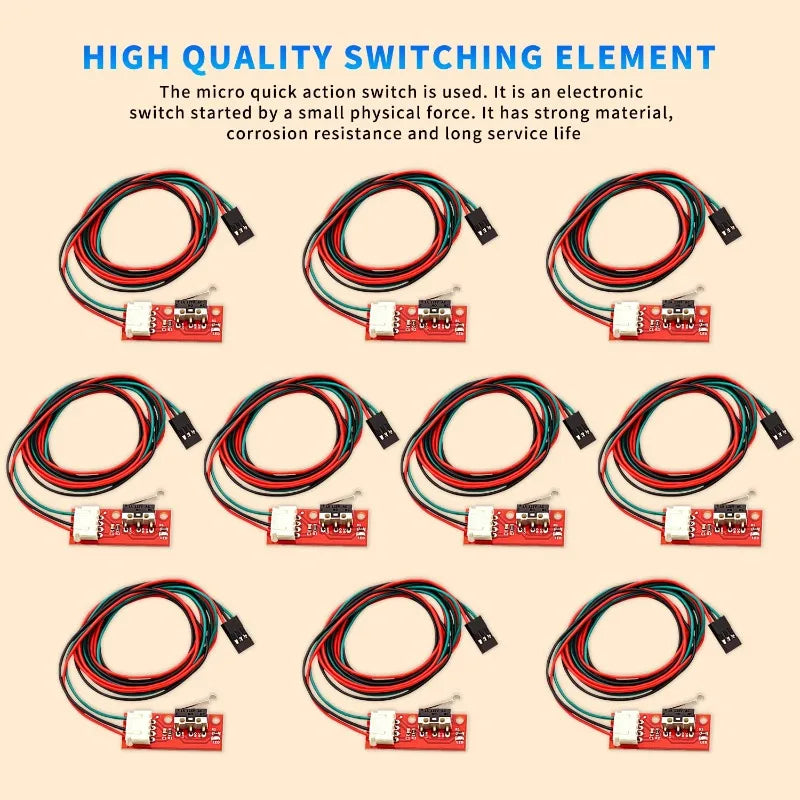

Keep your 3D printer or CNC machine running with precision using these Mechanical Endstop Limit Switch Modules. This value pack of 10 includes pre-wired 3-pin cables, making installation fast and straightforward — no soldering required. Compatible with RAMPS 1.4 control boards, Mega2560, and other popular RepRap-based boards.
Key Features

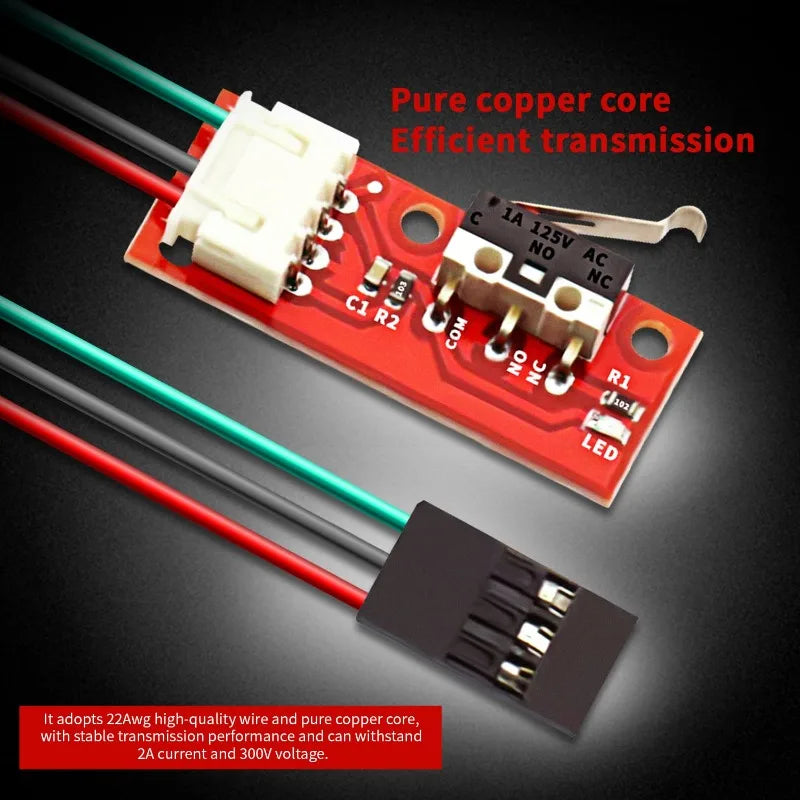

- High-Quality Construction: Thick internal copper core handles up to 2A current and 300V voltage. Insulating layer rated up to 80°C for reliable performance.
- Plug-and-Play Design: One-piece plug construction is easy to install, durable, and simple to connect or disconnect — no snapping or hassle.
-
Clear Color-Coded Wiring:
- 🔴 Red wire: VCC (RAMPS +)
- ⚫ Black wire: GND (RAMPS –)
- 🟢 Green wire: SIGNAL (RAMPS S)
- Wide Compatibility: Designed for RepRap 3D printers, CNC machines, RAMPS 1.4 boards, and other popular RepRap controller boards.
- Generous Cable Length: Each module comes with a 70 cm (approximately 27.5 inches) 3-pin cable — plenty of reach for most printer builds.
Specifications
| Quantity | 10 x Mechanical Endstop Switch Modules |
| Cable Length | 70 cm per cable |

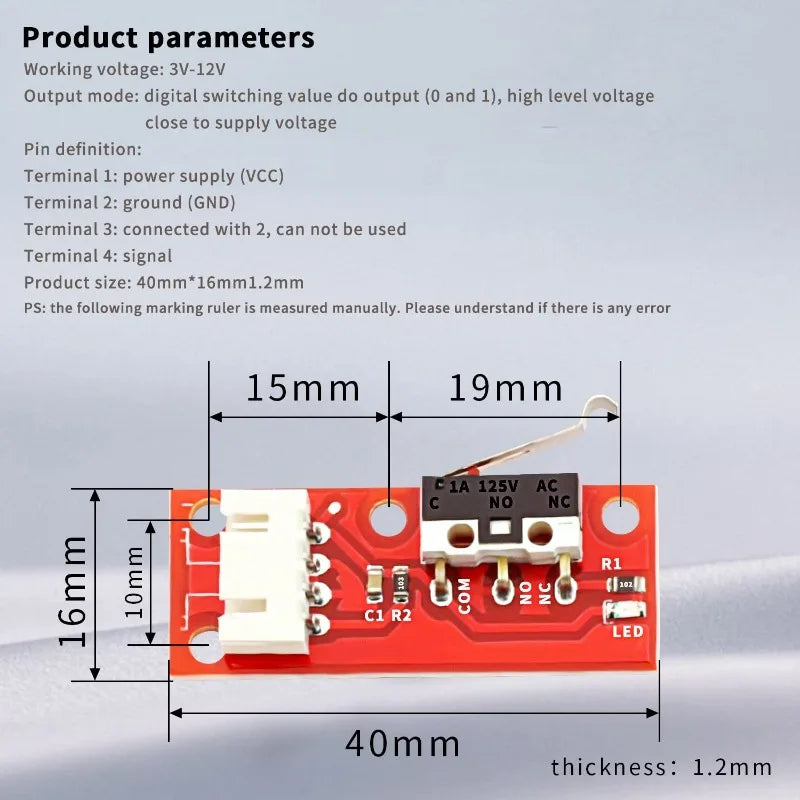

| Switch Size | 32 x 10 mm |
| Max Current | 2A |
| Max Voltage | 300V |
| Max Insulation Temp | 80°C |
| Connector | 3-Pin plug |
| Compatible Boards | RAMPS 1.4, Mega2560, RepRap boards |
| Country of Origin | Made in Mainland China |
What's in the Box

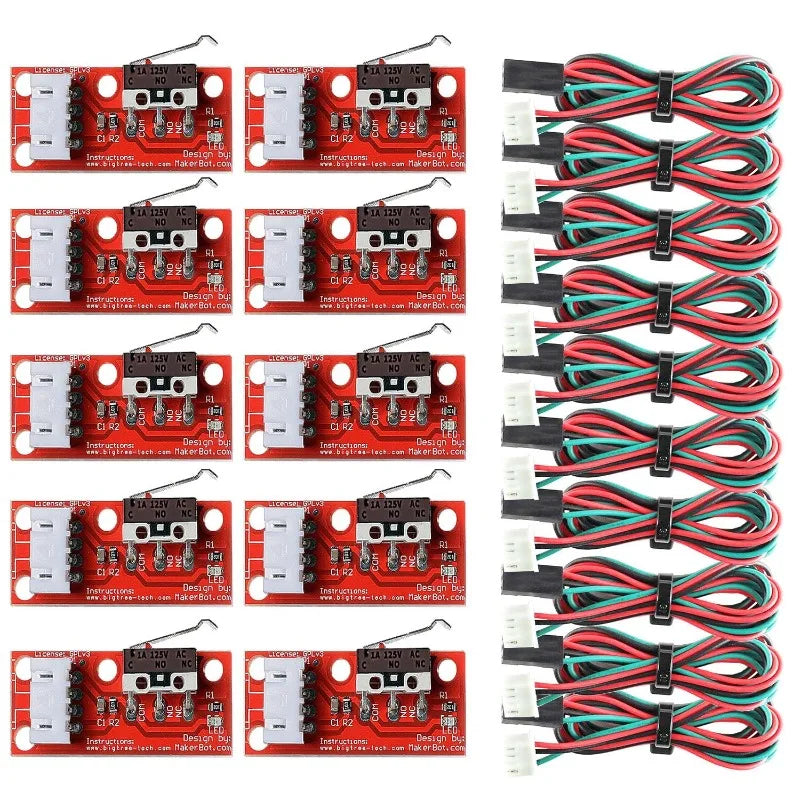

- 10 x Mechanical Endstop Switch Modules
- 10 x 3-Pin 70 cm Cables
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: Are these mechanical endstop limit switches compatible with RAMPS 1.4 and Mega2560 boards?
A: Yes! These mechanical endstop limit switch modules are specifically designed for RAMPS 1.4 and Mega2560 control boards, as well as other popular RepRap 3D printer boards. The pre-wired 3-pin connector plugs directly into the endstop ports on your RAMPS 1.4 board without any modification.
Q: How do I wire the 3-pin cable to my 3D printer's control board?
A: The color-coded wiring makes it simple — connect the Red wire to VCC (+), the Black wire to GND (–), and the Green wire to SIGNAL (S) on your RAMPS 1.4 or compatible board. Under standard configurations, at least three mechanical endstop switches should be connected to define the X, Y, and Z axes.
Q: What is the cable length included with each mechanical endstop switch module?
A: Each of the 10 mechanical endstop switch modules comes with a 70 cm (approximately 27.5 inch) 3-pin cable, providing ample length for most standard 3D printer frame sizes and routing configurations.
Q: Can these limit switches be used for CNC machines as well as 3D printers?
A: Absolutely. These mechanical endstop limit switch modules are suitable for both RepRap 3D printers and CNC machines that use compatible control boards. Their durable construction and straightforward wiring make them a versatile choice for various DIY electronics and fabrication projects.
