Mesh Node T114 — LoRa & Bluetooth 5.0 Development Board

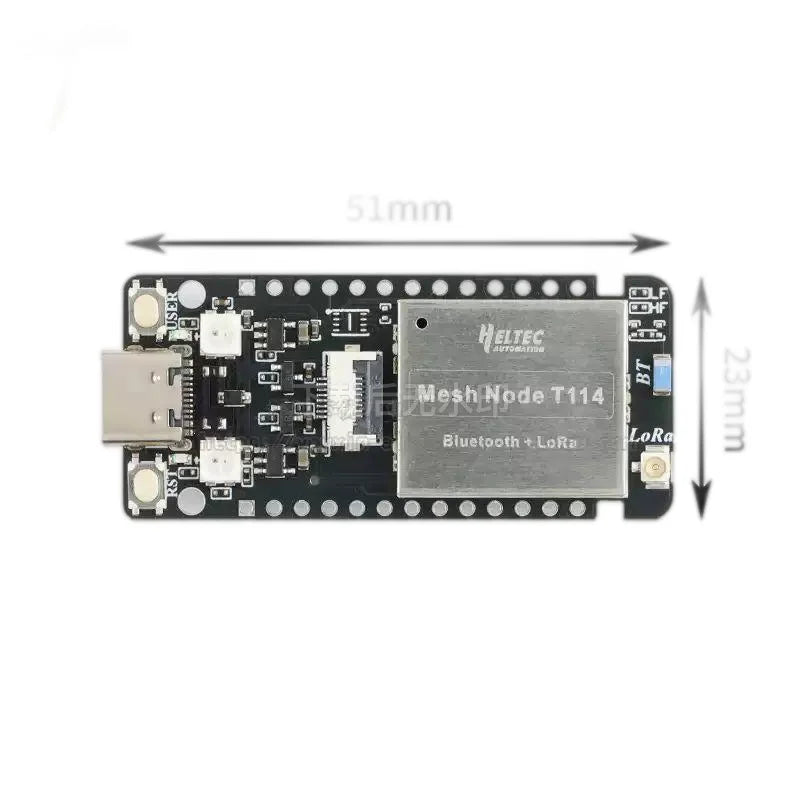

The Mesh Node T114 is a compact, ultra-low-power development board combining the nRF52840 microcontroller and SX1262 LoRa chip to deliver powerful long-range wireless communication alongside Bluetooth 5.0 and Bluetooth Mesh. Ideal for IoT projects, Meshtastic networks, LoRaWAN deployments, and remote sensor applications, this board packs an impressive feature set into a 50.80 × 22.86 mm footprint. Made in Mainland China.

Key Features

• Dual Wireless: LoRa (SX1262) + Bluetooth 5.0 / Bluetooth Mesh (nRF52840)
• Ultra-Low Power: Deep sleep current as low as ~11 µA — perfect for battery-powered deployments
• 1.14" TFT-LCD Display (optional): 135(H) × 240(V) resolution, 262K colors
• Versatile Power Inputs: 5V USB (Type-C), dual 1.25mm LiPo battery connectors, dual 1.25mm solar panel connectors
• GNSS Expandable: 8×1.25mm GPS module connector for the optional L76K multi-constellation GNSS module
• Rich Peripherals: USB 2.0, 4×SPI, 2×TWI, 2×UART, 4×PWM, QSPI, I2S, PDM, QDEC
• Generous Storage: 1MB ROM + 256KB SRAM
• Open Source Ready: Compatible with Heltec nRF52 environment; supports Meshtastic and LoRaWAN

Technical Specifications

Power Consumption at a Glance

• Deep sleep: ~11 µA
• Tracker mode sleep: ~22 µA
• GPS off, TFT off: ~9 mA
• GPS off, TFT on: ~20 mA
• GPS on, TFT on: ~51 mA

Optional L76K GNSS Module

The compatible L76K GNSS module supports GPS, BDS, GLONASS, and QZSS for multi-constellation joint positioning. Features include a built-in low-noise amplifier, acoustic surface filter, AGNSS support for fast initial fix, and internal active antenna detection and protection circuitry — delivering high-precision positioning even in dense urban environments or under weak signal conditions.

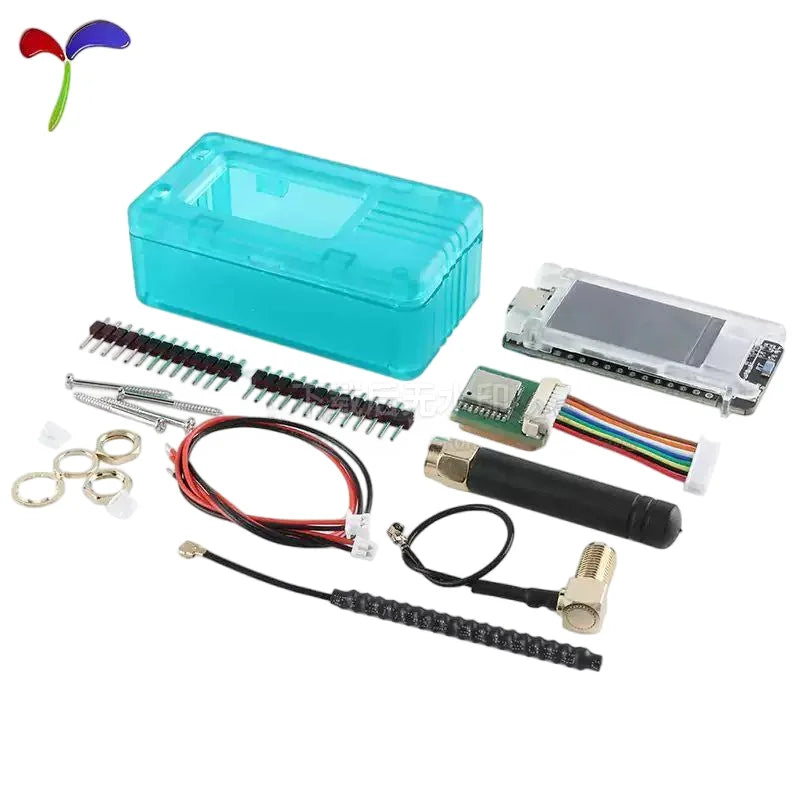

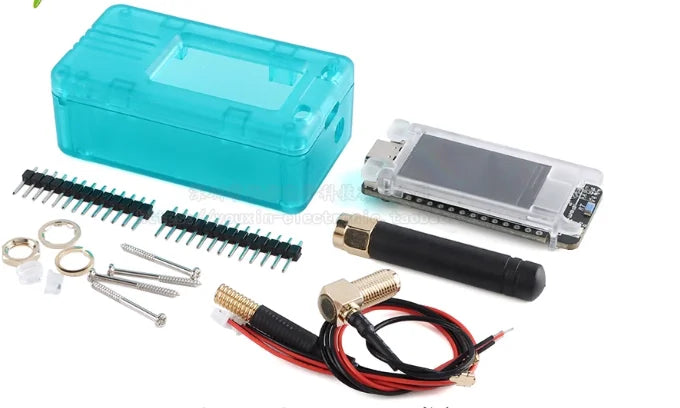

What's in the Box

Package 1: 1× Development Board, 2× Pin Headers, 2× Terminal Wires, 1× Antenna

Package 2: 1× Development Board, 1× Shell, 1× Antenna

Package 3: 1× GPS Module

Note: Battery is NOT included. The board supports a 3–4.2V lithium battery (charged via the on-board circuit).

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What programming environment does the Mesh Node T114 nRF52840 support?

A: The Mesh Node T114 uses the Heltec nRF52 development environment and library. It is fully compatible with LoRa and LoRaWAN development workflows and supports popular open-source projects such as Meshtastic, making it a flexible choice for mesh networking enthusiasts and IoT developers.

Q: Can the Mesh Node T114 run on solar power or battery?

A: Yes. The board features dual 1.25mm LiPo battery connectors and dual 1.25mm solar panel connectors, allowing flexible power configurations for off-grid deployments. It accepts a 3–4.2V lithium battery (not included) and can be charged via USB Type-C or a connected solar panel.

Q: What LoRa frequency bands does the SX1262 chip support on this board?

A: The SX1262 LoRa chip on the Mesh Node T114 supports 433–510 MHz and optionally 863–928 MHz frequency bands, with a maximum TX power of 21 ± 1 dBm and a maximum receiving sensitivity of −135 dBm at SF12, BW=125 kHz — providing excellent long-range communication performance.

Q: Is the 1.14-inch TFT-LCD display included with every package?

A: The onboard 1.14-inch TFT-LCD display (135×240 px, 262K colors) is listed as optional and depends on the package or variant selected. Please review the available package options before ordering to confirm which accessories are included.
