Micro Limit Switch – SPDT 3-Pin | 1A 125V | Multiple Actuator Styles

Upgrade your electronics, robotics, or automation projects with this compact and reliable Micro Limit Switch. Rated at 1A / 125V and featuring a Single Pole Double Throw (SPDT) configuration with 3 pins, this momentary push button switch delivers precise, snap-action switching in a small footprint — perfect for tight spaces and sensitive applications.

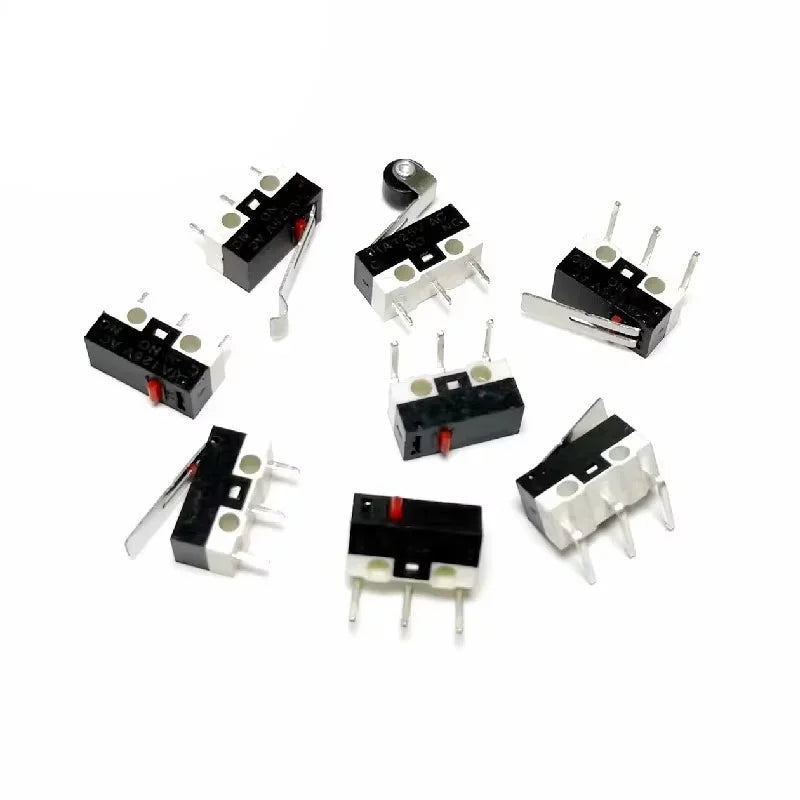

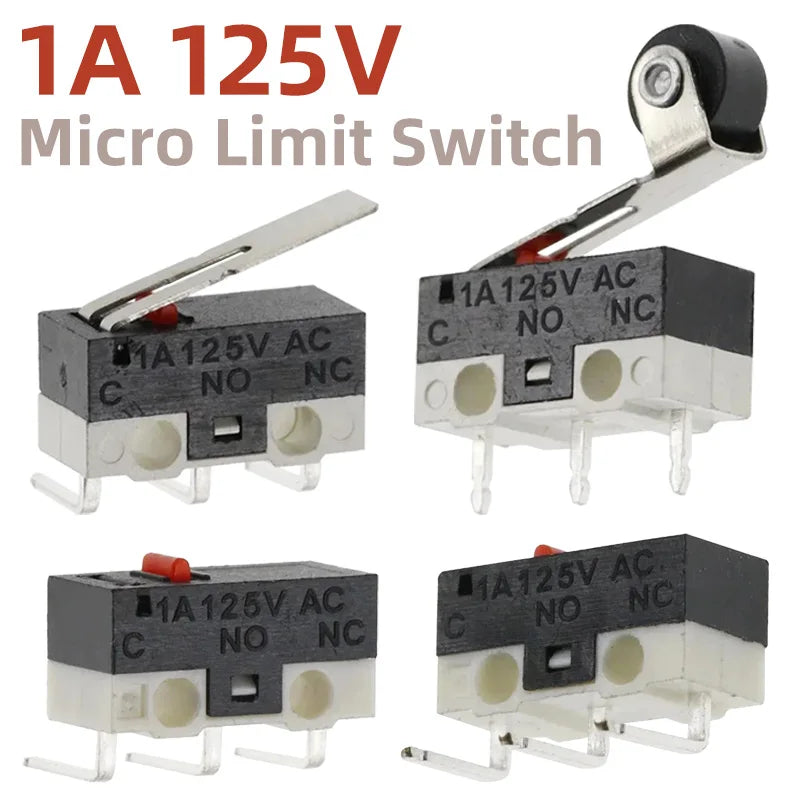

Available in three actuator configurations to suit your project needs:

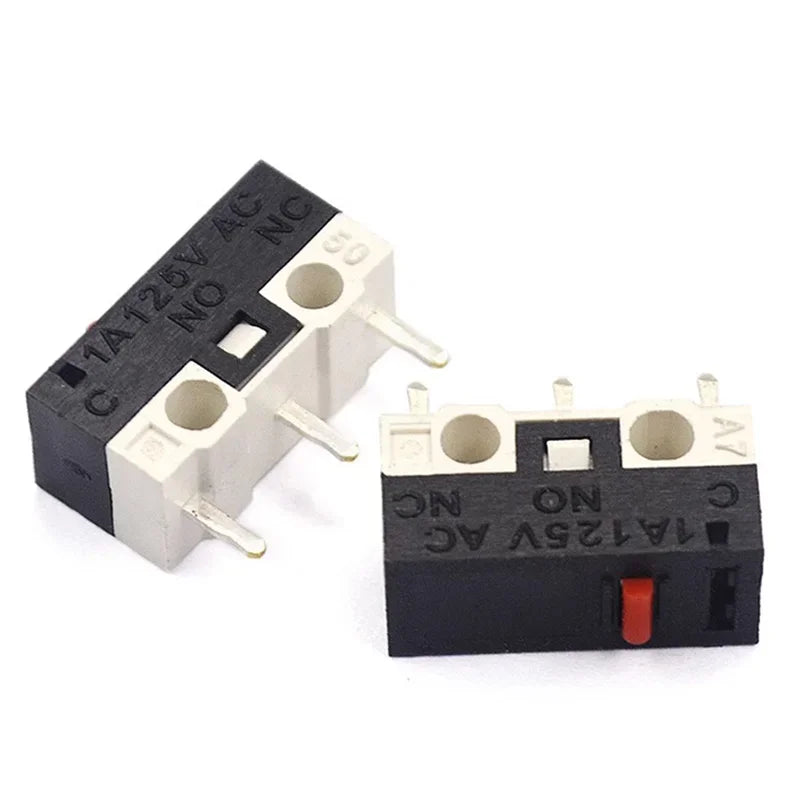

  • Without Handle – Bare button actuator for direct mechanical contact

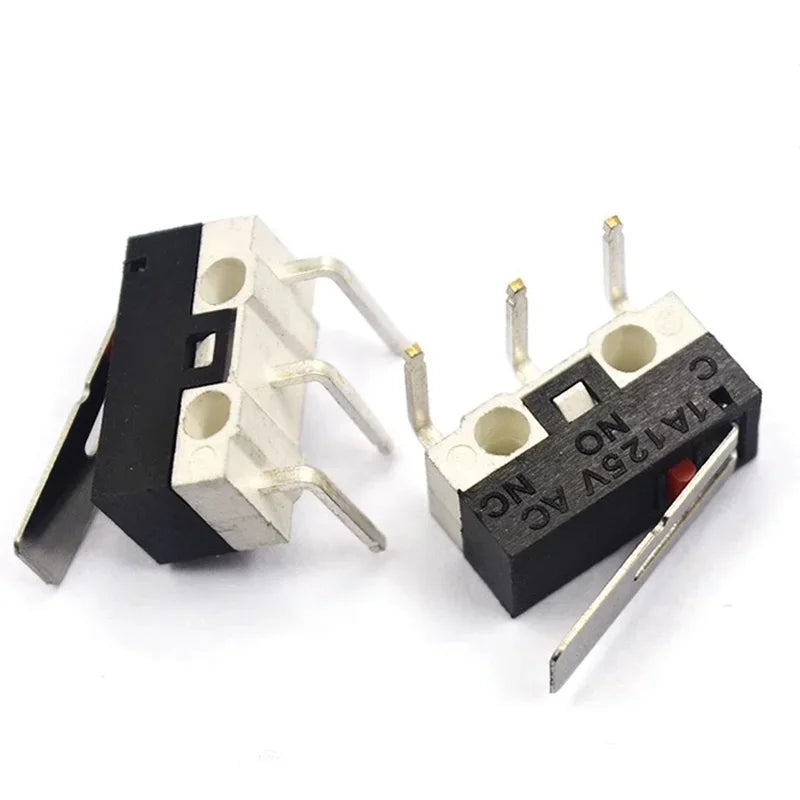

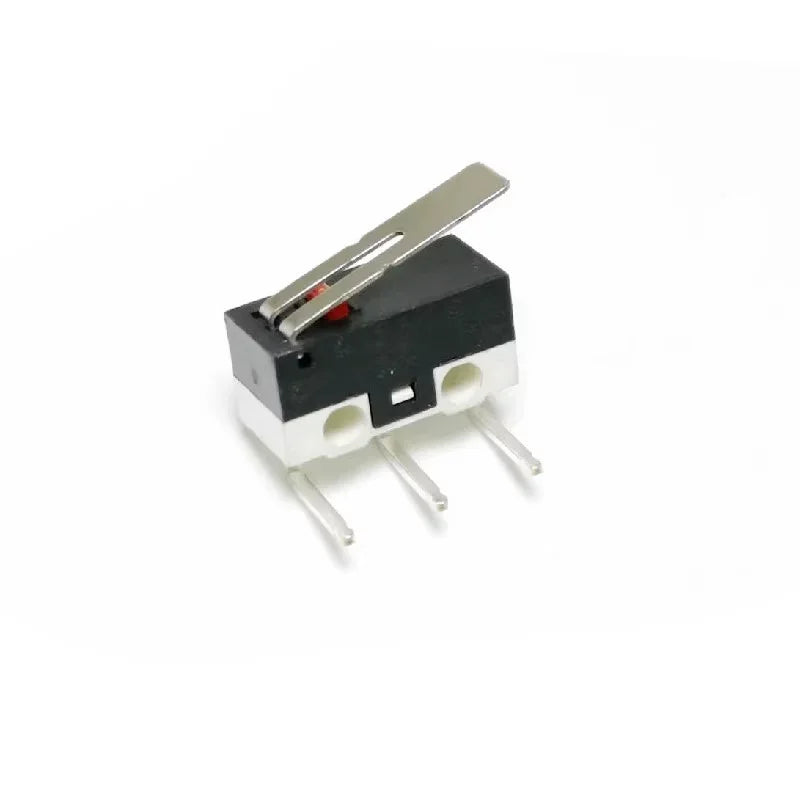

  • With Handle – Extended lever for easier triggering over a wider range of motion

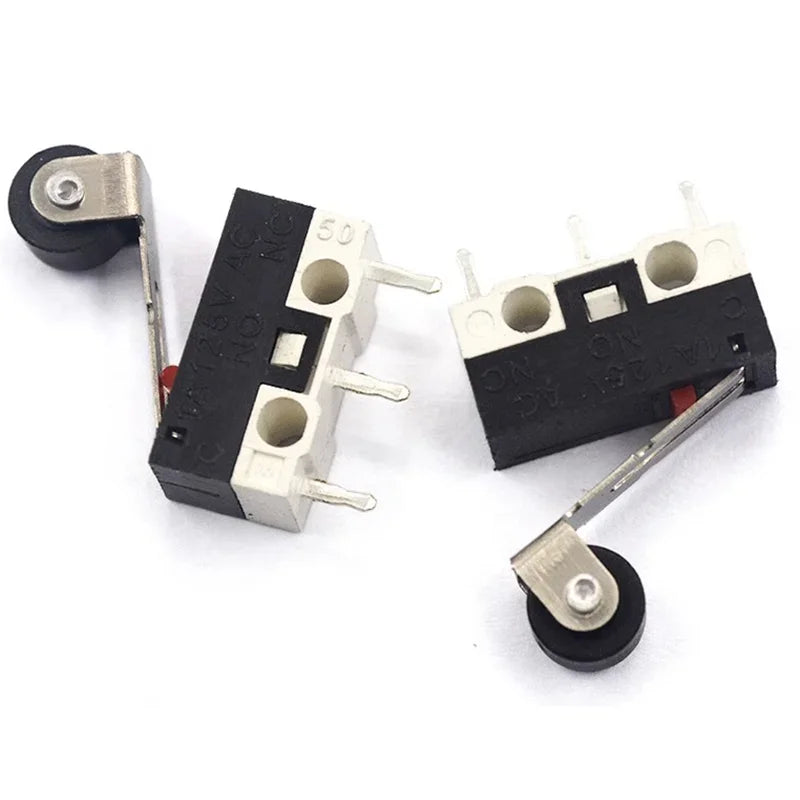

  • With Roller Handle – Roller-tipped lever for smooth, low-friction actuation, ideal for moving parts and conveyors

Key Features

  • Rating: 1A, 125V AC
  • Switch Type: SPDT (Single Pole Double Throw) Micro Switch
  • Terminals: 3-Pin (Common, Normally Open, Normally Closed)
  • Actuation: Momentary push button (snap action)
  • Material: Durable alloy construction for long service life
  • Voltage Classification: Low voltage — below 50V AC or 75V DC (EU LVD compliant)
  • High-Concern Chemicals: None
  • Made in Mainland China

Ideal Applications

  • DIY electronics and hobby circuits
  • 3D printers and CNC machines (end-stop switches)
  • Robotics and automation systems
  • Appliance door sensing and position detection
  • Mouse click mechanisms and small device controls
  • Industrial control panels and conveyor systems

Package Includes

  • 1x Micro Limit Switch (choose your actuator style: No Handle / With Handle / With Roller Handle)

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What is the difference between the three micro limit switch variants?

A: The Without Handle version has a bare button actuator for direct contact. The With Handle version includes an extended lever that allows actuation over a wider arc of motion. The With Roller Handle version features a roller-tipped lever that reduces friction and wear, making it ideal for moving or sliding components such as conveyor belts or 3D printer axes.

Q: Is this micro limit switch suitable for a 3D printer end-stop?

A: Yes! This SPDT 3-pin micro switch is one of the most popular choices for 3D printer end-stops and CNC homing switches. Its compact size, snap-action response, and normally open/normally closed terminals make it straightforward to wire into any control board.

Q: What does SPDT mean and which pins should I use?

A: SPDT stands for Single Pole Double Throw. The switch has three pins: COM (Common), NO (Normally Open), and NC (Normally Closed). Use COM + NO for a circuit that closes when the button is pressed, or COM + NC for a circuit that opens when the button is pressed.

Q: What is the operating voltage and current rating?

A: This micro limit switch is rated at 1A at 125V AC. It falls under the EU Low Voltage Directive classification (below 50V AC or 75V DC for low-voltage use), making it suitable for a wide range of signal and low-power switching applications.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
