Micro Limit Switch SPDT Snap Action Tact Switch 10/50/100 Pack

Micro Limit Switch with SPDT Snap Action – Reliable On/Off Control

Upgrade your home appliances, automation projects, and DIY electronics with these precision-engineered Micro Limit Switches. Featuring a SPDT (Single Pole Double Throw) snap-action mechanism, these compact tact switches deliver consistent, fast, and dependable switching performance every single time. Available in convenient packs of 10, 50, or 100 — perfect for hobbyists, engineers, and makers alike.

Crafted from high-quality plastic with no high-concern chemicals, these switches are designed to be safe and eco-friendly, giving you peace of mind whether you're wiring them into household appliances or custom electronic builds.

Made in Mainland China.

Key Features

• SPDT Snap-Action Design: 1NC + 1NO (Form C) contact configuration for versatile circuit control
• Self-Resetting Mechanism: Automatically returns to its original position after actuation
• Rated Voltage: AC 250V — suitable for a wide range of home appliance and electronics applications
• Rated Current: 5A — handles common load requirements with ease
• EU LVD Compliant: Operates safely at low voltage (below 50Vac or 75Vdc)

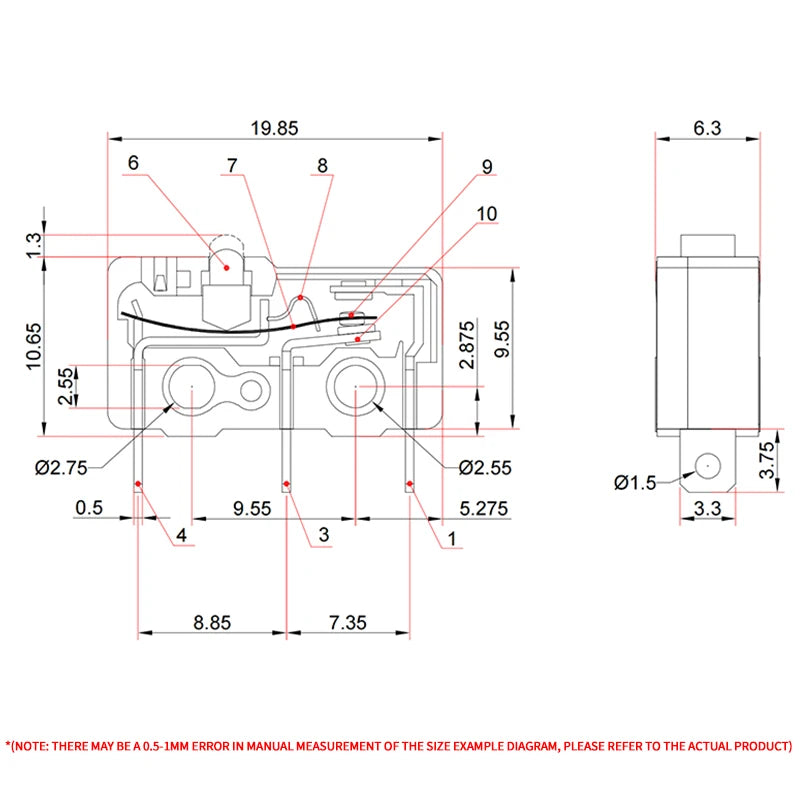

• Compact Form Factor: Dimensions of just 19.85 × 10.65 × 6.3 mm — fits into tight spaces effortlessly
• No High-Concern Chemicals: Safe for use in consumer and household environments

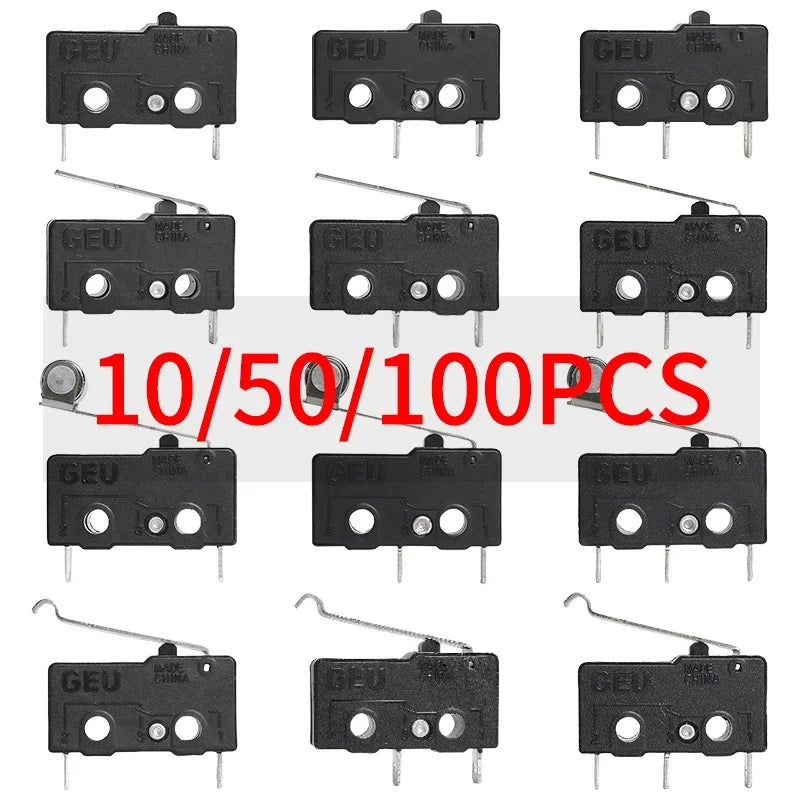

• Multi-Pack Options: Choose from 10, 50, or 100 pieces to match your project scale

Technical Specifications

Ideal Applications

• Home appliance on/off control circuits
• 3D printers and CNC machine end-stops
• Robotics and automation systems
• DIY electronics and maker projects
• Travel limit detection in mechanical assemblies
• Prototyping and educational electronics

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What does SPDT mean on a micro limit switch?

A: SPDT stands for Single Pole Double Throw. It means the switch has one common terminal and two output terminals — one Normally Open (NO) and one Normally Closed (NC). This gives you flexible wiring options, allowing the switch to either complete or break a circuit when actuated. The Form C configuration in these micro limit switches makes them highly versatile for a variety of on/off control applications.

Q: What is the rated voltage and current for these micro limit switches?

A: These micro limit switches are rated for AC 250V and 5A, making them suitable for a wide range of home appliance and electronics projects. They also comply with EU LVD standards for low-voltage applications (below 50Vac or 75Vdc).

Q: Are these switches self-resetting, and how do they work?

A: Yes, these switches feature a self-resetting snap-action mechanism. When the actuator is pressed and then released, the switch automatically returns to its original position. This snap-action design ensures quick, positive switching with minimal operating force required (400 ± 50 gf).

Q: Which pack size should I choose?

A: If you're working on a small project or want to test compatibility, the 10-piece pack is ideal. The 50-piece pack suits medium-scale projects, while the 100-piece pack offers the best value for larger builds, production runs, or keeping spares on hand for future repairs and prototyping.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
