Micro Limit Switch V-15 Series Silver Contact 10A 250V Self-Reset

Micro Limit Switch V-15 Series Silver Contact 10A 250V Self-Reset

$2.63 $3.15
Color
Set Type1NO 1NC

Micro Limit Switch – V-15 Series with Silver Contact

This compact and reliable micro limit switch is engineered for precise travel control and position detection in a wide range of electrical and mechanical applications. Featuring durable silver contacts and a self-reset working mode, the V-15 series delivers consistent, dependable performance in both industrial and DIY projects.

Key Specifications

  • Models Available: V-15, V-151, V-152, V-153, V-154, V-155, V-156
  • Maximum Working Current: 10A
  • Maximum Operating Voltage: 250V AC
  • Contact Material: Silver Contact
  • Working Mode: Self-Reset

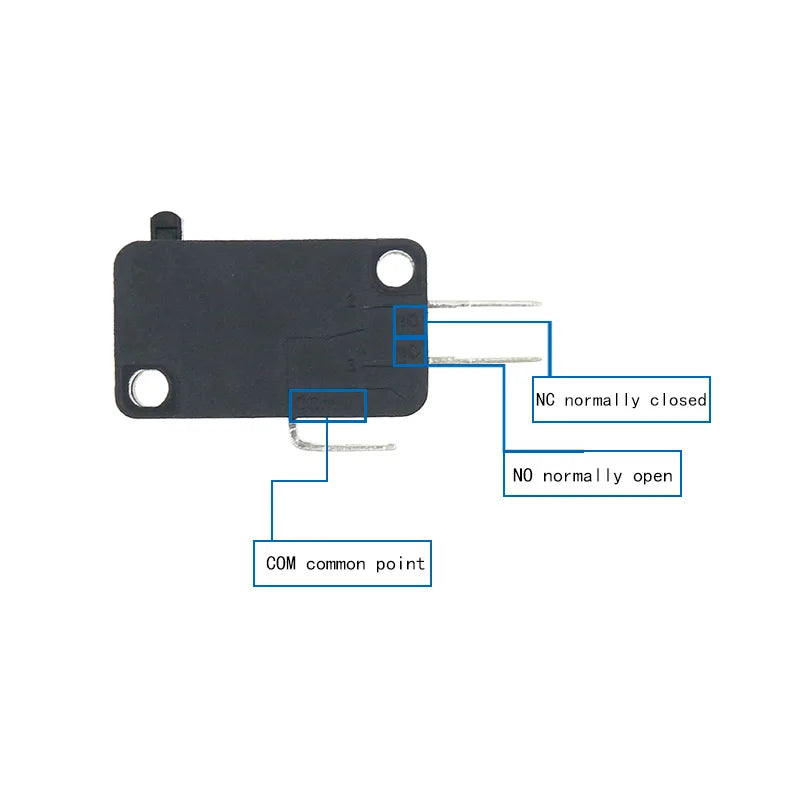

  • Contact Connection Form: Normally Open & Normally Closed (1C)
  • Shell Material: High-Quality Flame Retardant Plastic
  • Weight: 50g

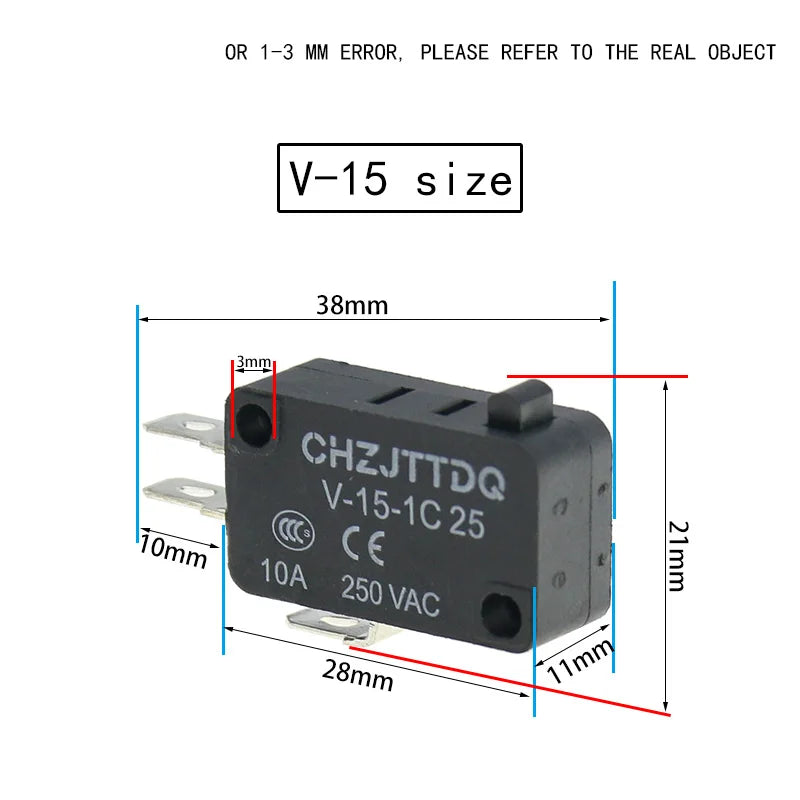

  • Dimensions: 5 × 3 × 3 cm
  • Quantity: 1 piece per order
  • Country of Origin: Made in China

Why Choose the V-15 Micro Limit Switch?

  • Silver Contacts: Ensures low contact resistance and long service life, even under frequent switching cycles.
  • Self-Reset Design: Automatically returns to its original state after actuation — no manual reset required.
  • Normally Open & Closed Terminals: Versatile wiring options to suit a variety of circuit configurations.
  • Flame Retardant Housing: High-quality shell material for added safety in demanding environments.
  • Wide Compatibility: Suitable for CNC machines, 3D printers, automation equipment, conveyor systems, and home appliances.
  • Compact Form Factor: Small size makes it easy to integrate into tight spaces and enclosures.

Common Applications

  • CNC router and 3D printer homing/end-stop switches
  • Industrial automation and conveyor belt position sensing
  • Home appliance controls and door safety interlocks
  • Robotics and motion control systems
  • DIY electronics and prototyping projects

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What is the difference between the V-15, V-151, V-152, V-153, V-154, V-155, and V-156 micro limit switch models?

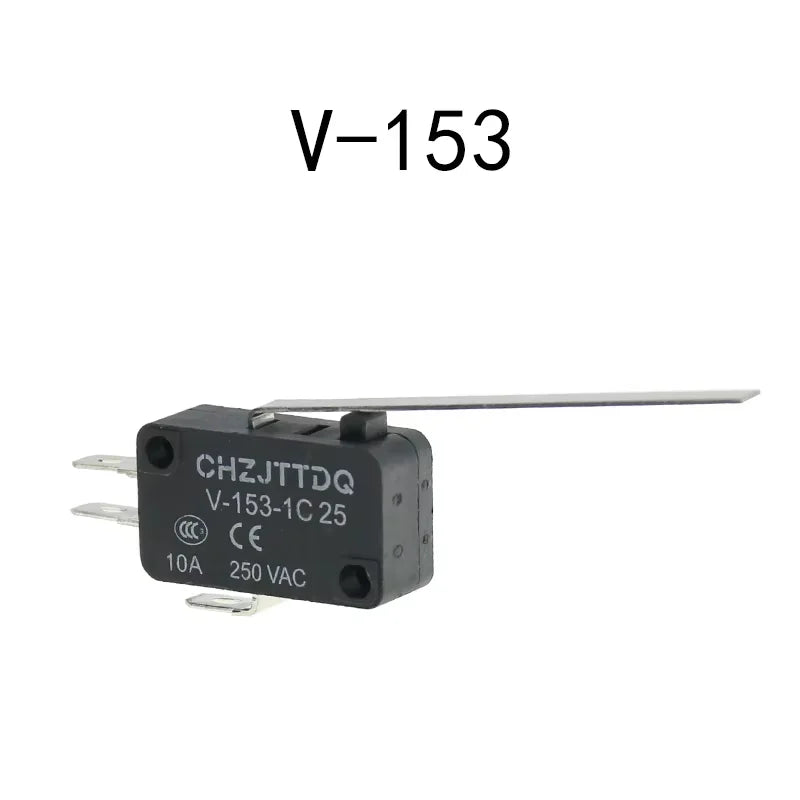

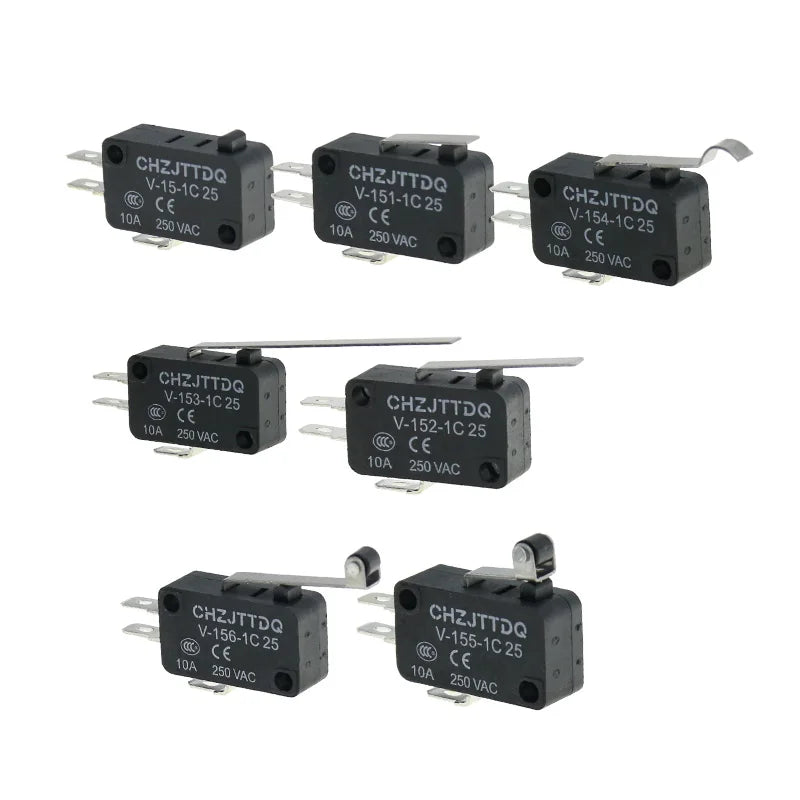

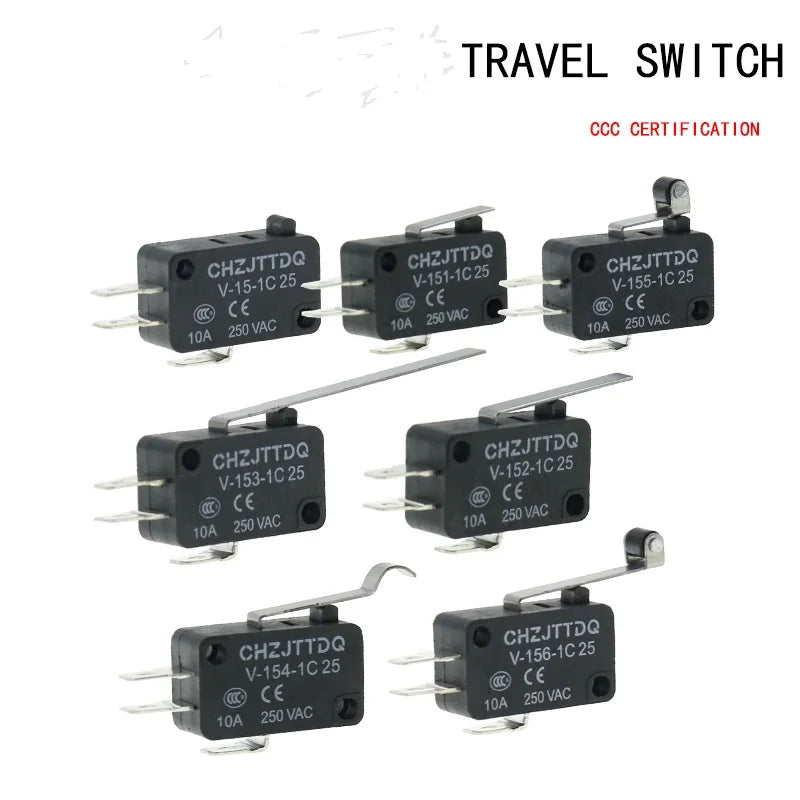

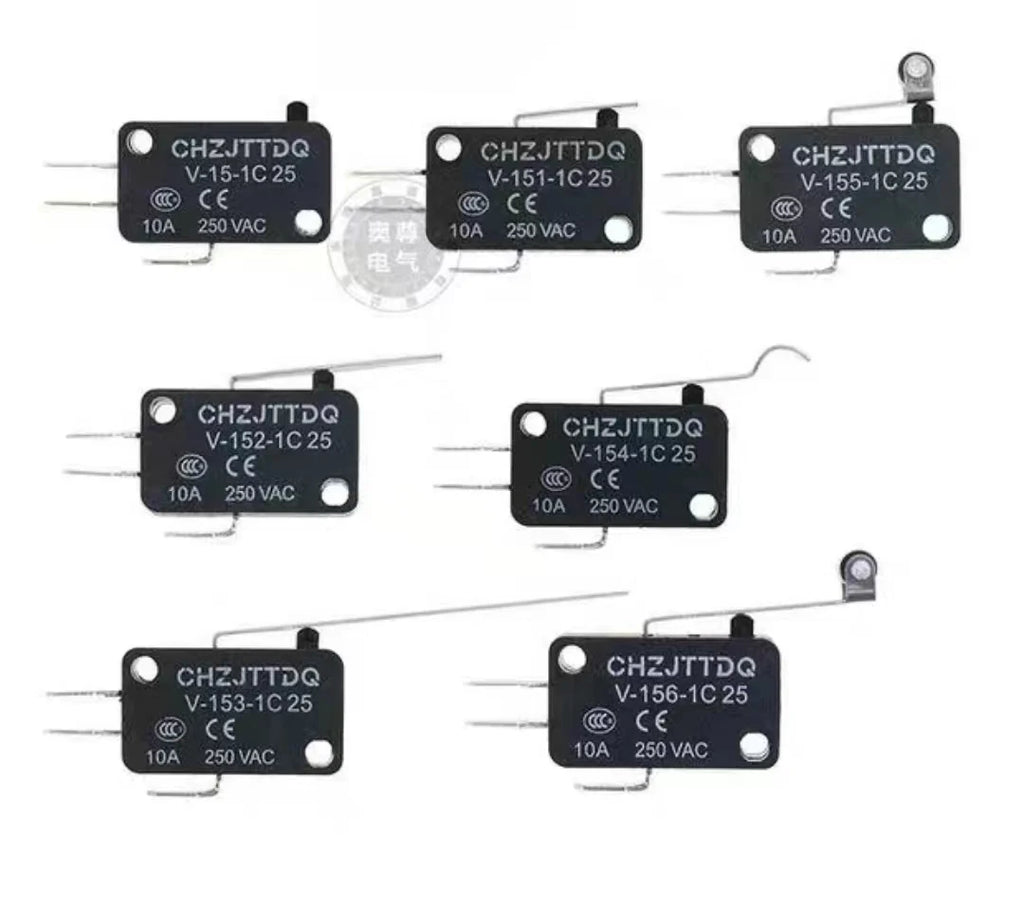

A: The V-15 series models primarily differ in their actuator type (lever arm style and length). The base V-15 uses a standard plunger actuator, while V-151 through V-156 feature different lever configurations (such as roller lever, short lever, and long lever) to accommodate various mounting positions and actuation angles in your application.

Q: Is this micro limit switch suitable for use in 3D printers and CNC machines?

A: Yes, the V-15 series micro limit switch is widely used as an end-stop or homing switch in 3D printers, CNC routers, and laser engravers. Its compact size, self-reset action, and both normally open and normally closed terminals make it an ideal fit for these applications.

Q: What does "self-reset" mean for this limit switch?

A: Self-reset means that once the actuating force is removed, the switch automatically returns to its default (non-actuated) position without any manual intervention. This makes it perfect for repeated-cycle applications where automatic recovery is essential.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
