10 Pcs Mini Micro Limit Switch Roller Lever SPDT Snap Action

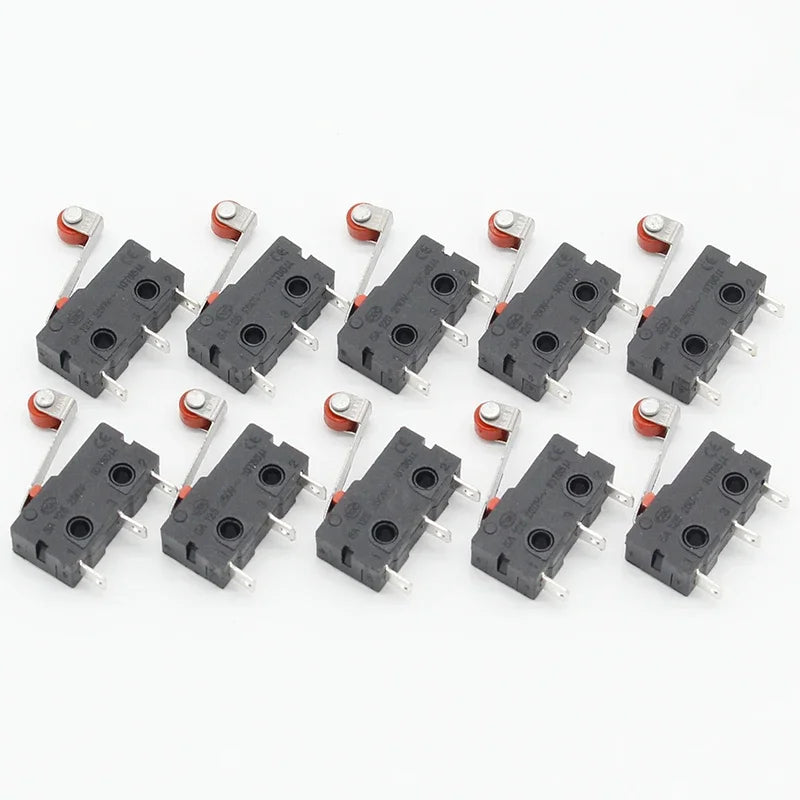

ELEABC KW12-3 Mini Micro Limit Switch – 10-Piece Set

Get reliable, snap-action switching in a compact form factor with this 10-pack of ELEABC KW12-3 Mini Micro Limit Switches. Featuring a roller lever arm and SPDT (Single Pole Double Throw) configuration, these switches deliver fast, precise actuation for a wide range of DIY electronics, automation, and repair projects.

Key Specifications

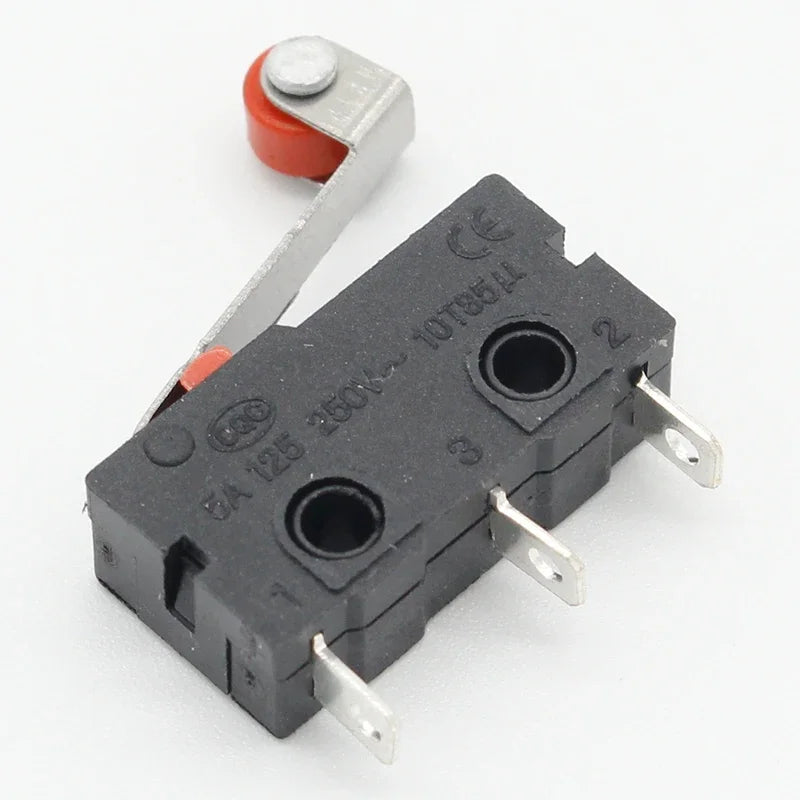

• Model: KW12-3 Micro Roller Lever Arm Limit Switch
• Color: Black

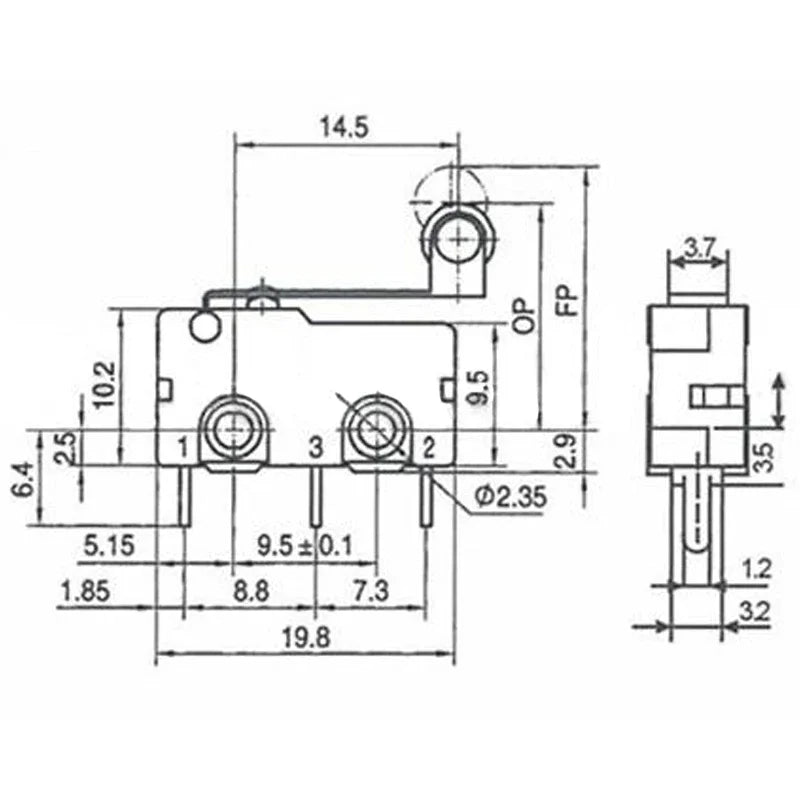

• Dimensions: 20 × 10 × 6 mm (L × W × H)
• Rated Voltage: AC 125V – 250V
• Current Rating: 5A
• EU LVD Voltage: Low voltage – Below 50V AC or 75V DC
• Material: Plastic housing
• Terminals: PCB / Circuit Board compatible
• Certification: CCC certified
• Warranty: 2 Years
• Made in Mainland China

How It Works

These snap-action switches operate via an external mechanical force applied through a roller lever. When force reaches a critical threshold, the internal reed springs into action — making or breaking the circuit almost instantaneously. When the force is released, the reed reverses direction just as quickly. The result is a fast, clean switch operation with minimal travel distance and low actuation force required.

Features

• Compact snap-action SPDT design for quick, reliable switching
• Small contact spacing and short stroke action for precision control

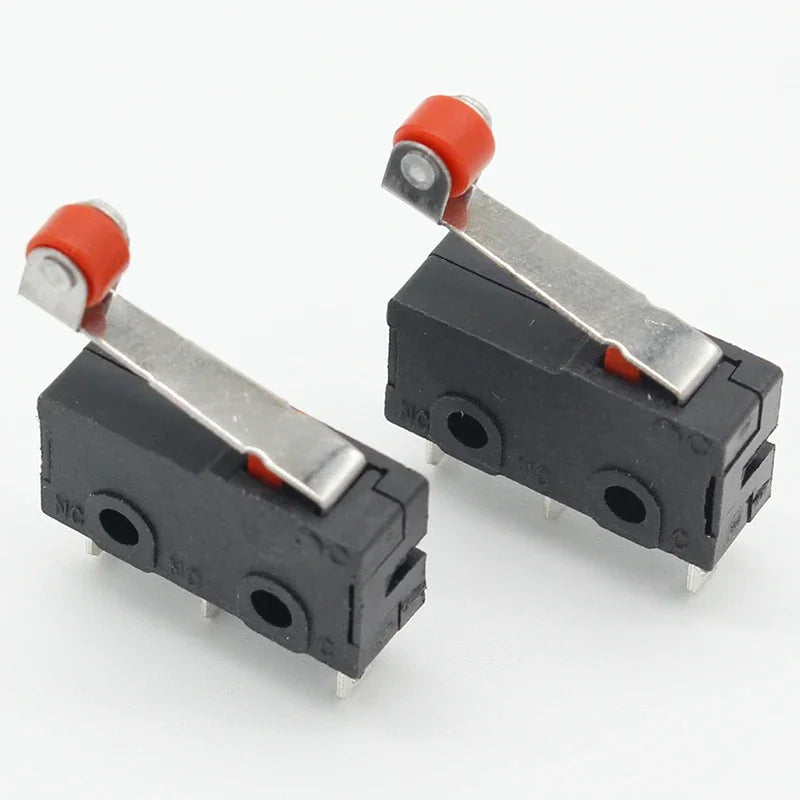

• Roller lever arm allows smooth, consistent actuation

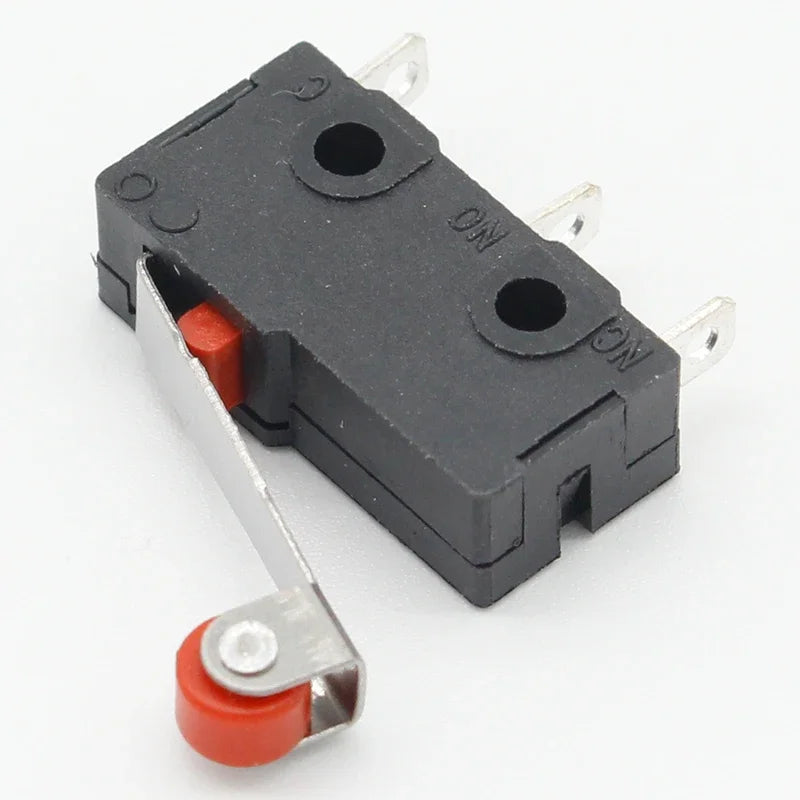

• Normally Open (NO) and Normally Closed (NC) terminals included
• Suitable for PCB / circuit board mounting
• Pack of 10 — great value for prototyping and repairs

Wide Range of Applications

These versatile micro limit switches are used in a broad array of applications, including:

• Computer mouse and peripheral devices
• Automotive electronics
• Communications equipment
• Test instruments
• Gas water heaters and gas burners
• Small home appliances, microwave ovens, and electric rice cookers
• Floating ball support equipment
• Medical equipment
• Building automation systems
• Power tools and electric tools

What's in the Box

• 10 × KW12-3 Micro Roller Lever Arm Normally Open/Close Limit Switch

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What does SPDT mean on these micro limit switches?

A: SPDT stands for Single Pole Double Throw. This means each KW12-3 micro limit switch has one common terminal plus two output terminals — one for Normally Open (NO) and one for Normally Closed (NC) connections — giving you flexibility in how you wire them into your circuit.

Q: Are these micro limit switches compatible with PCB mounting?

A: Yes! The KW12-3 mini micro limit switches feature PCB terminals, making them easy to solder directly onto a circuit board. Their compact 20 × 10 × 6 mm footprint makes them ideal for space-constrained electronics projects.

Q: What voltage and current can these snap action switches handle?

A: Each switch is rated for AC 125V–250V and up to 5A current. They also comply with EU LVD low-voltage directives (below 50V AC or 75V DC), making them suitable for a wide range of household and industrial electronics applications.
