Parking Camera Relay Filter for RCD330G RCD330G Plus Passat
Parking Camera Relay Filter for RCD330G RCD330G Plus Passat
Parking Camera Delay Timer – RCD330G / RCD330G Plus Compatible
Keep your MIB display system running smoothly when reversing. This compact Parking Camera Relay Filter is purpose-built for PQ35/46 platform vehicles — including RCD330G, RCD330G Plus, and Passat (H8WE) without an OPS module — preventing false fault codes and ensuring your rearview camera image displays reliably every time you engage reverse gear.
Why You Need This Relay Filter
On MIB PQ platforms (without OPS), the system expects a continuous camera video signal for at least 8 seconds after switching out of reverse. When your camera is powered solely by the reverse lamp, the signal cuts out the moment the lamp turns off — causing the MIB to log a system fault code. The next time you engage reverse, the screen may fail to display the camera image at all.
This delay timer extends the power supply to your parking camera by 10 seconds after you leave reverse, giving the MIB system exactly what it needs to recognize a healthy camera signal and avoid fault logging. Only the last trigger event is recorded, making operation clean and seamless.
⚠ Important Note: This product is designed to delay the power supply only. It does not resolve screen-rolling issues on the PQ platform MIB reversing image.
Key Features
- ✅ 10-Second Power Delay — Keeps camera signal alive long enough to satisfy MIB system requirements
- ✅ Prevents False Fault Codes — Stops the MIB from misreading a lost signal as a system failure
- ✅ Plug-and-Play Design — Simple inline installation, no PCB or complex wiring required
- ✅ Compact & Lightweight — Measures just 4 × 2 cm and weighs only 18g; fits neatly in the dash
- ✅ Durable Plastic Housing — Lightweight, heat-resistant enclosure suited to in-vehicle environments
- ✅ Compatible with RCD330G & RCD330G Plus — Specifically designed for PQ35/46 MIB systems without OPS
Specifications
| Compatible Systems | PQ35/46 RCD330G, RCD330G Plus (no OPS module) |
| Delay Duration | 10 Seconds |
| Item Type | Cables, Adapters & Sockets |
| Material | Plastic |

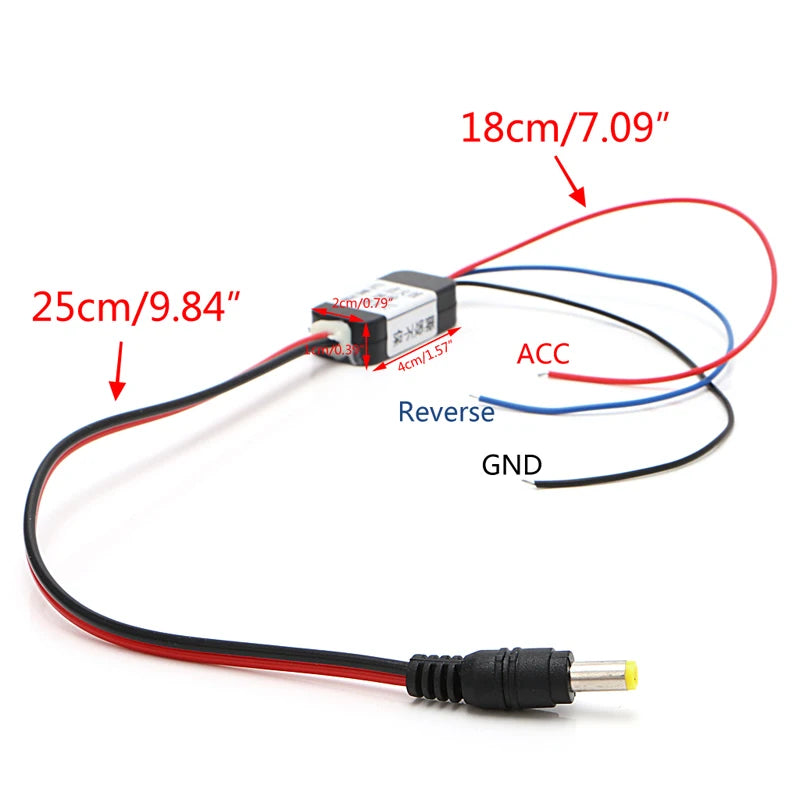

| Dimensions | 4 × 2 cm |
| Weight | 18g |
| Includes PCB | No |
| Package Contents | 1 × Delay Timer |
| Country of Origin | Made in Mainland China |
Please allow 1–3 mm variance due to manual measurement. Monitor color calibration may cause slight differences from actual product color.
Learn more: FuelEconomy.gov driving efficiency guidance
Frequently Asked Questions
Q: Which vehicles and head units is this parking camera relay filter compatible with?
A: This delay timer is specifically designed for PQ35/46 platform vehicles fitted with an RCD330G or RCD330G Plus head unit without an OPS module. Common applications include the Volkswagen Passat (H8WE) and similar MIB-equipped models. Always confirm your head unit model before purchasing.
Q: Will this relay filter fix the screen-rolling issue on my MIB reversing display?
A: No — this product is designed solely to delay the camera power supply by 10 seconds after exiting reverse. It prevents false fault codes caused by an abrupt loss of camera signal, but it does not address screen-rolling issues on the PQ platform MIB reversing image.
Q: How does the 10-second delay timer work in practice?
A: When you shift out of reverse, the delay timer keeps power flowing to your parking camera for an additional 10 seconds. This gives the MIB system time to register a proper signal end rather than interpreting the sudden cutoff as a fault. Only the most recent trigger event is stored, keeping operation clean and glitch-free.
Q: Is installation complicated? Do I need any special tools?
A: Installation is straightforward — this is an inline adapter with no PCB required. Basic automotive wiring knowledge is recommended. The compact 4 × 2 cm form factor makes it easy to tuck away behind the dash without taking up significant space.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
