PCB Pogo Pin Test Clip Fixture | Multi-Pitch 3P–10P

PCB Pogo Pin Test Clip Fixture | Multi-Pitch 3P–10P

$28.74 $34.48
Color

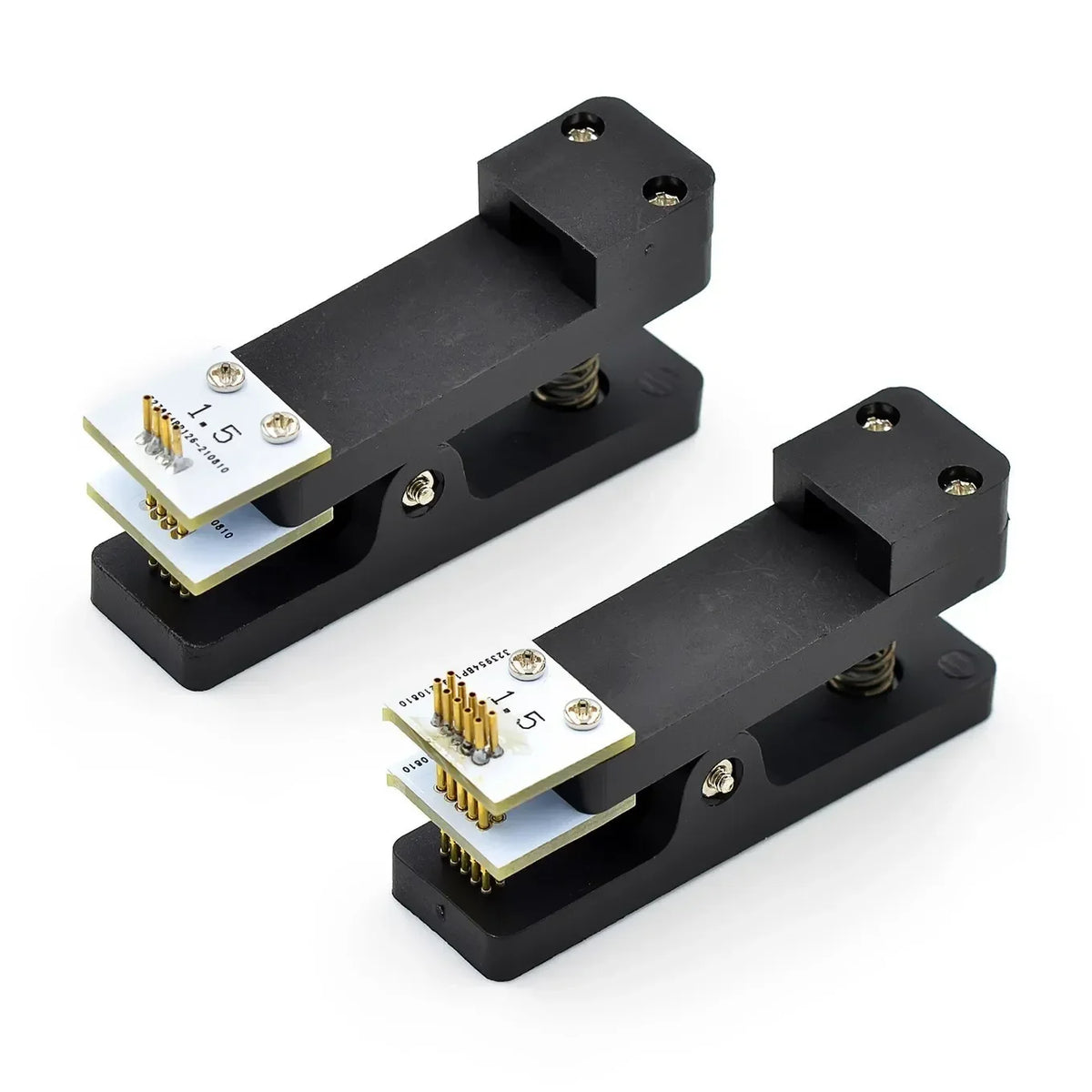

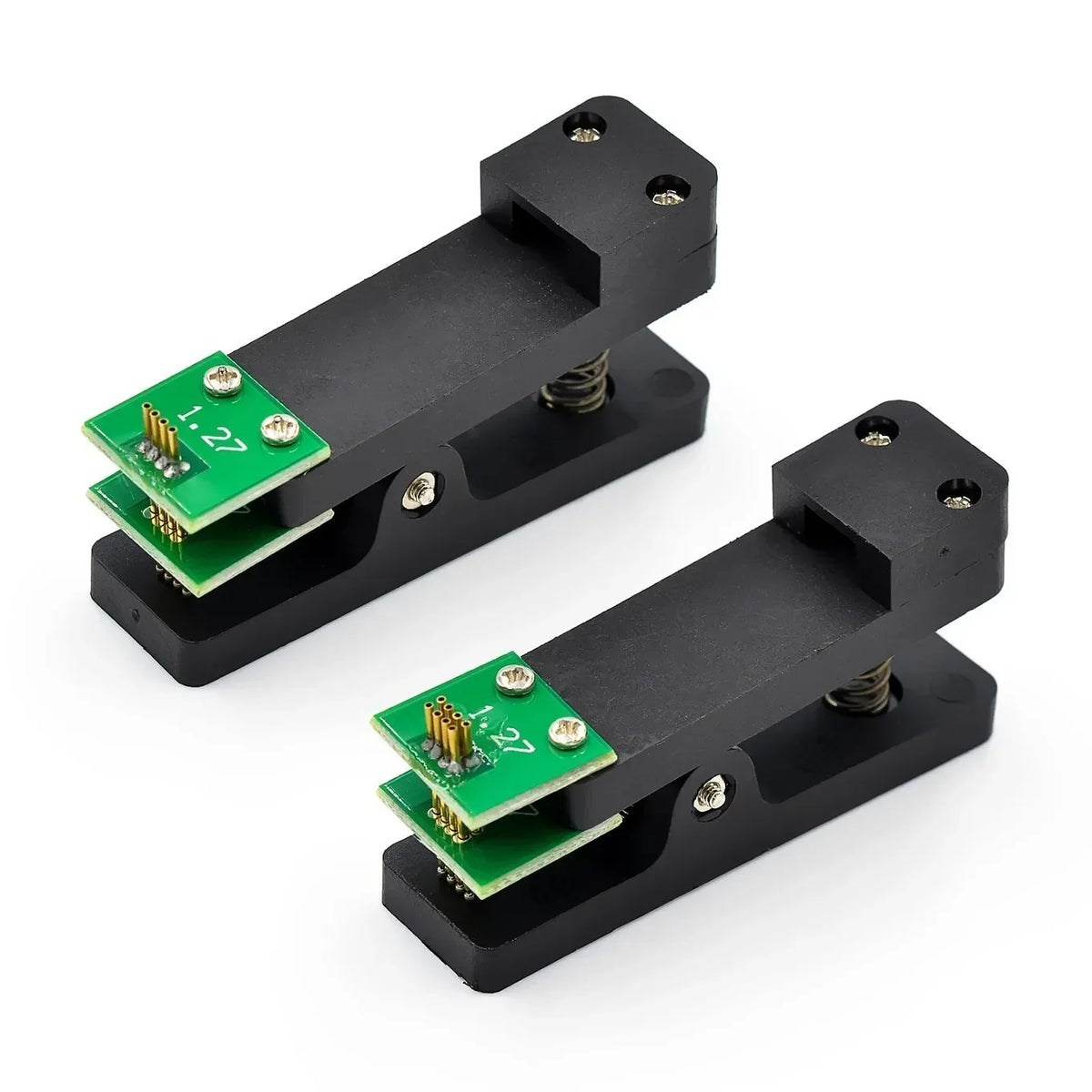

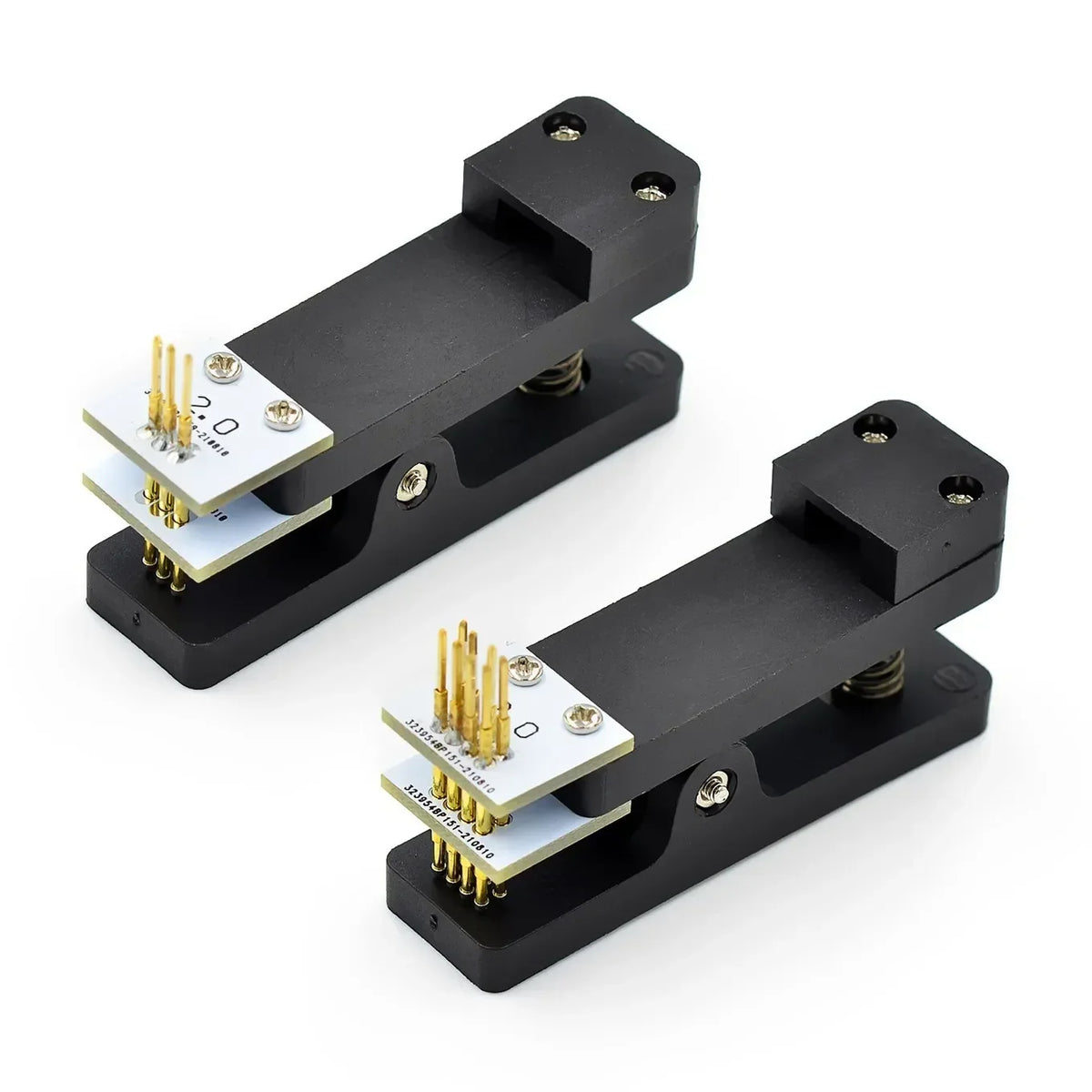

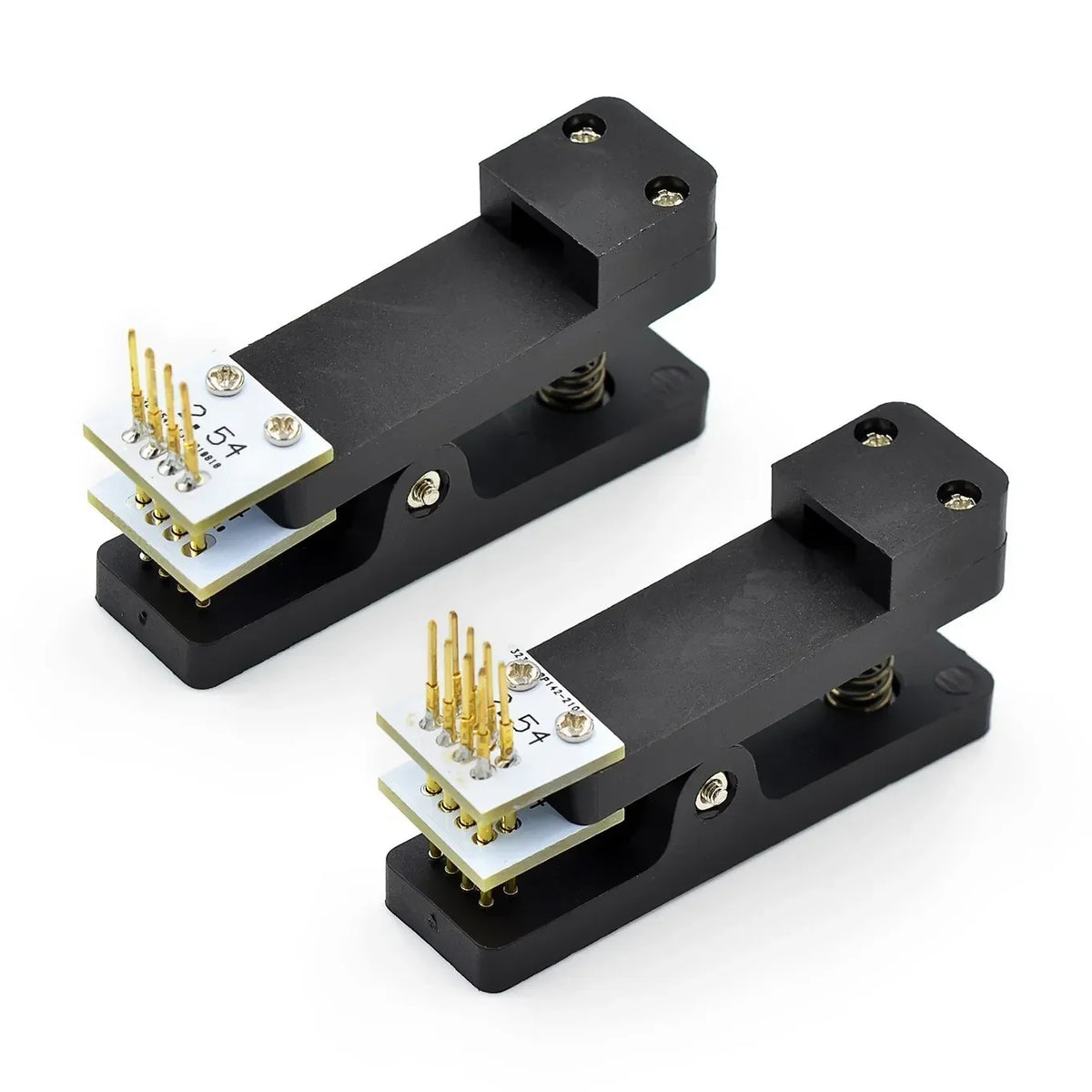

PCB Pogo Pin Test Clip & Programming Fixture

Streamline your circuit board testing and firmware flashing workflow with this versatile PCB Pogo Pin Test Clip Clamp Fixture. Designed for engineers, hobbyists, and electronics technicians, this probe fixture provides a secure, hands-free connection to PCB pads for downloading, programming, and burning firmware — no soldering required.

Key Features

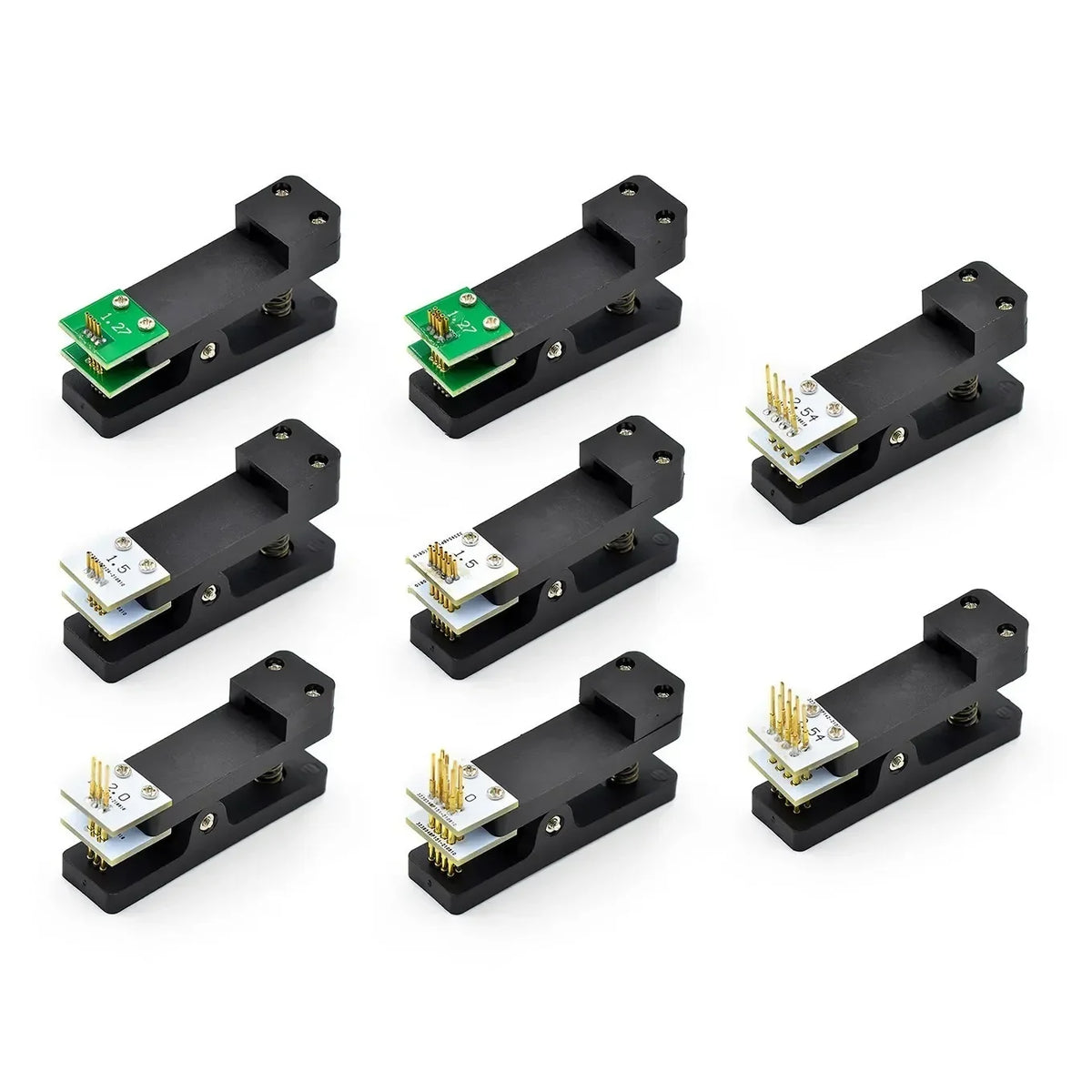

  • Wide Pitch Compatibility: Supports multiple pitch sizes — 2.54mm, 2.0mm, 1.5mm, 1.27mm, and 1.25mm (100mil / 50mil) — making it suitable for a broad range of PCB layouts.
  • Multiple Pin Configurations: Available in 3P, 4P, 5P, 6P, 7P, 8P, 9P, and 10P variants to match your specific connector footprint.
  • Spring-Loaded Pogo Pins: Precision spring-loaded contacts ensure reliable, low-resistance electrical connection on every use without damaging PCB pads.
  • Clamp & Clip Design: The integrated clamp fixture holds itself firmly in place on the board, freeing both hands for programming tasks.
  • Firmware Programming Ready: Ideal for ISP, UART, SWD, JTAG, and other common programming interfaces — simply clip on and start flashing.
  • Durable Construction: Built with high-quality materials for repeated use in prototyping, production testing, and development environments.
  • New Condition: Ships brand new and ready to use straight out of the box.

Specifications

Pitch Sizes 2.54mm / 2.0mm / 1.5mm / 1.27mm / 1.25mm (100mil / 50mil)
Pin Count Options 3P, 4P, 5P, 6P, 7P, 8P, 9P, 10P
Contact Type Spring-Loaded Pogo Pin
Use Case PCB Programming, Firmware Download, Burn, Testing
Condition New
Country of Origin Made in China

Who Is This For?

Whether you're a firmware developer flashing microcontrollers, a QA engineer running board-level tests, or a maker experimenting with embedded systems, this PCB pogo pin test clip fixture is an essential bench tool that saves time and eliminates the need for temporary solder joints during programming.

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What pitch sizes does this PCB pogo pin test clip support?

A: This fixture supports 2.54mm, 2.0mm, 1.5mm, 1.27mm, and 1.25mm pitches (100mil and 50mil), covering the most common PCB header and pad spacings used in modern electronics design.

Q: Can I use this pogo pin fixture for UART, JTAG, or SWD programming interfaces?

A: Yes. The PCB clip fixture is compatible with a wide range of programming and debugging interfaces including UART, SWD, JTAG, ISP, and more — as long as the pin count and pitch match your target PCB.

Q: Do the pogo pins damage PCB pads with repeated use?

A: No. The spring-loaded pogo pins are designed to make consistent, gentle contact with PCB pads, minimizing surface wear and allowing reliable connections across hundreds of test and programming cycles.

Q: How do I choose the right pin count and pitch for my board?

A: Measure the spacing between your PCB pads (the pitch) and count the number of programming or test points you need to contact. Match those values to the corresponding variant (e.g., 5P 2.54mm) when selecting your fixture.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
