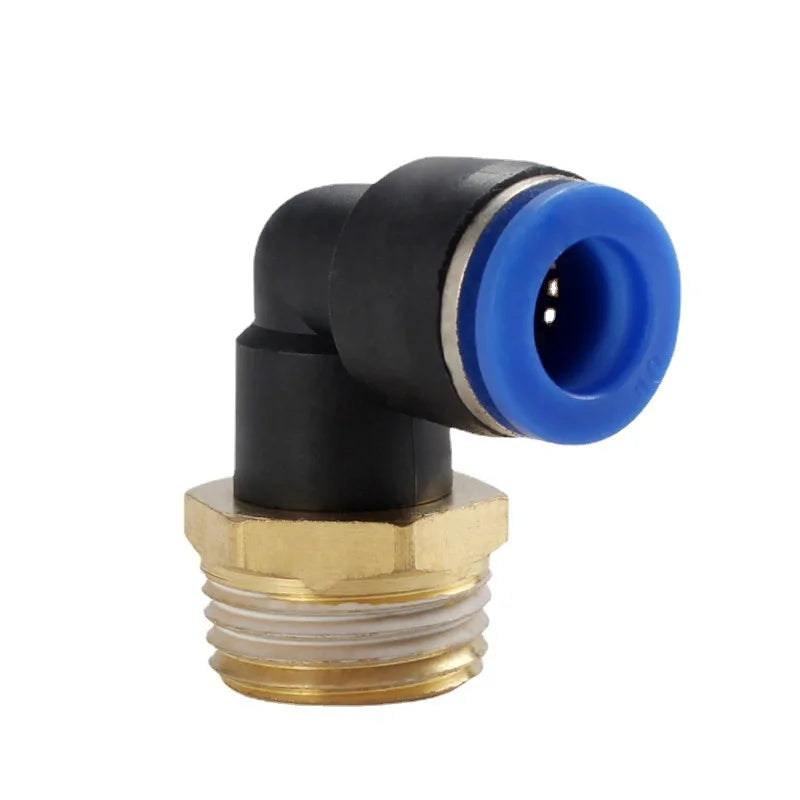

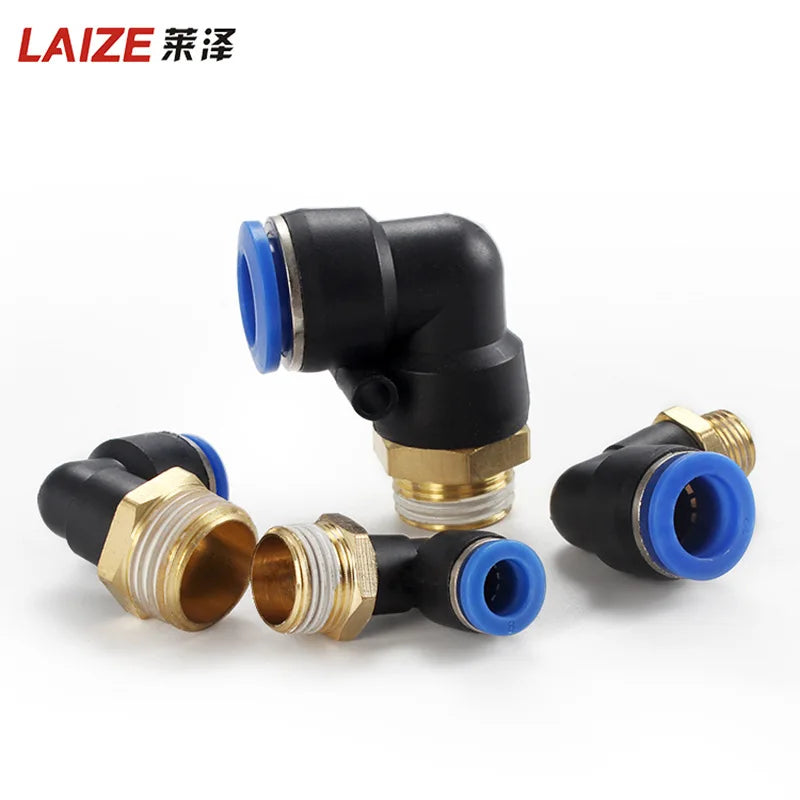

Upgrade your pneumatic system with these reliable PL Series Threaded Elbow Quick Connect Fittings. Designed for fast, tool-free tube insertion and removal, these push-to-connect elbow fittings deliver a secure, leak-free 90° connection between your air lines and threaded ports — ideal for workshops, automation setups, and compressed air systems.
Key Specifications

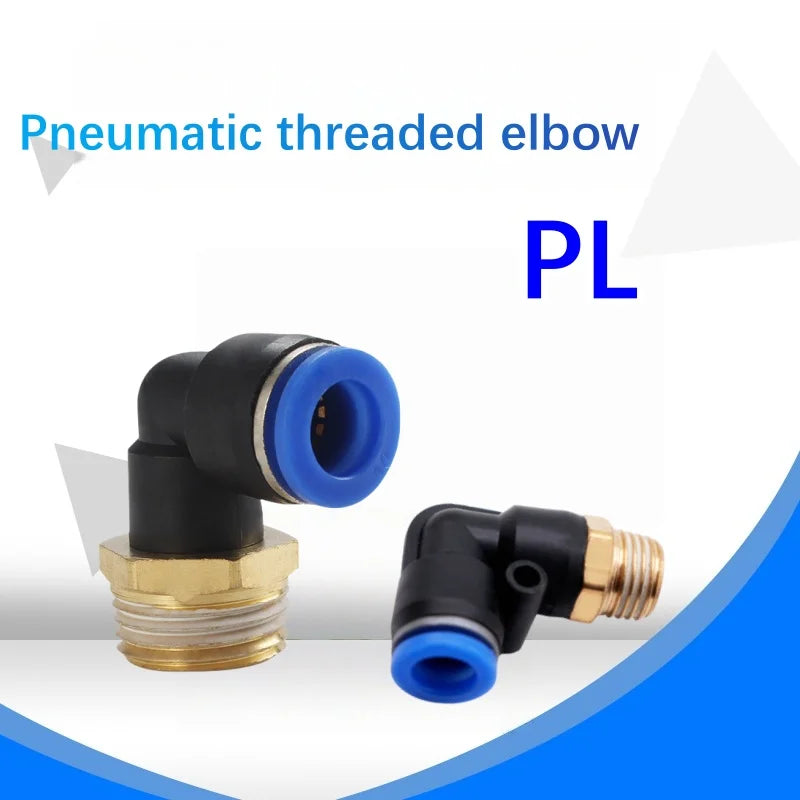

- Model: PL (External Thread Elbow Connector)
- Thread Type: BSPT (Male)
- Available Thread Sizes: 1/8" (01), 1/4" (02), 3/8" (03), 1/2" (04) BSPT
- Compatible Tube Outer Diameters: 4 mm, 6 mm, 8 mm, 10 mm, 12 mm
- Fluid Type: Air / Vacuum
- Operating Pressure: 0 – 1.0 MPa (0 – 10.2 kgf/cm²)
- Negative Pressure: -750 mmHg (10 Torr)
- Material: Brass body with high-quality plastic components
- Tube Compatibility: PU / Nylon / Polyurethane hose

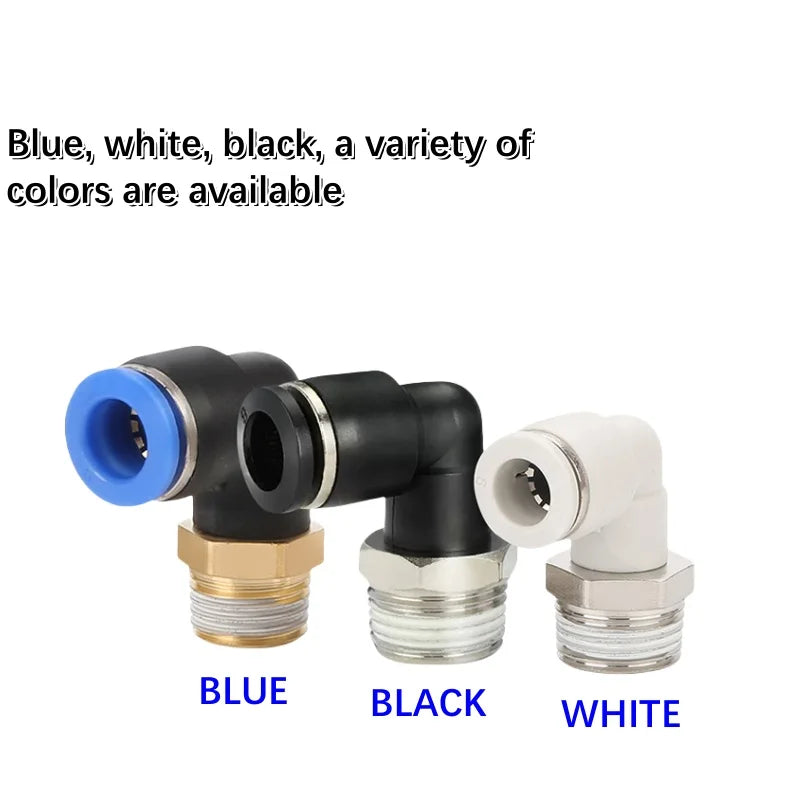

- Colors Available: Blue, White, Black
- Certification: CE
- Pack Quantity: 2 pieces
Model Size Reference Guide
| Model Code | Thread Size | Thread OD (approx.) |
|---|---|---|

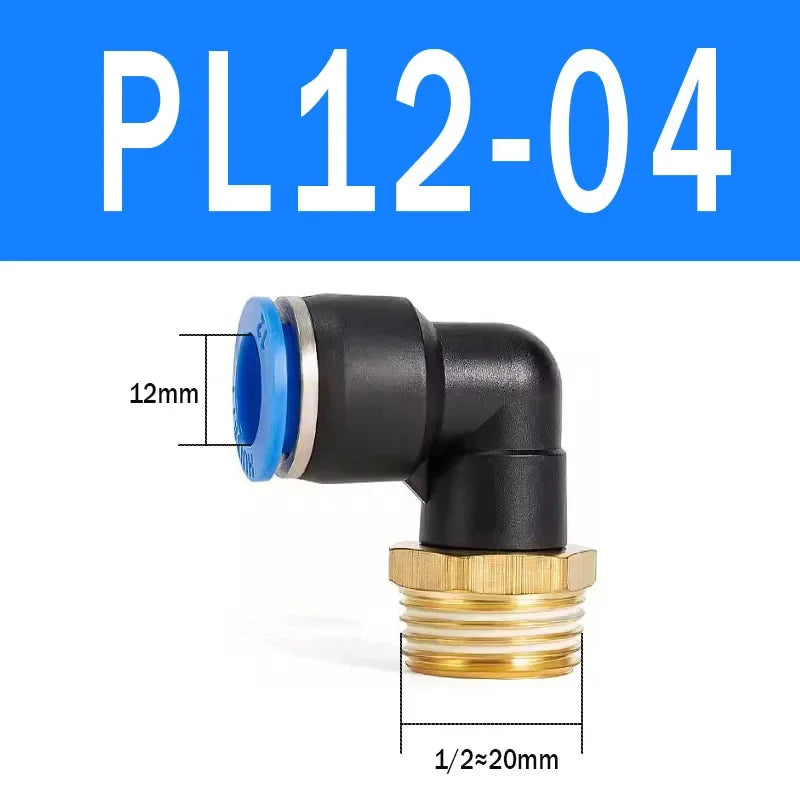

| PL_-01 | 1/8" BSPT | ≈ 9.7 mm |
| PL_-02 | 1/4" BSPT | ≈ 12.7 mm |
| PL_-03 | 3/8" BSPT | ≈ 16 mm |
| PL_-04 | 1/2" BSPT | ≈ 20 mm |
Why Choose These Elbow Air Fittings?

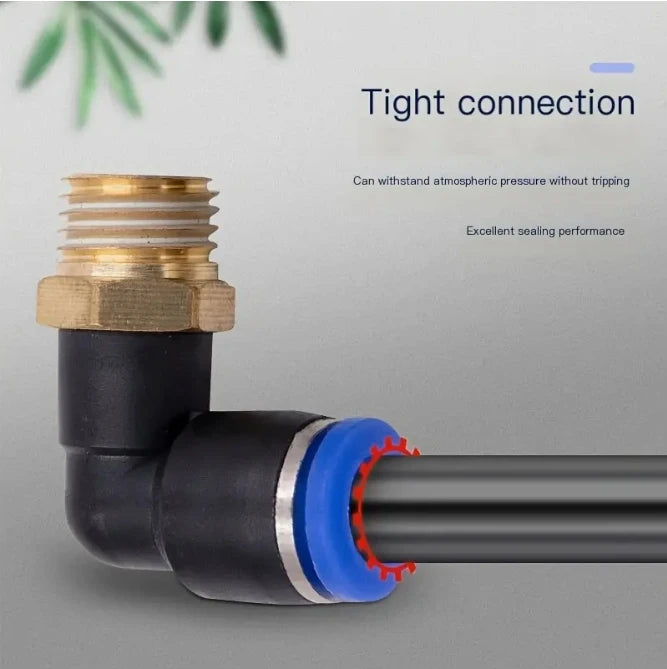

- ✅ Push-to-connect design — no tools needed for quick tube installation and removal

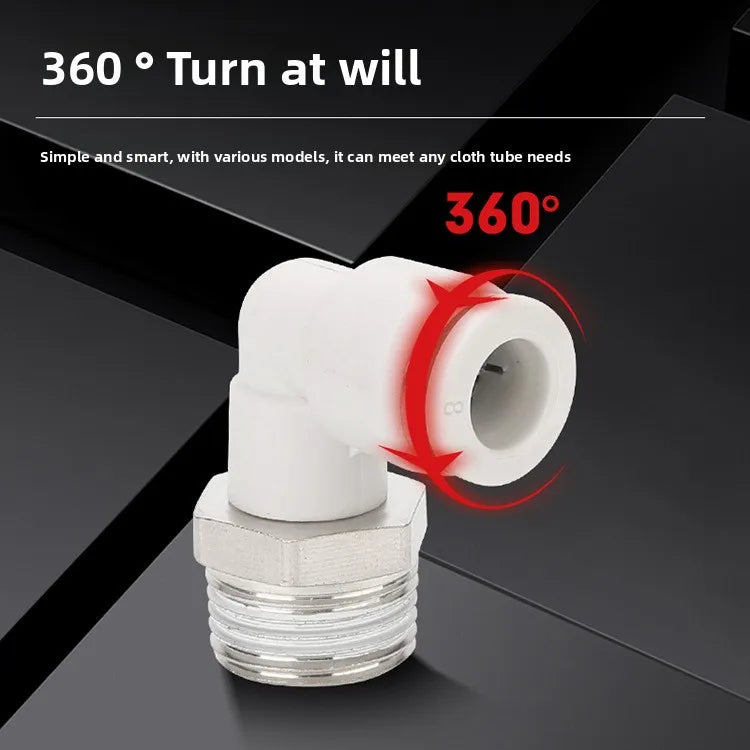

- ✅ 90° elbow profile — saves space and routes hoses cleanly around corners
- ✅ Brass + plastic construction — durable performance under consistent air pressure
- ✅ Wide size range — compatible with multiple tube diameters and BSPT thread sizes
- ✅ CE certified — meets recognized safety and quality standards
- ✅ Versatile use — suitable for pneumatic tools, compressors, automation lines, and vacuum systems
Common Applications
- Workshop and garage pneumatic tool lines
- Industrial automation and machinery air circuits
- Compressed air distribution systems
- Vacuum handling equipment
- PU / Nylon pneumatic tubing connections
Made in Mainland China.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What tube sizes are compatible with these PL pneumatic elbow fittings?
A: These PL series elbow quick connectors are compatible with tube outer diameters of 4 mm, 6 mm, 8 mm, 10 mm, and 12 mm. Be sure to select the correct model number that matches both your tube OD and your thread size (BSPT 1/8", 1/4", 3/8", or 1/2").
Q: What is the maximum operating pressure for these pneumatic fittings?
A: These fittings are rated for an operating pressure range of 0 to 1.0 MPa (0 to 10.2 kgf/cm²) and can handle a negative (vacuum) pressure down to -750 mmHg (10 Torr), making them suitable for both compressed air and vacuum line applications.
Q: Are these fittings compatible with NPT threads?
A: No — these fittings use BSPT (British Standard Pipe Taper) threads, not NPT. BSPT and NPT are similar in thread count but have a different thread angle (55° vs 60°), so they are not interchangeable. Please verify your equipment uses BSPT ports before ordering.
Q: How many pieces are included per order?
A: Each listing includes 2 pieces of the PL threaded elbow quick connector in your selected size/model variant.
