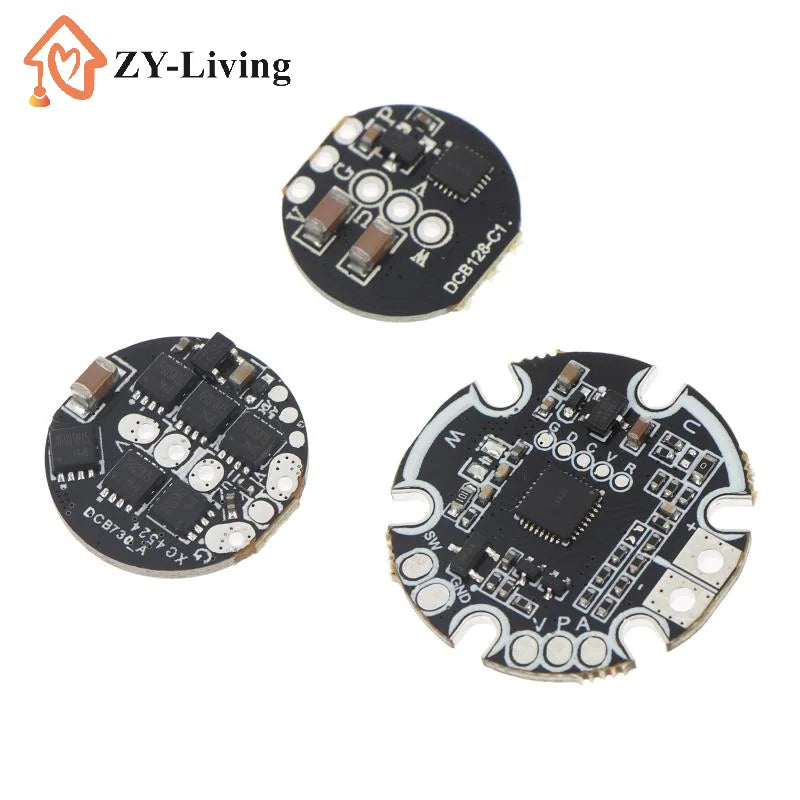

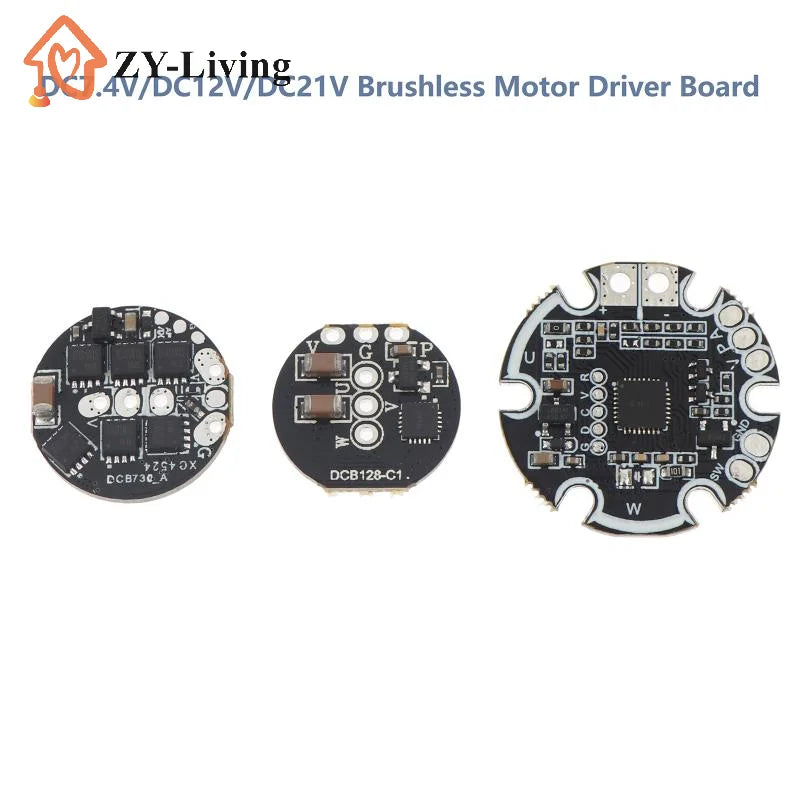

PWM Brushless Motor Driver Board — Compact, High-Speed, Multi-Voltage
Take precise control of your DC brushless motor projects with this versatile PWM Motor Speed Controller Driver Board. Engineered for high-RPM applications, this compact 23mm module delivers reliable performance across a wide voltage range — making it ideal for DIY electronics, robotics, RC vehicles, power tools, and more.
Key Features

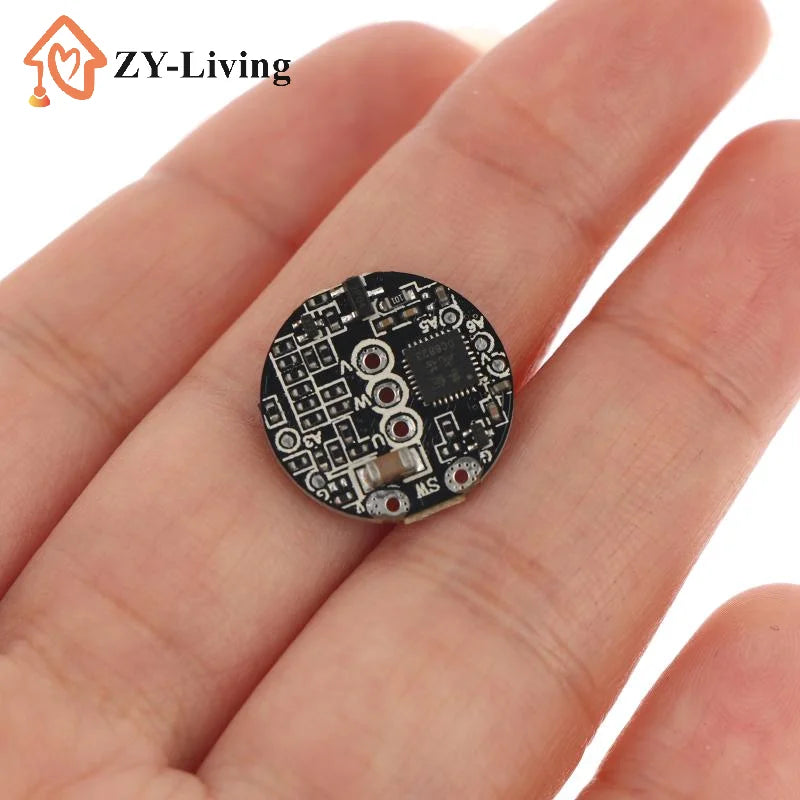

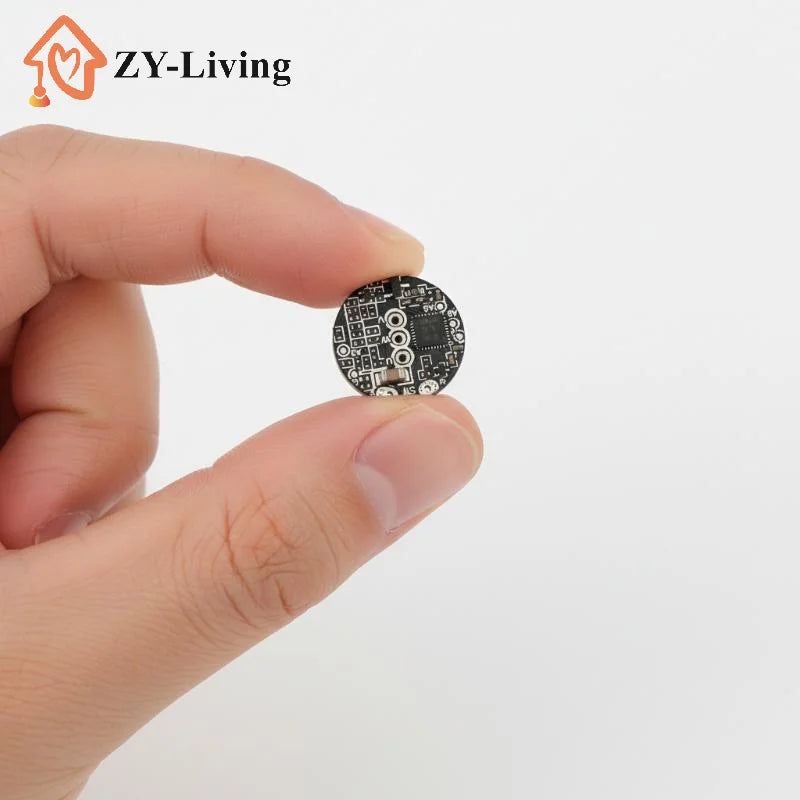

- Compact Form Factor: Sleek 16mm diameter driver board designed to fit into tight spaces without sacrificing functionality.
- High-Temperature Durability: Constructed to withstand up to 105°C, ensuring consistent reliability even in demanding, high-temperature environments.
- Precise PWM Speed Control: Fine-tune your motor's performance with smooth, accurate PWM-based speed regulation for optimal efficiency.
- Wide Voltage Compatibility: Works seamlessly with DC 7.4V, DC 12V, and DC 21V input, giving you flexibility across a broad range of motor types and applications.
-
Exceptional RPM Performance:
- 86,000 RPM at 7.4V
- 100,000 RPM at 12V
- 130,000 RPM at 21V
- Battery-Free Module: Driver board only — no battery included.
- No Wireless Required: Simple, direct wired control for straightforward integration.
Specifications
| Input Voltage | DC 7.4V / DC 12V / DC 21V |
| Motor Type | DC Brushless Motor |
| Board Size | 23mm |
| Motor Diameter | 16mm |
| Max Operating Temperature | 105°C |
| Color | Black |
| Package Contents | 1 × Driver Board |
| Country of Origin | Made in China |
What's in the Box?
1 × DC Brushless Motor Driver Board (battery not included)
Please allow 2–3% dimensional variance due to manual measurement. Actual product color may vary slightly from images due to monitor display differences.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What voltage inputs does this PWM brushless motor driver board support?
A: This brushless motor driver board supports three input voltages: DC 7.4V, DC 12V, and DC 21V. Each voltage delivers a different maximum RPM — 86,000 RPM at 7.4V, 100,000 RPM at 12V, and 130,000 RPM at 21V — making it adaptable to a wide variety of DC brushless motor applications.
Q: Is this motor driver board compatible with all DC brushless motors?
A: This board is designed specifically for DC brushless motors with a 16mm diameter form factor. Its multi-voltage compatibility (7.4V, 12V, 21V) makes it suitable for a broad range of brushless motor types used in robotics, RC vehicles, DIY electronics, and small power tools.
Q: Does this driver board include PWM speed control?
A: Yes. The board features built-in PWM (Pulse Width Modulation) speed control, allowing you to precisely regulate the motor's speed for fine-tuned and efficient performance across your project's requirements.
Q: What is the maximum operating temperature for this motor controller?
A: This motor controller board is rated to operate reliably at temperatures up to 105°C, making it well-suited for high-temperature environments and demanding motor control applications.
