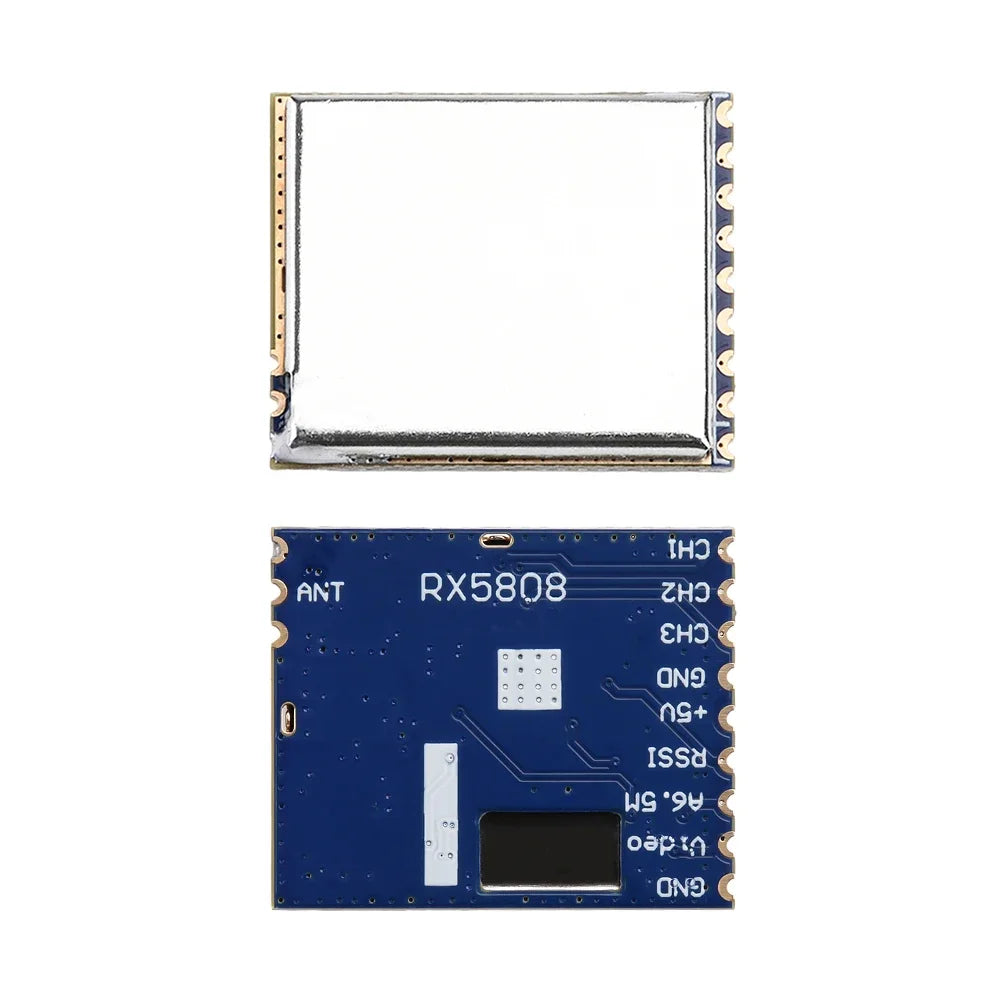

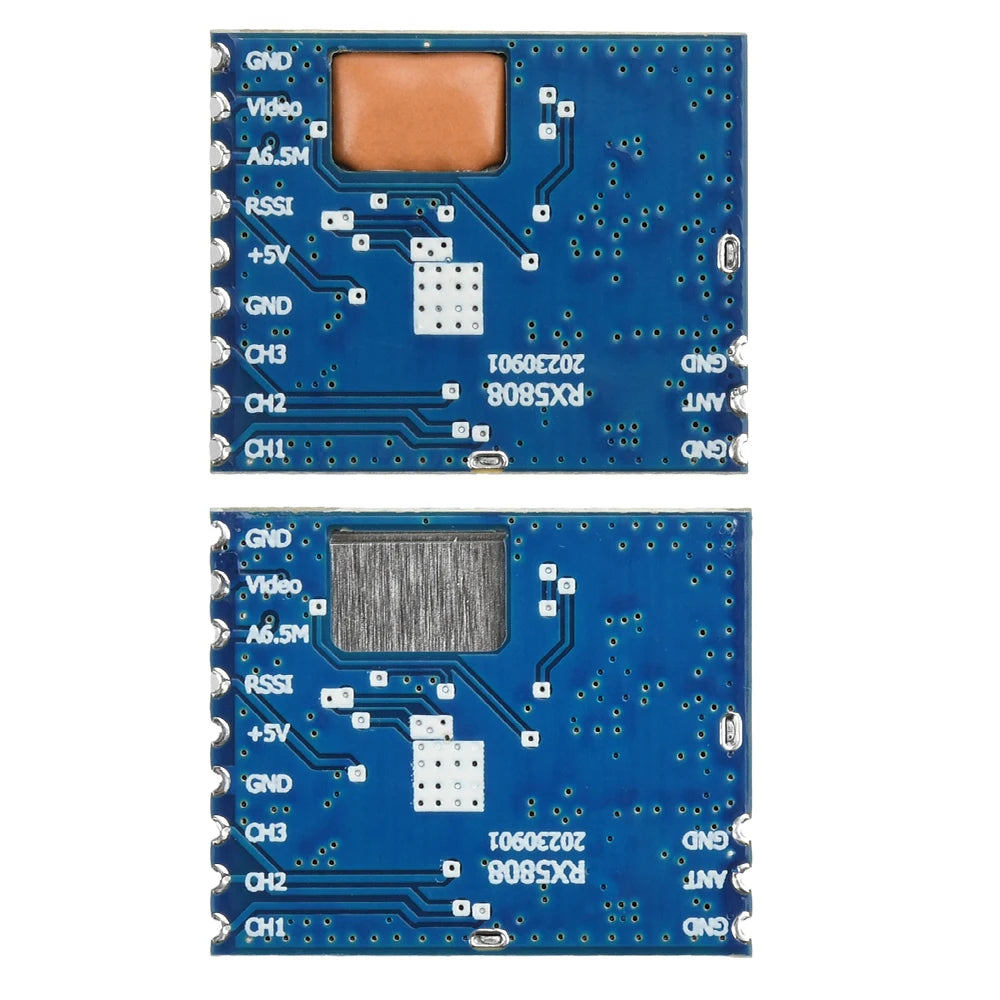

RX5808 5.8GHz Wireless Audio/Video Receiver Module for FPV Systems
Take your FPV (First-Person View) experience to the next level with the RX5808 Wireless Audio/Video Receiver Module. Engineered for RC helicopters, drones, and other remote-controlled systems, this compact SMD-packaged module delivers smooth, synchronized HD audio and video transmission across the 4.8–6.0GHz wideband range. Its single-chip design integrates a VCO, PLL, broadband FM video demodulation, and FM audio demodulation — all in a tiny 28×23×3mm footprint.
Made in China.
Key Features
- Wideband FM Reception: Covers 4.8–6.0GHz with synchronized audio and video output for smooth, high-definition transmission.
- Ultra-Compact SMD Package: Measures just 28×23×3mm — easy to integrate into drones, FPV goggles, and RC systems without adding bulk.
- Low Power Consumption: Operates at 5V / 170mA, keeping energy draw minimal while maximizing flight and usage time.
- High Reception Sensitivity: -90dBm sensitivity ensures stable signal lock even at range, with strong anti-interference performance.
- Built-In Frequency Phase-Locked Loop (PLL): Delivers precise, stable frequency control across all 8 channels in the 5725–5865MHz ISM band.
- Direct AV Output: Outputs analog audio and video signals directly — simply connect power, audio/video cables, and an antenna.
- Wide Operating Temperature: Functions reliably from -20°C to 70°C (module only).
Technical Specifications
| Supply Voltage | 3.5 – 5.5V |
| Power Supply Current | 170mA |
| Power Supply Ripple Voltage | 10mVpp (Max 25mVpp) |
| Wideband | 4.8 – 6.0GHz |
| Receiving Frequency | 5725 – 5865MHz (8 Channels) |
| Frequency Control | Built-in Phase-Locked Loop (PLL) |
| AV Output | Analog audio and video signal output |
| Receiving Sensitivity | -90dBm |
| Package Size | 28 × 23 × 3mm (SMD / TQFP) |
| Operating Temperature | -20°C to 70°C (module only) |
| Package Contents | 1 × RX5808 Receiver Module |
What's in the Box
- 1 × RX5808 5.8GHz Wireless Audio/Video Receiver Module
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: What FPV systems is the RX5808 5.8GHz receiver module compatible with?
A: The RX5808 wireless audio/video receiver module is compatible with a wide range of FPV systems, including RC helicopters, drones, quadcopters, fixed-wing aircraft, and other remote-controlled vehicles that transmit on the 5.8GHz frequency band (5725–5865MHz). It is also commonly used in FPV goggles and ground station monitor builds.
Q: How many channels does the RX5808 receiver module support?
A: The RX5808 module supports 8 channels within the 5725–5865MHz ISM band, controlled by a built-in frequency phase-locked loop (PLL) for precise and stable channel selection during FPV operation.
Q: How do I set up the RX5808 wireless video receiver module?
A: Setup is straightforward — connect the power supply (3.5–5.5V), attach your audio and video cables to the AV output pins, and connect a compatible 5.8GHz antenna. The module will then receive and output analog audio/video signals from a paired FPV transmitter. No complex configuration is required for basic operation.
Q: Is the RX5808 module suitable for DIY FPV goggle builds?
A: Yes. Thanks to its ultra-compact SMD package (28×23×3mm) and low power draw (5V / 170mA), the RX5808 is a popular choice for DIY FPV goggle builds, receiver diversity systems, and custom RC video downlink projects where space and power efficiency are important.
