Solar Panel Angle Guide – Optimal Tilt Finder Tool
Solar Panel Angle Guide – Optimal Tilt Finder Tool
Maximize Your Solar Energy Output with Precision Angle Alignment

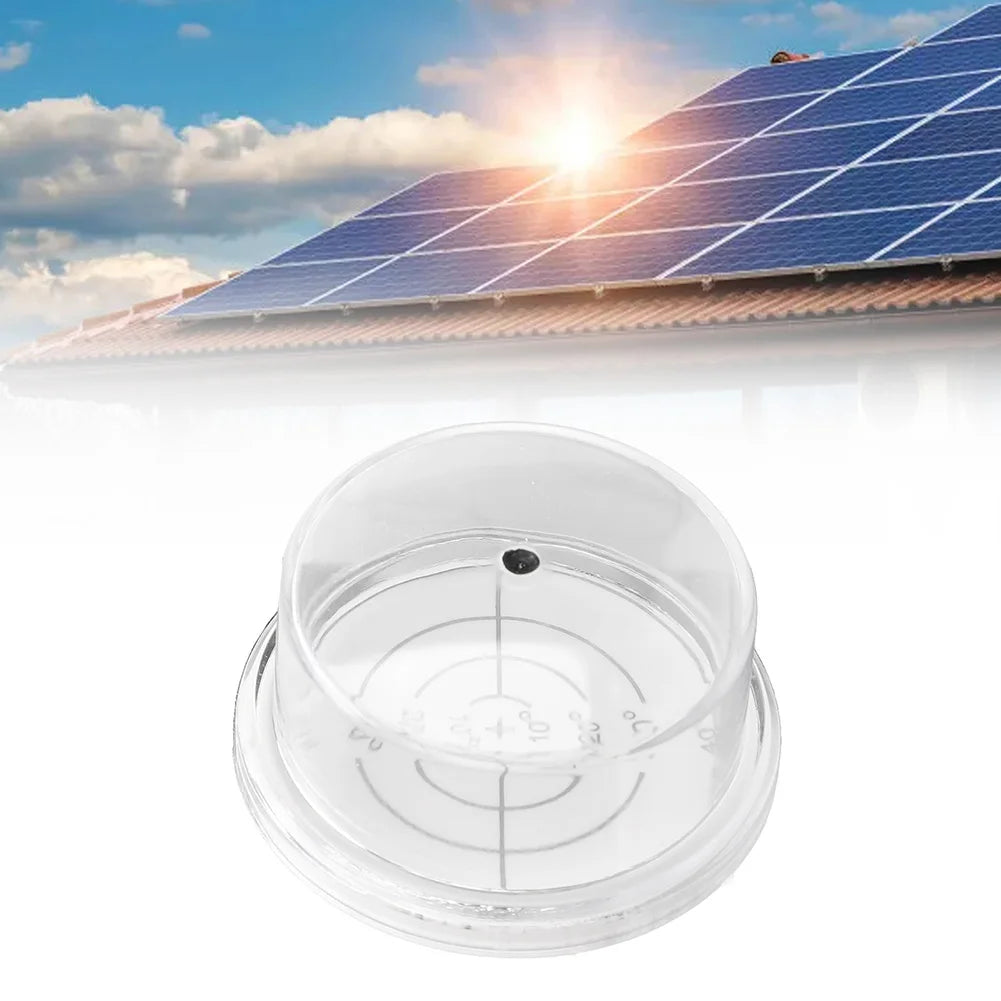

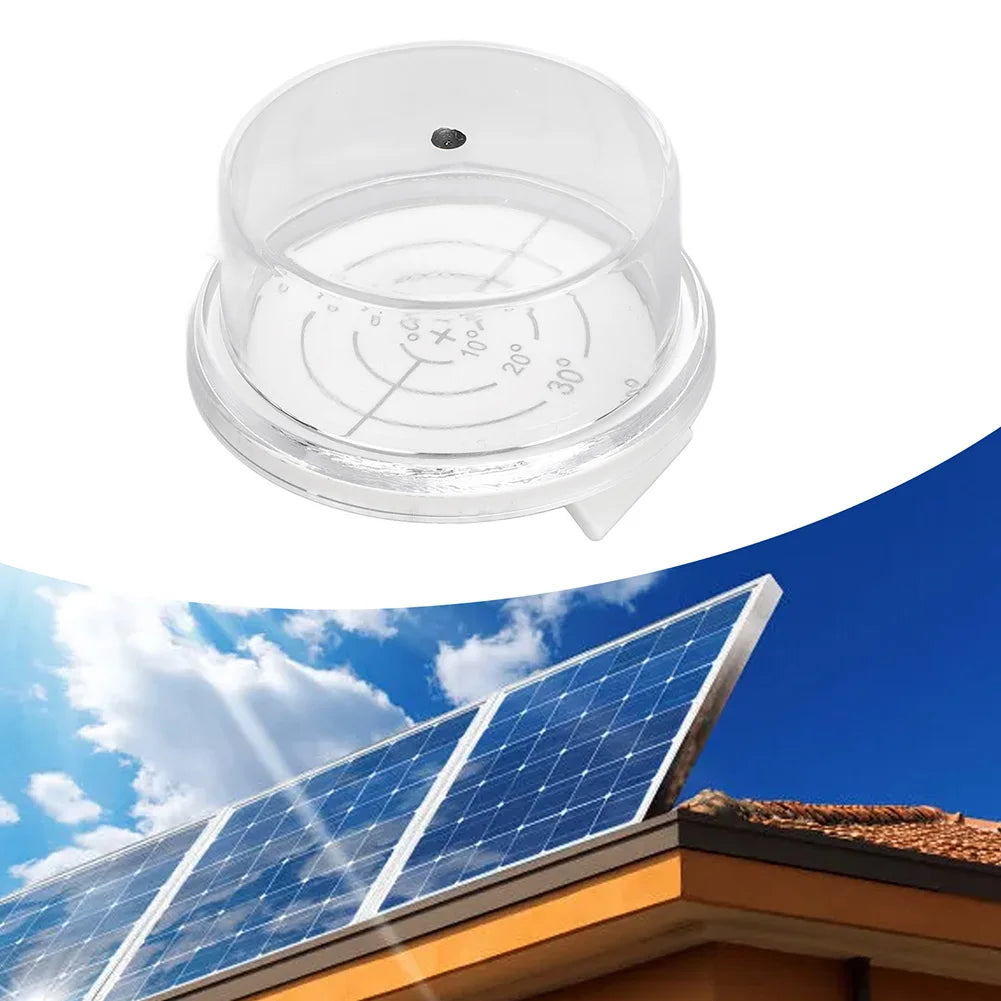

The Solar Panel Angle Guide is a compact, battery-free tool designed to help you quickly and accurately find the optimal tilt angle for any solar panel setup. Whether you're running a permanent rooftop installation, an adjustable ground mount, or a portable off-grid panel, this lightweight meter takes the guesswork out of positioning — so you capture more sunlight and charge faster.
Key Features
- Optimal Angle Finder: Simply place the guide on your panel and adjust the tilt until the shadow of the black dot centers on the scale. The closer your angle is to 90°, the greater the solar intake and the shorter your charging time.

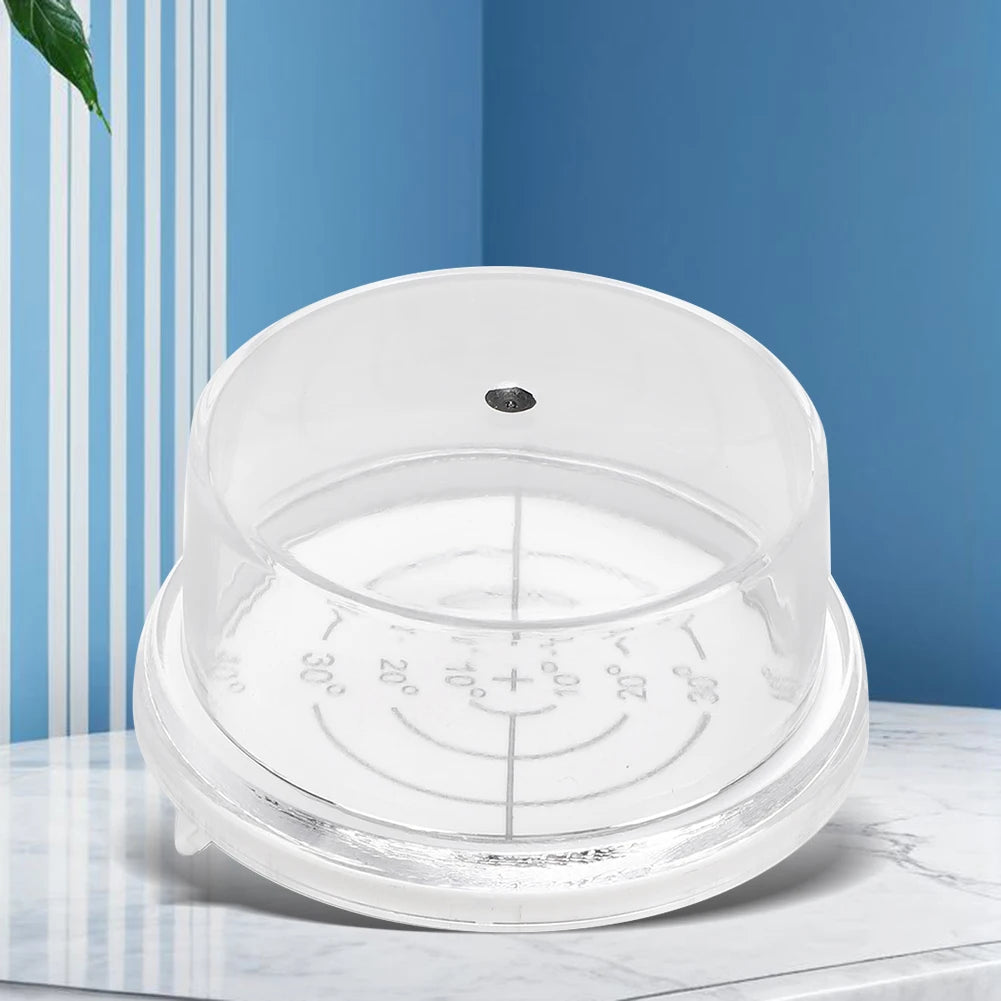

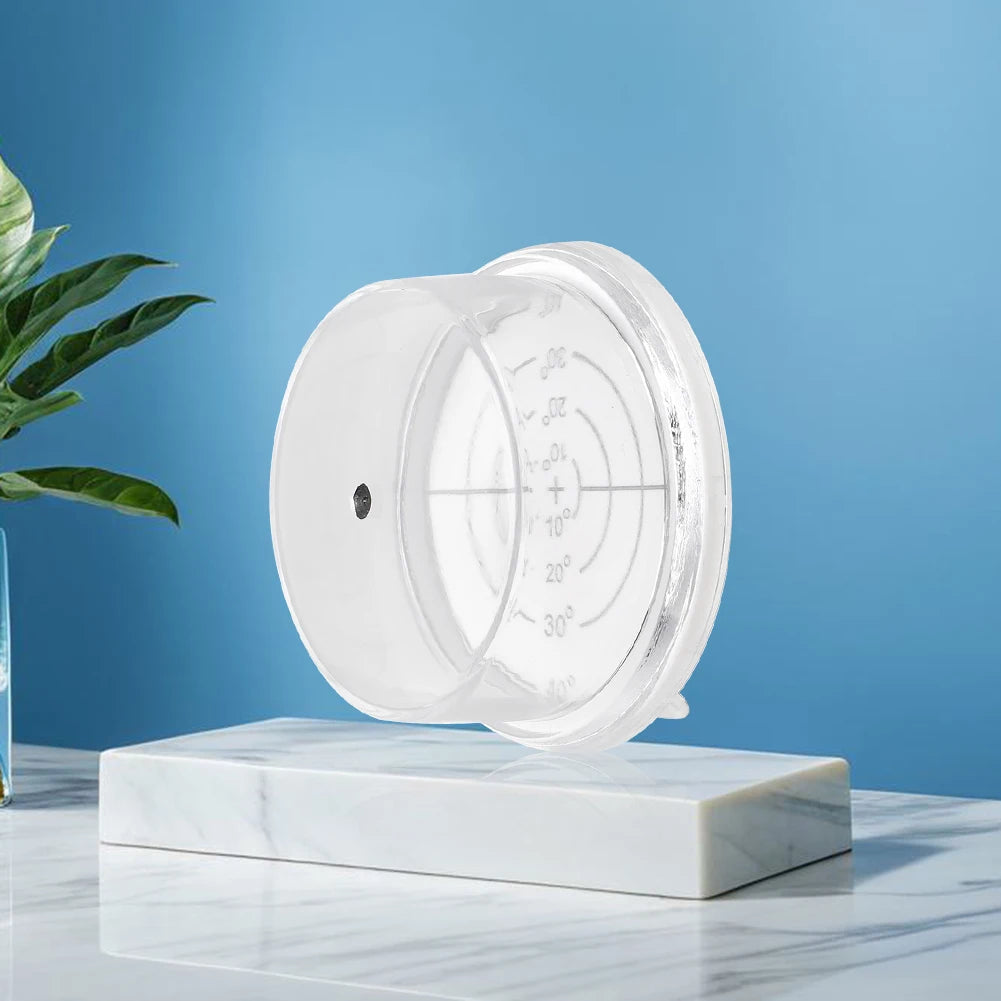

- Transparent Casing for Easy Reading: The clear PC body lets you read the scale at a glance — no squinting, no guessing. Real-time visual feedback makes panel adjustment fast and intuitive.
- Durable, Fireproof Materials: Constructed from high-quality, fireproof PC and ABS materials, this tool is built to handle harsh weather and wide temperature swings (-10°C to 70°C / 14°F to 158°F) without degrading.
- Completely Battery-Free: No power source needed — ever. Passive shadow-based mechanics mean this tool is always ready the moment you pull it out of your kit bag.

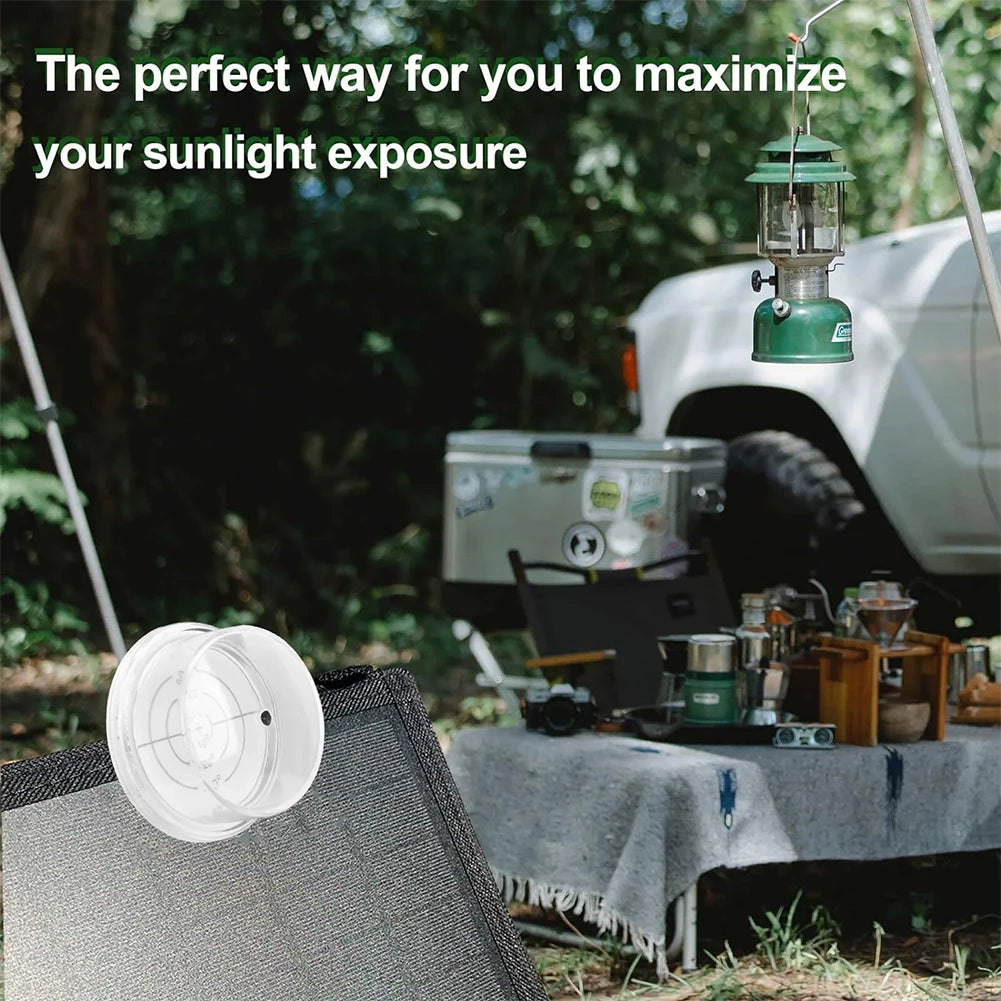

- Universal Clip Mount: The integrated back clip attaches securely to fixed, adjustable, and portable solar panels alike, keeping the guide steady during alignment.
- Ultra-Lightweight & Portable: At just 10g and 45mm in diameter (about 2 inches diagonal), it slips easily into any pocket, tool bag, or backpack.
Specifications
| Material | Fireproof PC & ABS |
| Color | Transparent |

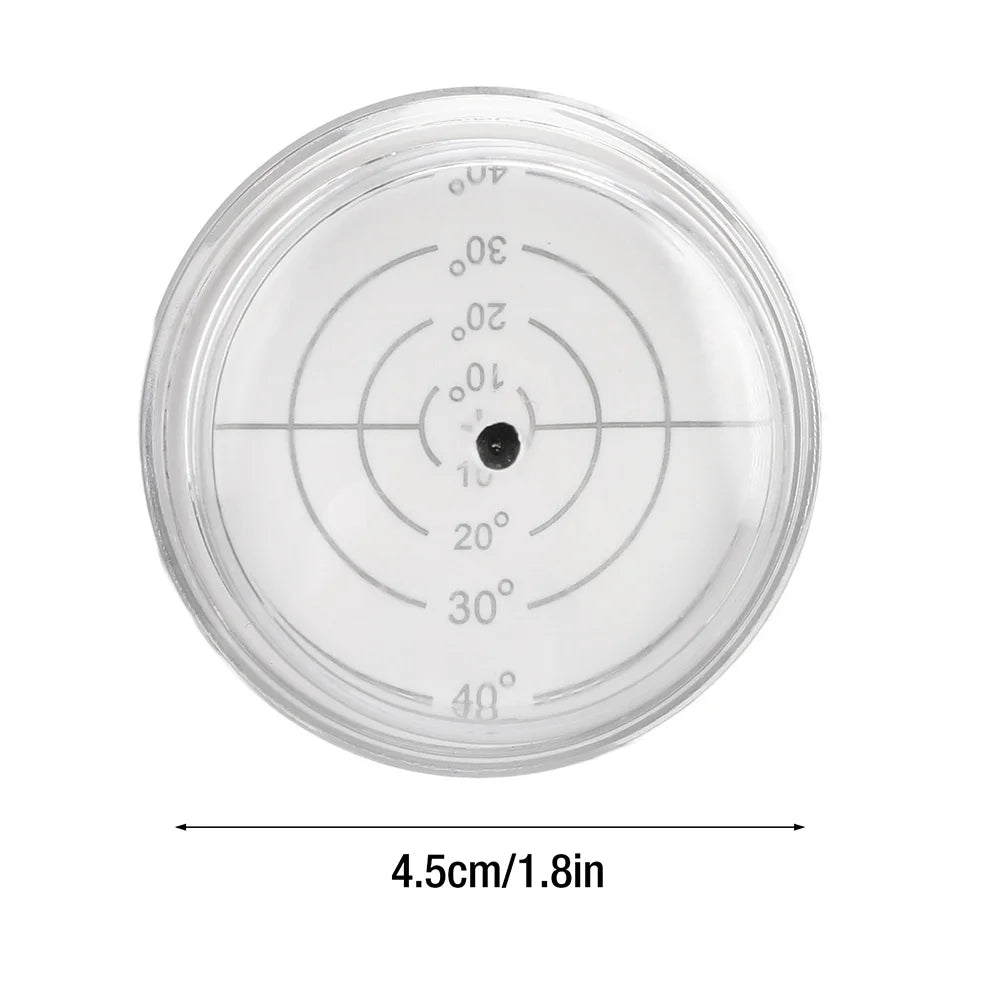

| Diameter | 45 mm (approx. 2 inches diagonal) |
| Height | 30 mm |
| Weight | 10 g |
| Operating Temperature | -10°C to 70°C / 14°F to 158°F |
| Power Source | None (battery-free) |
| Country of Origin | Made in China |
What's in the Box
- 1 × Solar Angle Guide
Who Is This For?
This tool is ideal for RV owners, campers, off-grid enthusiasts, homeowners with rooftop panels, and solar installers who want a simple, reliable way to verify panel positioning on the spot — no apps, no calculators, no batteries required.
Note: Due to differences in monitor settings and lighting conditions, the actual color of the item may vary slightly from images shown. Please allow ±1–2 cm measurement deviation due to manual measurement.
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: How does the solar angle guide work without a battery or app?
A: The solar angle guide uses a passive shadow method. A small black dot inside the transparent PC casing casts a shadow onto a calibrated scale when sunlight hits it. You simply tilt or adjust your solar panel until the shadow is centered on the scale — that position represents the closest-to-90° sun angle, meaning maximum solar energy capture. No electronics, no battery, and no smartphone needed.
Q: Is the solar panel angle finder compatible with all types of solar panels?
A: Yes. The built-in back clip is designed to attach to a wide range of solar panels, including fixed rooftop panels, ground-mounted adjustable arrays, and portable folding solar panels used for camping or off-grid setups. Its universal design makes it a versatile addition to any solar energy toolkit.
Q: Can this tool be used in extreme outdoor conditions?
A: Absolutely. The solar angle meter is constructed from fireproof, high-temperature-resistant PC and ABS materials, rated for operating temperatures between -10°C and 70°C (14°F to 158°F). It is built to withstand outdoor conditions including heat, cold, and general weather exposure during typical solar panel installation and maintenance tasks.
Q: How accurate is the solar angle adjust meter?
A: The tool provides a reliable real-time visual reference for panel tilt alignment. As with any manually read instrument, minor measurement deviation of ±1–2 cm is possible due to hand placement. For most residential and portable solar panel setups, this level of precision is more than sufficient to noticeably improve energy capture efficiency.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
