STC-1000 Digital Temperature Controller – Heating & Cooling 12V/220V
STC-1000 Digital Temperature Controller – Heating & Cooling 12V/220V

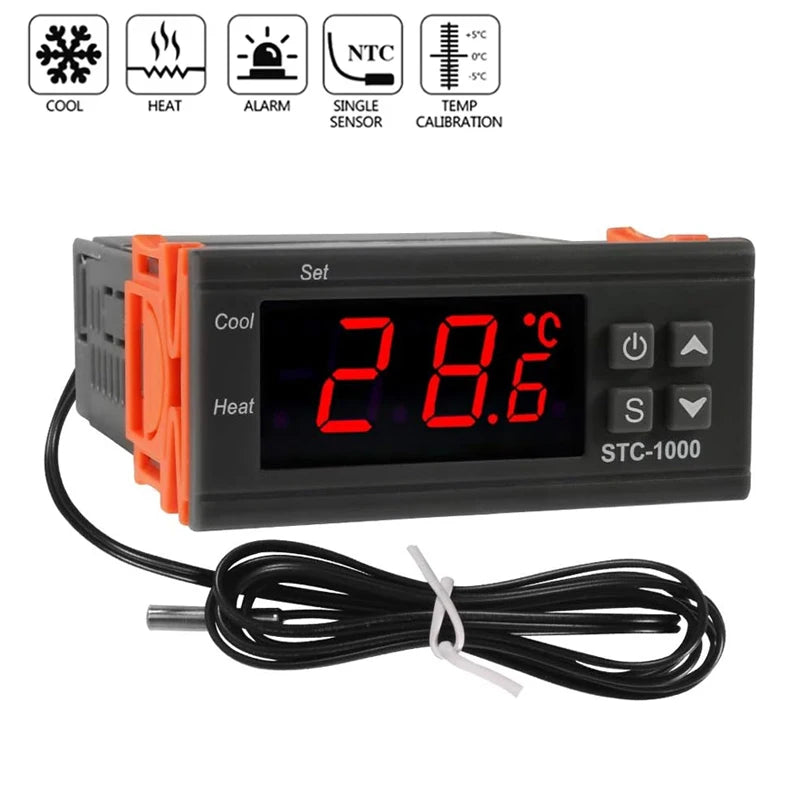

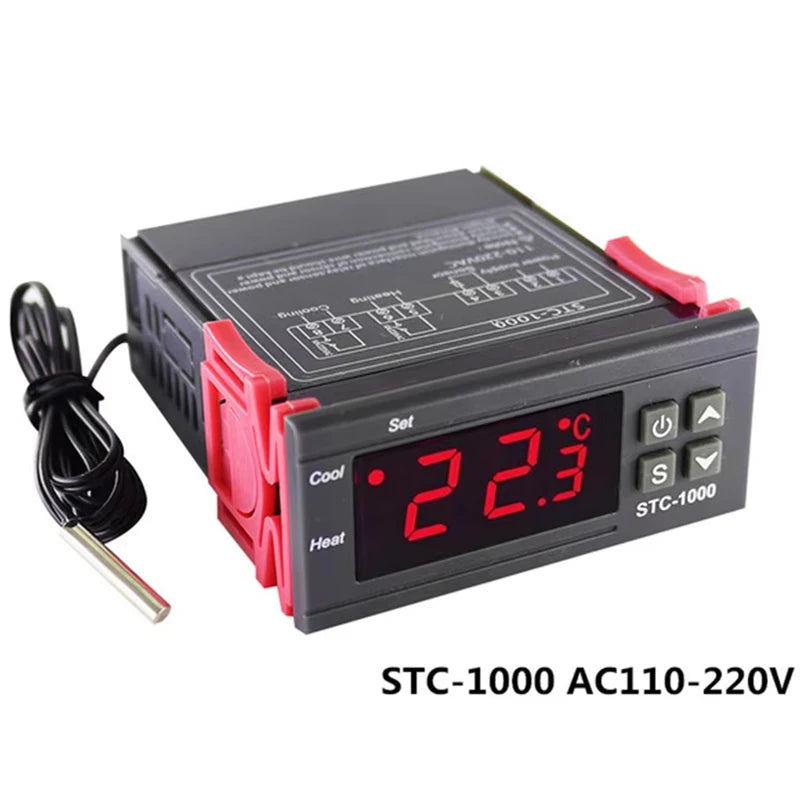

STC-1000 Smart LED Digital Temperature Controller
Take precise control of your heating and cooling systems with the STC-1000 Digital Thermostat Controller. Featuring a bright LED display and a wide temperature control range, this versatile thermoregulator is ideal for incubators, aquariums, fermentation chambers, greenhouses, HVAC systems, and more. CE-certified and built with an ABS flame-retardant shell, it's designed for reliable, long-term performance.
Key Features
- Wide Temperature Range: -50°C to +110°C with 0.1° resolution for accurate monitoring and control

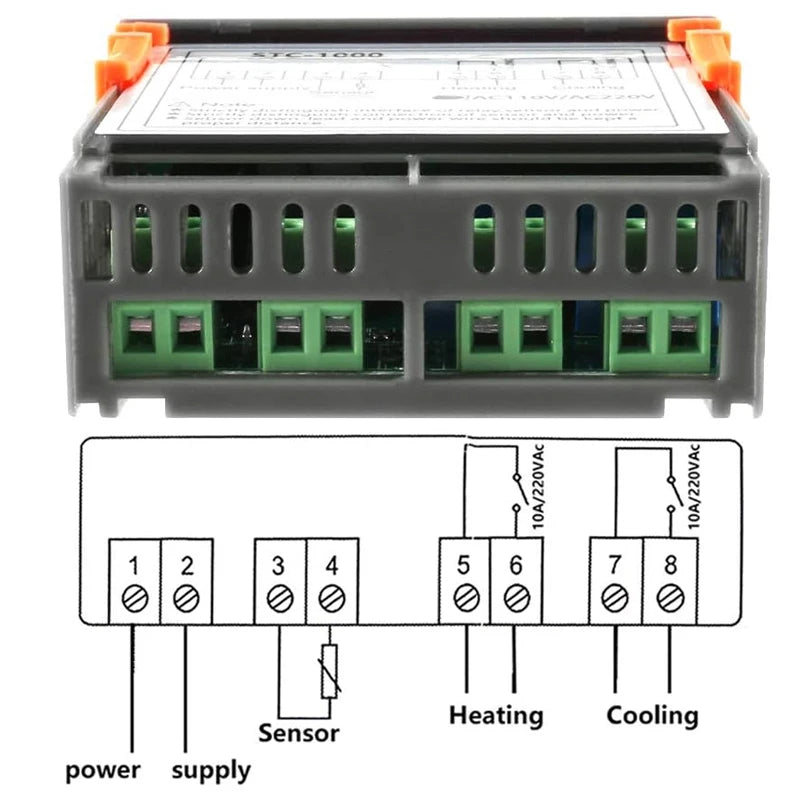

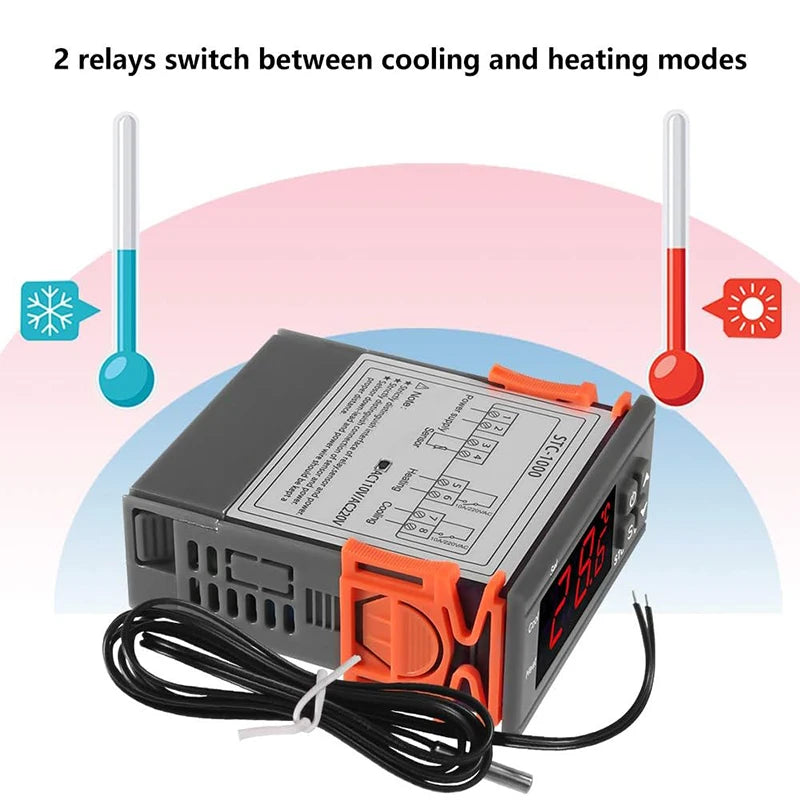

- Dual Output: Independent relay outputs for both heating (10A/240VAC) and cooling (10A/240VAC)
- Flexible Power Supply: Compatible with 110–220VAC (±10%, 50/60Hz) or DC 12V
- Imported NTC Sensor: Comes with a 1-meter NTC sensor for accurate temperature readings

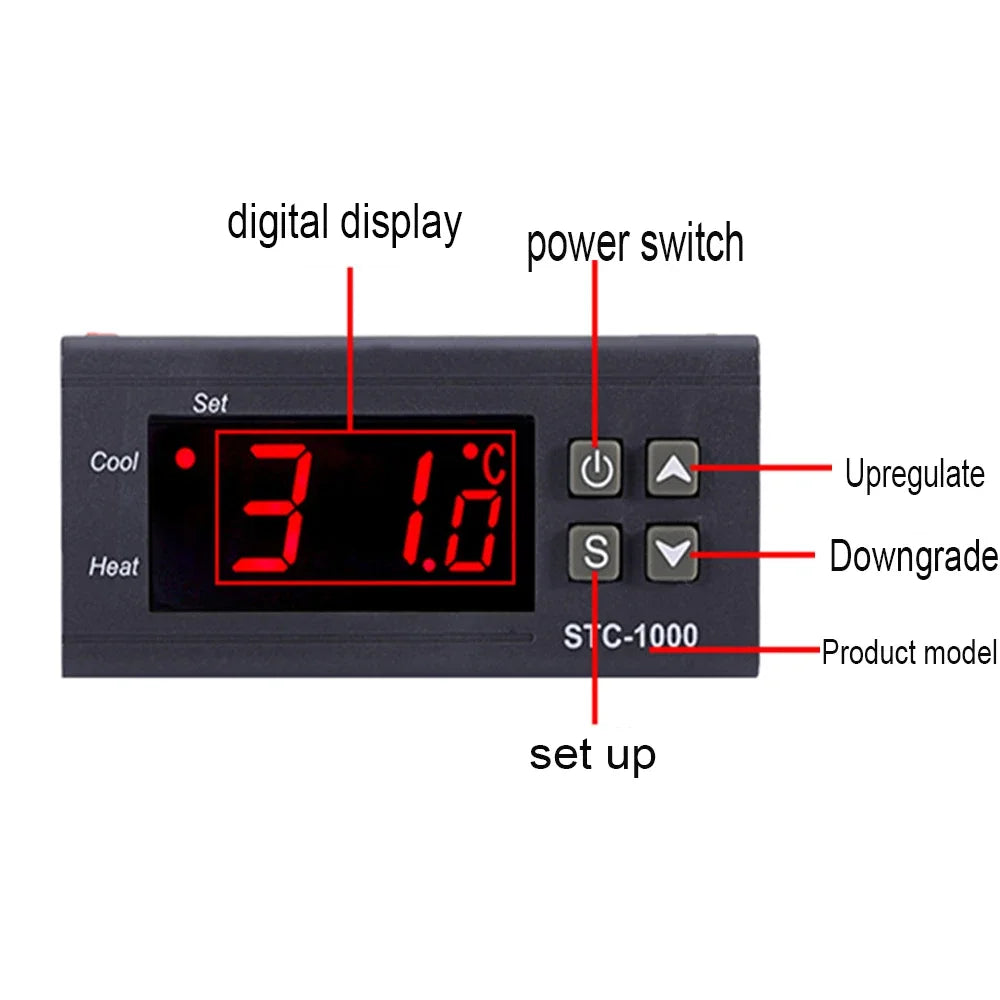

- Easy Programming: Press and hold SET for 5 seconds to access internal parameters (P0–P8); navigate with Up/Down buttons and confirm with RST
- Low Power Consumption: Less than 3W operating wattage
- Durable Build: ABS flame-retardant plastic shell in a sleek gray finish
- CE Certified: Meets CE safety and quality standards
- Compact & Lightweight: Only 100g, easy to mount and install
Specifications
| Power Supply | 110–220VAC ±10%, 50/60Hz / DC 12V |
| Temperature Range | -50°C to +110°C |
| Resolution | 0.1°C |
| Accuracy | ±1°C |
| Relay Output (Heating) | 10A / 240VAC |
| Relay Output (Cooling) | 10A / 240VAC |
| Sensor Type | Imported NTC Sensor (1m cable) |
| Wattage | <3W |
| Shell Material | ABS Flame-Retardant Plastic |
| Color | Gray |
| Weight | 100g |
| Certification | CE |
| Country of Origin | Made in Mainland China |
Common Applications
- Egg incubators and reptile enclosures
- Home brewing and fermentation chambers
- Aquarium and fish tank temperature management
- Greenhouse and grow tent climate control
- Industrial and home HVAC automation
- Refrigeration and cold storage monitoring
What's in the Box
- 1 × STC-1000 Digital Temperature Controller
- 1 × NTC Temperature Sensor (1m cable)
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What power supplies are compatible with the STC-1000 Digital Temperature Controller?
A: The STC-1000 supports both AC and DC power. It works with 110–220VAC (±10%, 50/60Hz) and DC 12V, making it flexible for a wide range of home and industrial applications.
Q: Can the STC-1000 thermostat control both heating and cooling simultaneously?
A: Yes! The STC-1000 features independent relay outputs for heating and cooling, each rated at 10A/240VAC. You can program separate set-points so the controller automatically activates your heating or cooling device to maintain your desired temperature.
Q: How do I program the internal settings on the STC-1000 temperature controller?
A: Press and hold the SET button for 5 seconds to enter the internal parameter menu (P0–P8). Use the Up and Down arrow buttons to navigate between parameters and adjust values, then press the RST button to confirm and return to normal operation.
Q: What types of projects is the STC-1000 best suited for?
A: The STC-1000 digital thermostat is ideal for egg incubators, reptile enclosures, home brewing fermentation chambers, aquarium temperature management, greenhouses, grow tents, and general HVAC or refrigeration automation — anywhere precise temperature regulation is needed.
