Three Phase Induction Motor Teaching Model with Visible Stator & Winding Structure

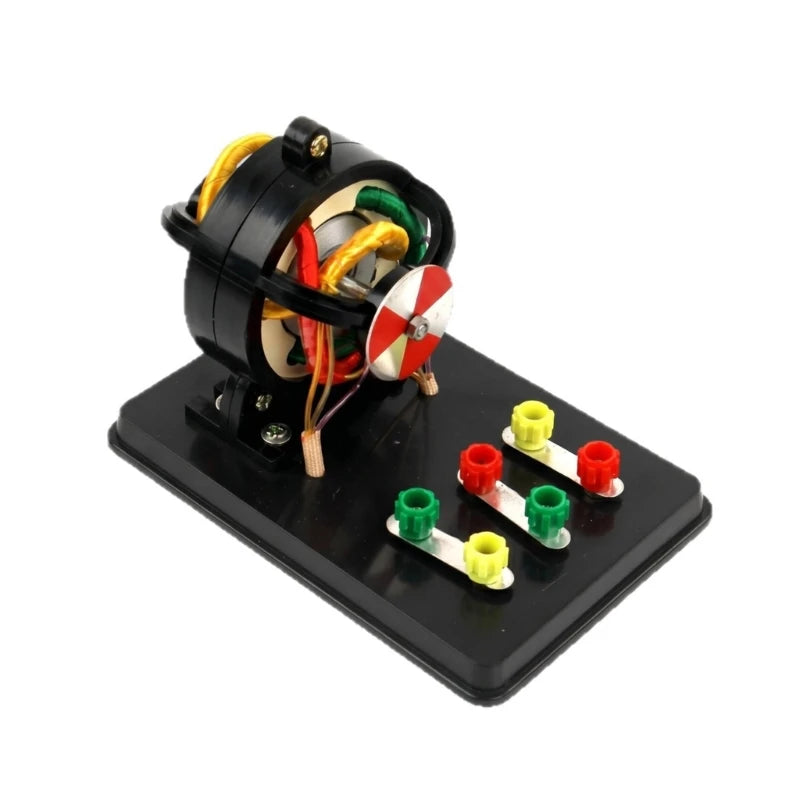

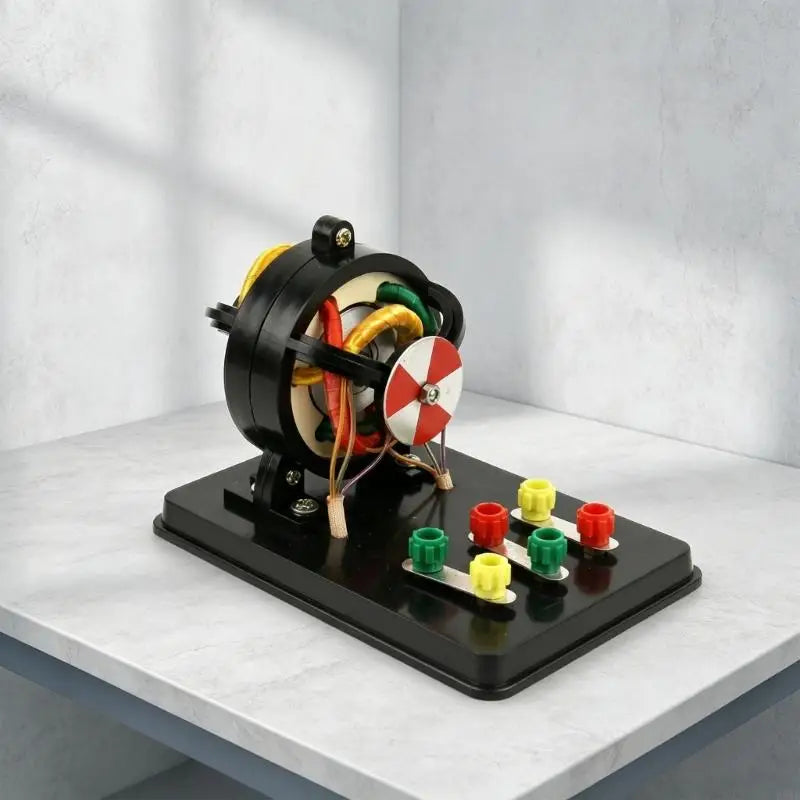

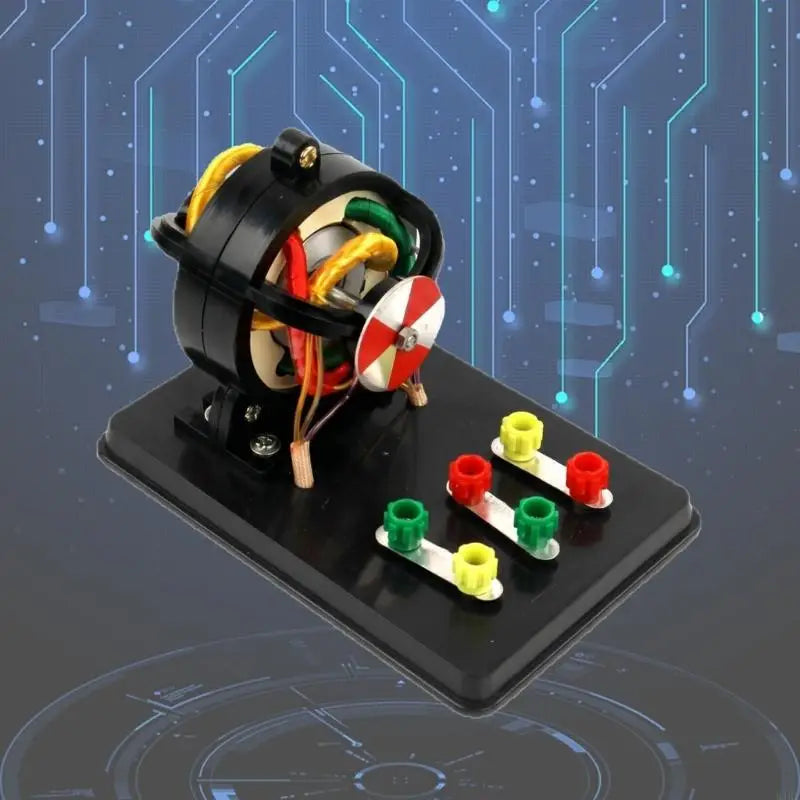

Bring electromagnetic principles to life in your classroom or lab with this professionally crafted Three Phase Induction Motor Teaching Model. Featuring an open-view construction that exposes the stator, rotor, and winding structure, this hands-on demonstration aid makes it easy for educators to walk students through the fundamentals of three-phase induction motor operation — step by step, layer by layer.
Key Features
- Open-View Motor Structure: The fully visible internal layout clearly exposes the stator, rotor, and coil windings, giving students an unobstructed view of how all components interact during a lesson or lab demonstration.
- Color-Coded Wiring Terminals: Six terminal posts marked in red, yellow, and green allow instructors to walk through wiring configurations methodically, supporting step-by-step explanations for classroom lessons and guided lab observation.
- Manual Rotor Rotation: The rotor can be turned by hand, providing a practical, no-power-required way to illustrate startup behavior and demonstrate asynchronous motor concepts in a safe, controlled setting.

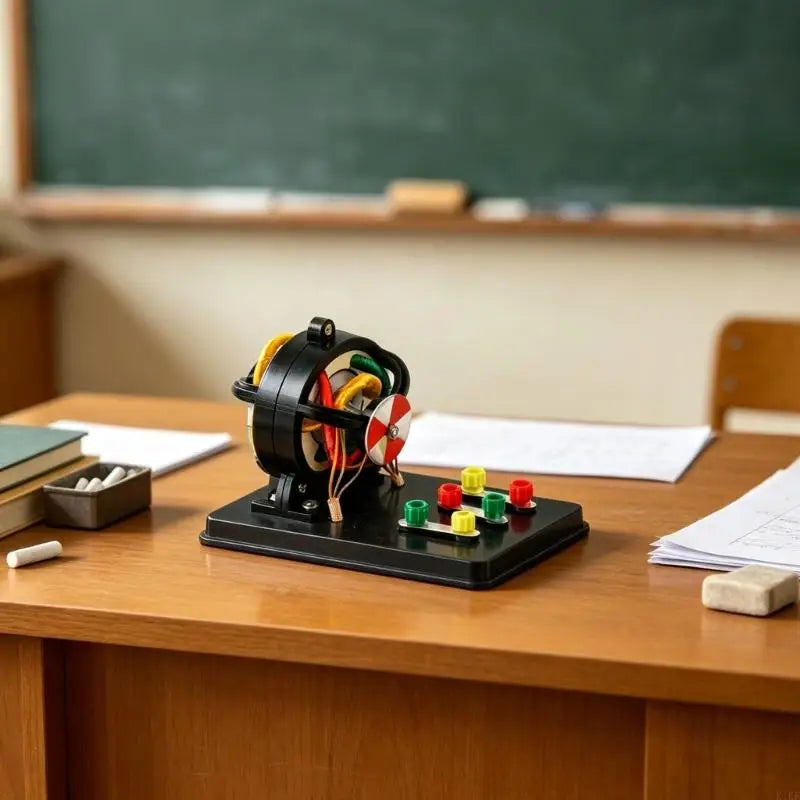

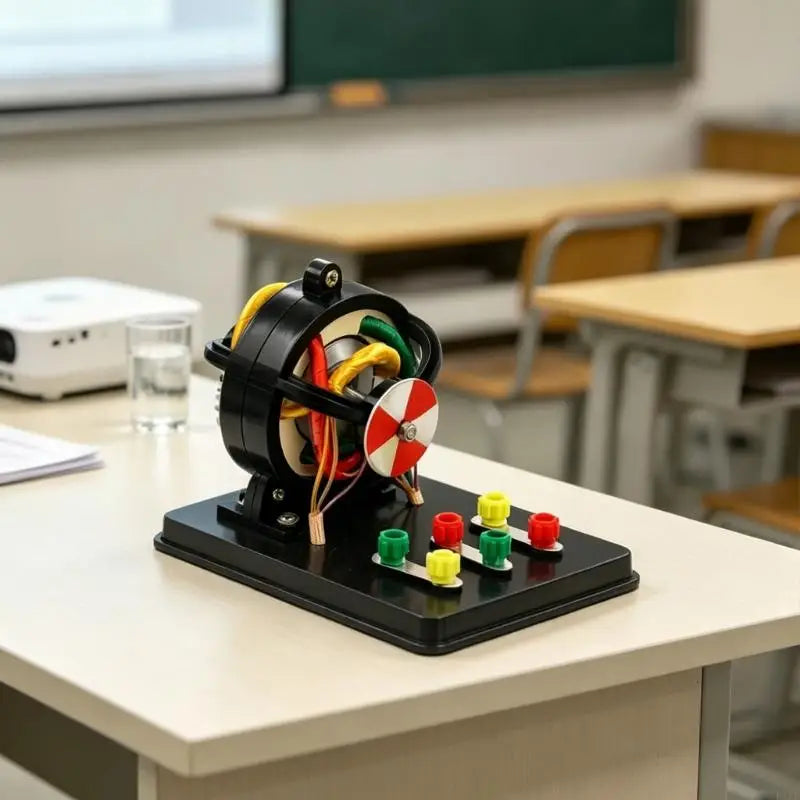

- Classroom & Lab Ready: The compact desktop footprint fits comfortably on lecture tables, lab benches, and science fair displays — an ideal visual aid for demonstrations, group observation, and structured discussion.
- Durable Construction: Built with metal internal structural parts, insulated coils, and robust terminals designed to withstand repeated classroom handling.
Specifications
| Components | Metal structural parts, insulated coils & terminals |

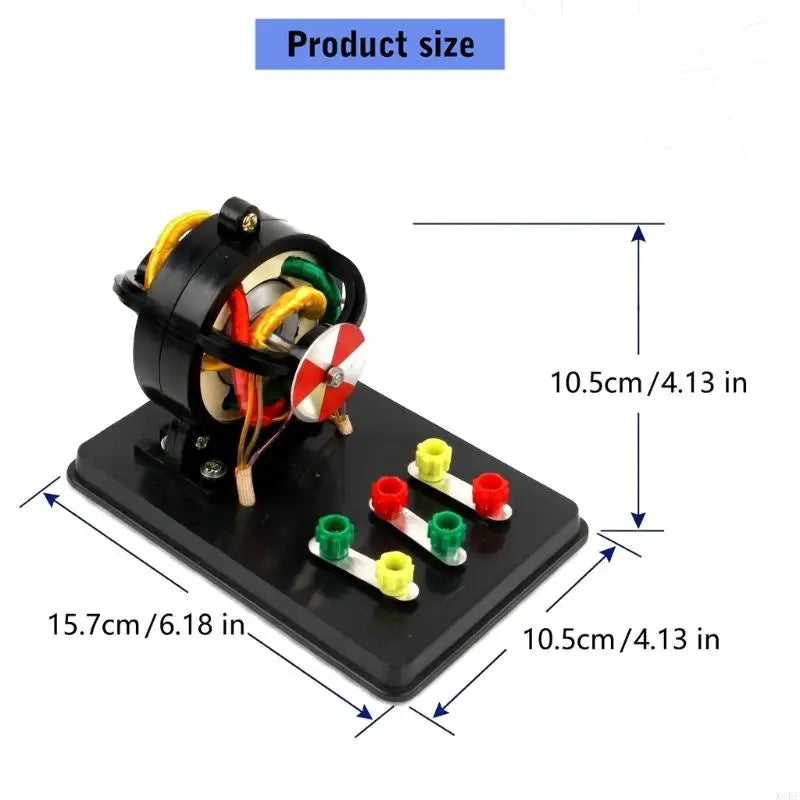

| Dimensions | Approx. 15.7 × 10.5 × 10.5 cm (6.18 × 4.13 × 4.13 in) |
| Quantity | 1 Set |
| Country of Origin | Made in Mainland China |
Package Includes
- 1 × Three Phase Induction Motor Teaching Model
Who Is This For?
This teaching model is ideal for high school and university physics teachers, electrical engineering educators, and science laboratory coordinators who want a reliable, reusable visual aid for explaining motor theory. It also works perfectly for student project displays, science exhibitions, and self-directed learning at home.
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: Does the three phase induction motor teaching model require a power source to operate?
A: No external power source is required. The rotor can be rotated manually by hand, making it completely safe and convenient for classroom demonstrations, lab sessions, and exhibitions without any electrical connections needed.
Q: What age or education level is this motor teaching model best suited for?
A: This model is best suited for high school physics students and above, including vocational, technical, and university-level electrical engineering courses. It provides a clear, tangible reference for understanding three-phase induction motor principles that can be difficult to visualize from textbooks alone.
Q: What does the color-coded terminal system on the motor teaching model demonstrate?
A: The six color-coded terminal posts (red, yellow, and green) represent the three-phase wiring connections of an induction motor. They allow instructors to demonstrate how each phase connects to the stator windings, supporting clear, step-by-step wiring explanations during classroom lessons and supervised lab activities.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
