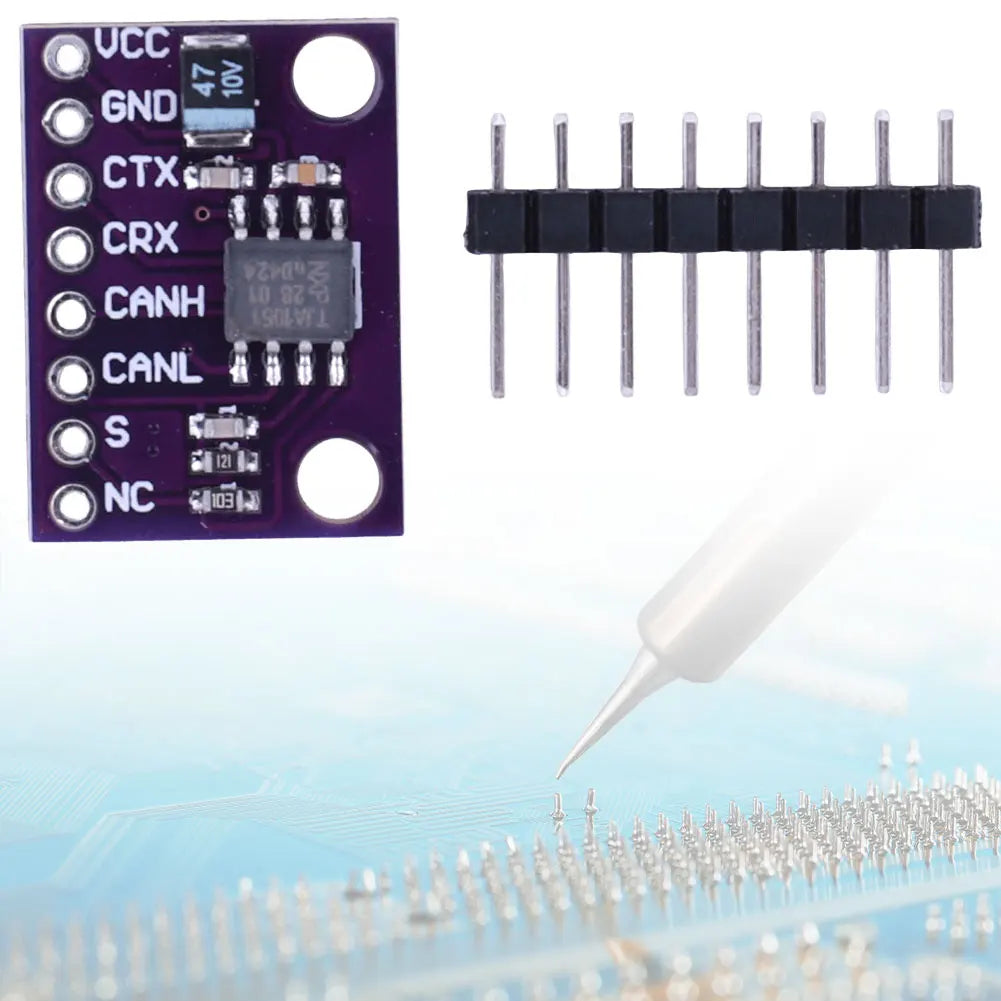

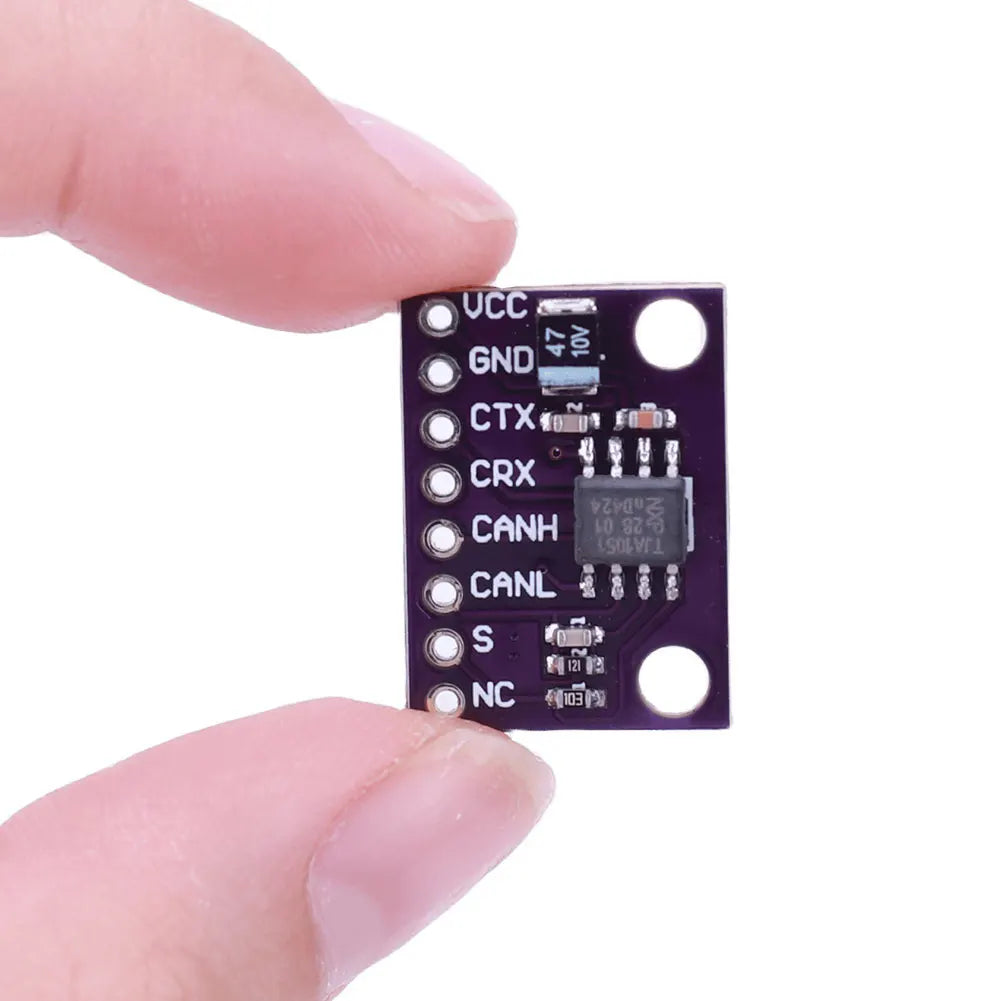

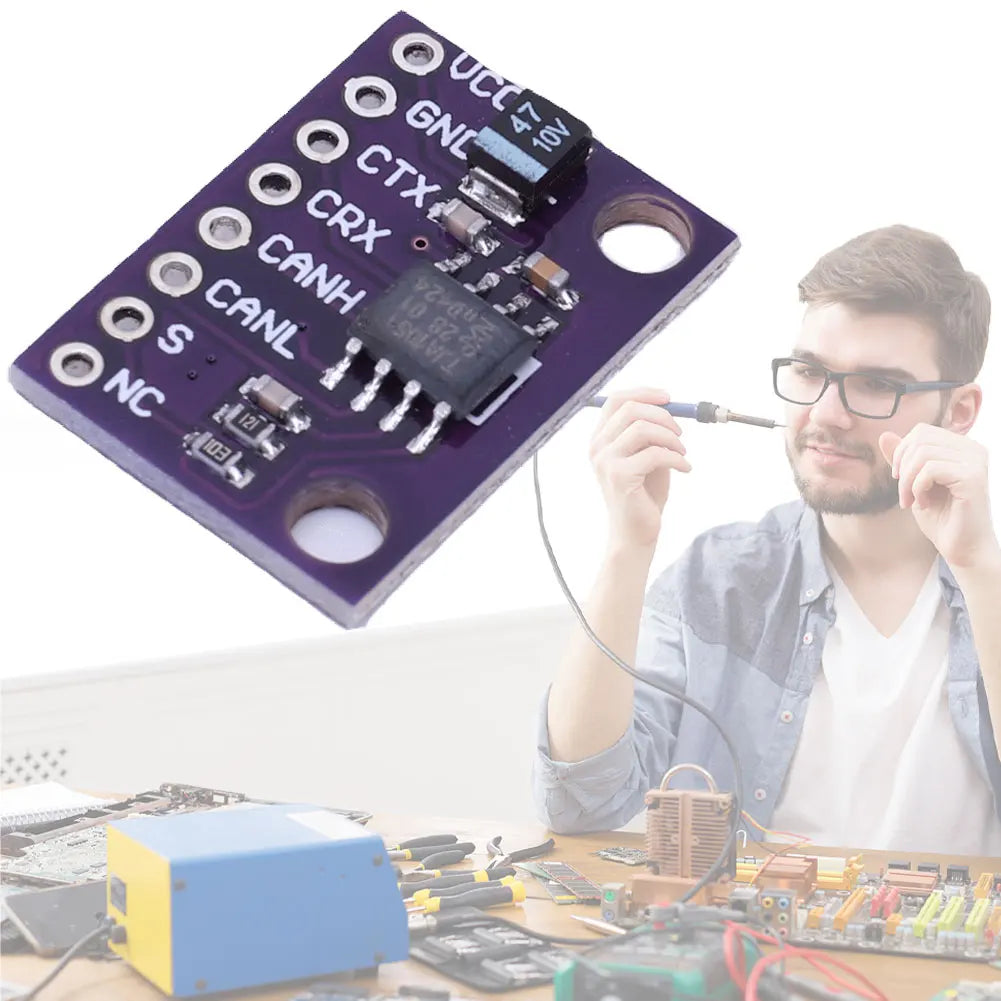

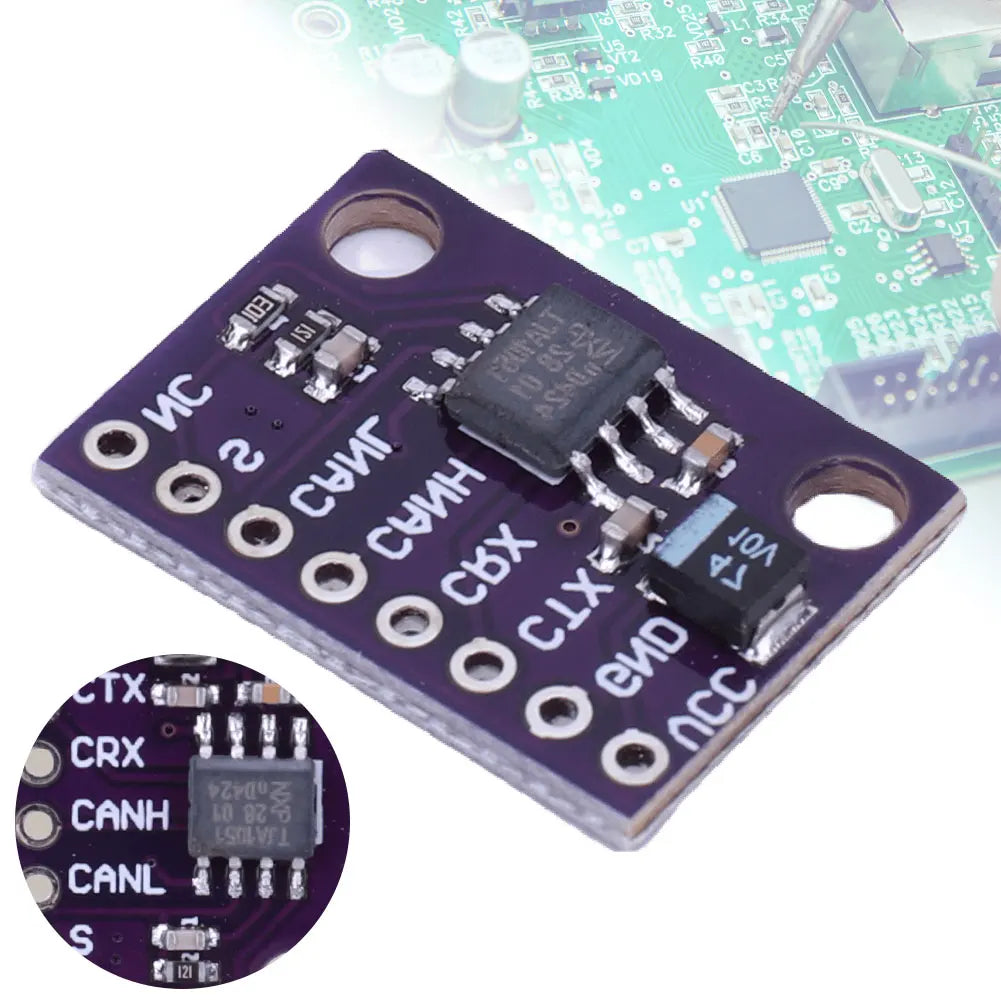

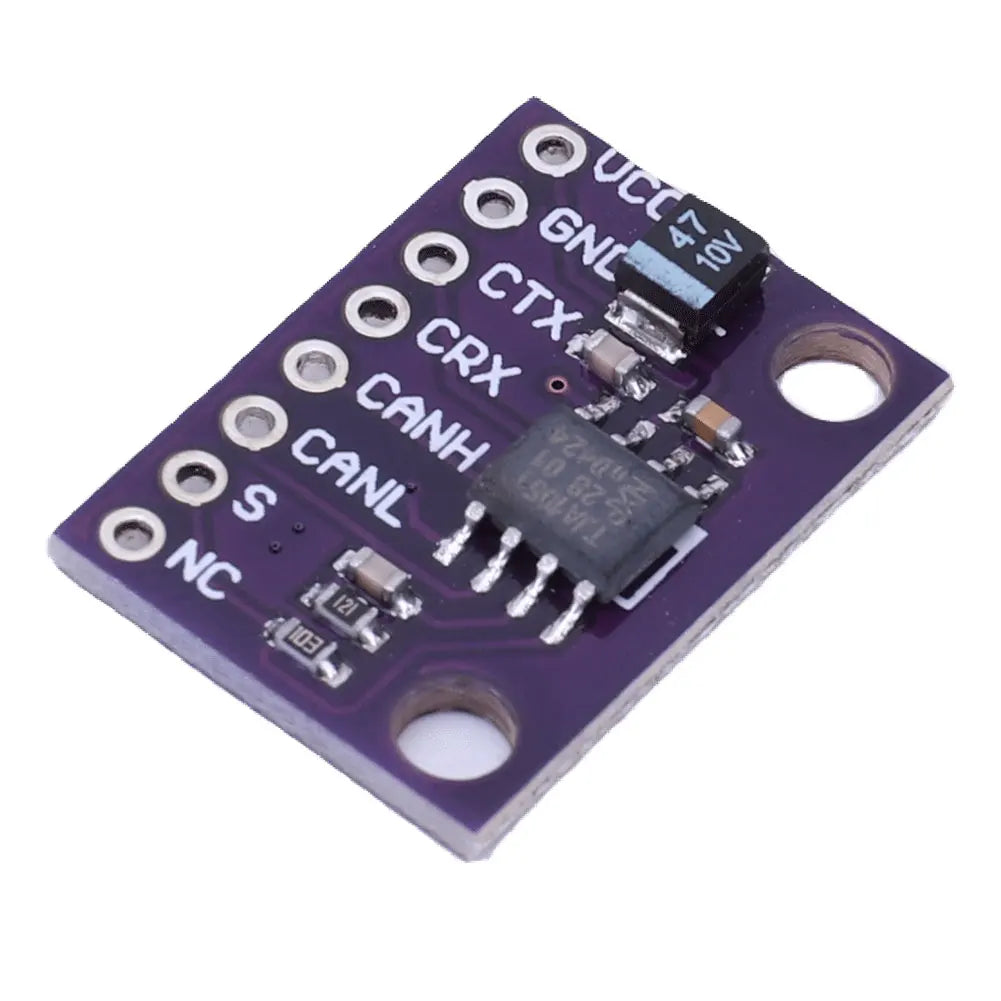

TJA1051T CAN Transceiver Module – High-Speed, Low-Power CAN Network Breakout Board

The TJA1051T CAN Transceiver Module (CJMCU-1051) is a compact, high-performance breakout board designed to bridge a CAN controller and a physical CAN bus with ease. Supporting data transmission rates of up to 1 Mbit/s, this module delivers fast, reliable differential transmit and receive functionality — making it an ideal choice for automotive, industrial, and embedded electronics projects.

Key Features

  • High-Speed Transfer Rate: Supports CAN bus communication at up to 1 Mbit/s, enabling rapid data transfer for time-sensitive applications.
  • Low Power Consumption: Built-in low-power operating modes help conserve energy and extend battery life in portable and automotive systems.
  • Outstanding EMC & ESD Performance: An upgraded successor to the TJA1050, the TJA1051T features improved electromagnetic compatibility (EMC) and electrostatic discharge (ESD) protection, ensuring robust operation in noisy environments.
  • High Interference Resistance: Effectively counters electromagnetic interference from surrounding electronics and harsh environments.
  • Low Transmission Delay: Minimized propagation delay for fast bus response times, critical in real-time control systems.
  • 3V–5V I/O Compatibility: The TJA1051T/3 and TJA1051TK/3 variants allow direct interfacing with both 3V and 5V microcontrollers — no level shifter required.
  • Bus Passive in Shutdown/Low-Power Mode: When powered down or in low-power mode, the transceiver remains transparent to the bus, preventing unintended interference.
  • Automotive-Grade Design: Engineered specifically for high-speed CAN network applications in the automotive industry.

Specifications

  • Chipset: NXP TJA1051T
  • Max Transfer Rate: 1 Mbit/s
  • Interface: CAN Bus (Differential)
  • I/O Voltage: 3V – 5V compatible

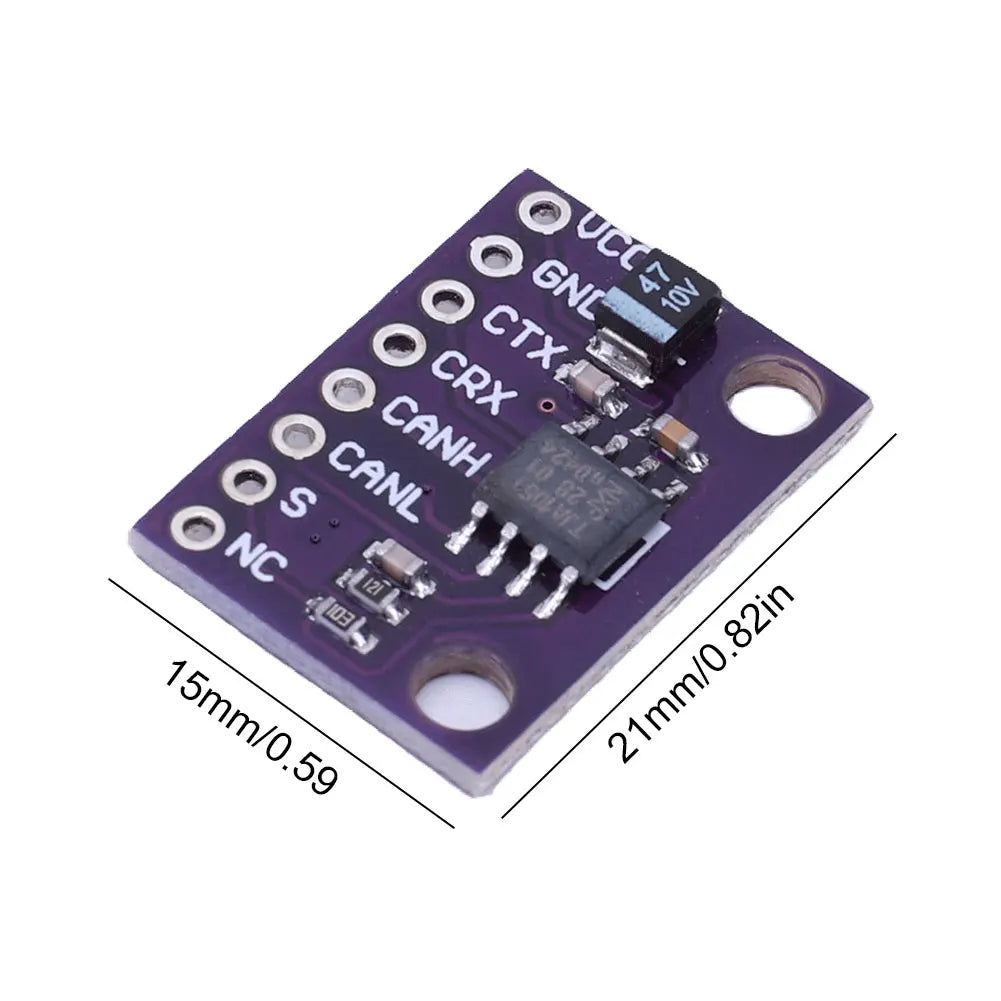

  • Module Dimensions: 21.00 × 15.00 × 3.00 mm (0.83 × 0.59 × 0.12 in)
  • Condition: New
  • Country of Origin: Made in Mainland China

What's in the Box

  • 1 × TJA1051T CAN Transceiver Module (CJMCU-1051)
  • 1 × Pin Header

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What is the maximum data transfer rate of the TJA1051T CAN Transceiver Module?

A: The TJA1051T CAN Transceiver Breakout Board supports data transmission rates of up to 1 Mbit/s, making it suitable for high-speed CAN bus communication in automotive and industrial applications.

Q: Is the TJA1051T CAN Transceiver Module compatible with both 3.3V and 5V microcontrollers?

A: Yes. The TJA1051T/3 and TJA1051TK/3 I/O ports are directly compatible with both 3V and 5V microcontrollers, so no additional level-shifting circuitry is needed for most common development boards such as Arduino or STM32.

Q: How does the TJA1051T differ from the TJA1050 CAN transceiver?

A: The TJA1051T is an upgraded version of the TJA1050. It offers improved electromagnetic compatibility (EMC) and electrostatic discharge (ESD) performance, better low-power mode behavior, and direct 3V–5V I/O compatibility — making it a more versatile and robust choice for modern CAN network designs.

Q: Can this module be used in automotive CAN bus projects?

A: Absolutely. The TJA1051T CAN Network Module is specifically designed for high-speed CAN applications in the automotive industry. It provides reliable differential signaling and strong interference resistance, making it well-suited for vehicle ECU communication, OBD interfaces, and related automotive electronics projects.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
