TQFP32 / LQFP48 QFP to DIP IC Test Socket & Programming Adapter
Take your IC programming and prototyping workflow to the next level with this versatile QFP to DIP adapter and IC test socket. Designed for engineers, hobbyists, and electronics technicians, this adapter bridges the gap between surface-mount QFP packages and standard DIP breadboard or programmer sockets — making chip testing, firmware flashing, and circuit prototyping fast and reliable.
Key Features

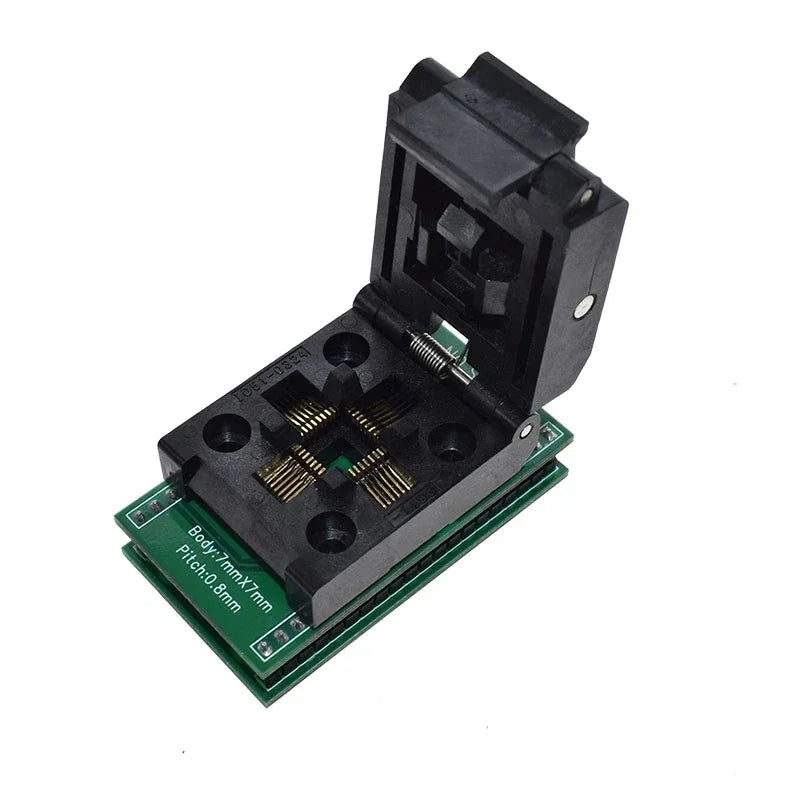

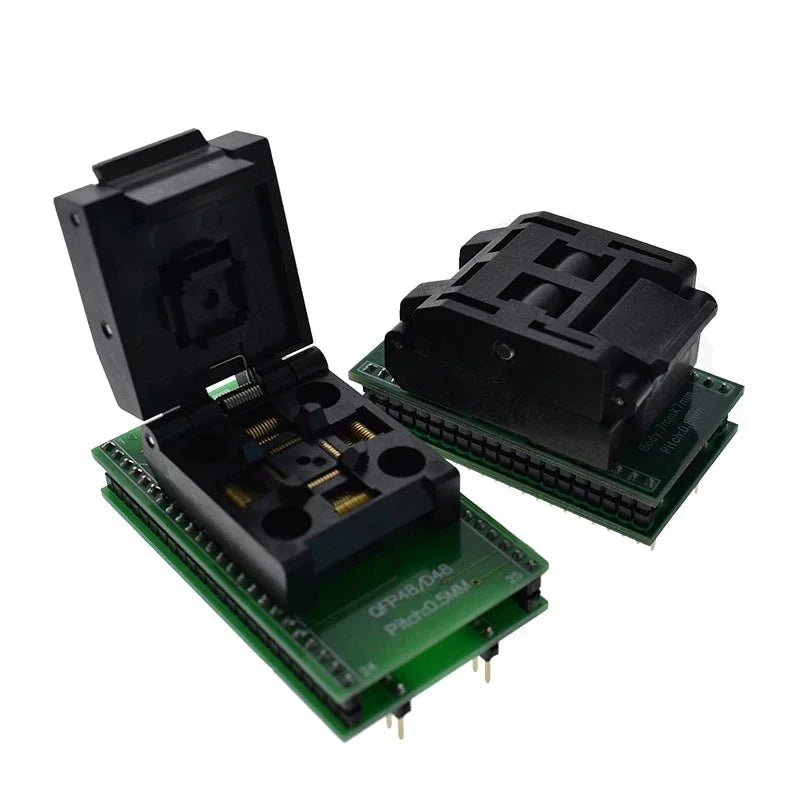

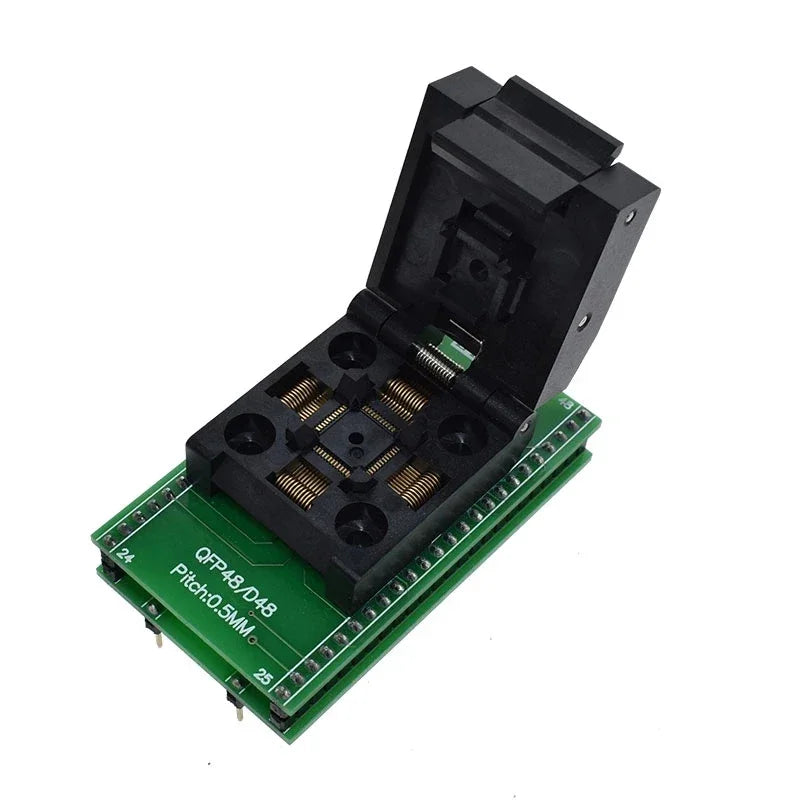

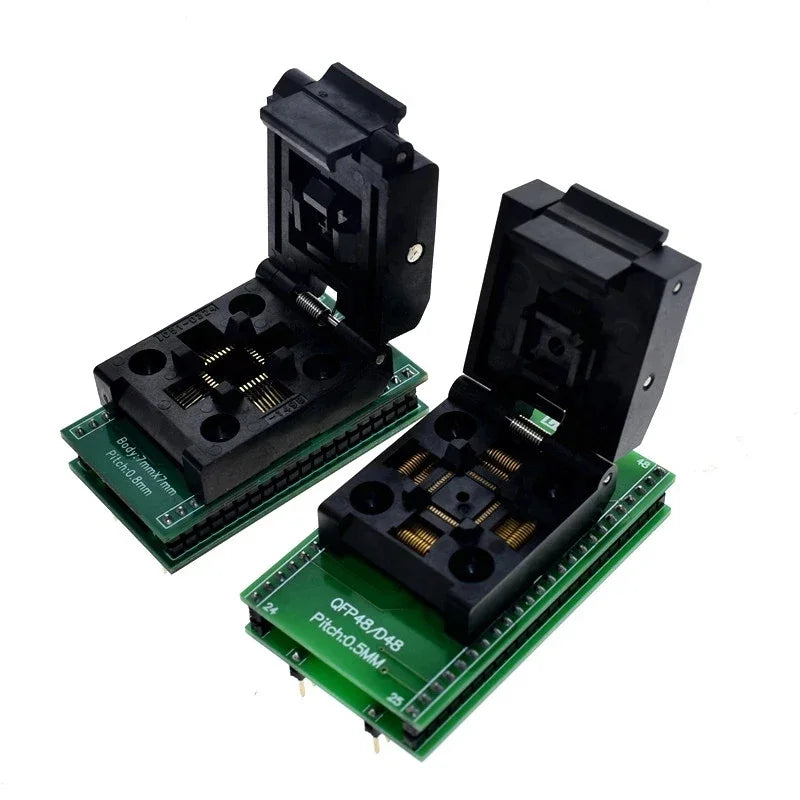

- Wide Compatibility: Supports QFP32 / TQFP32 to DIP32 and LQFP48 / TQFP48 / QFP48 to DIP48 conversions in one convenient adapter set.
- 0.5mm Pin Pitch: Precisely machined contacts accommodate the fine 0.5mm pitch of TQFP and LQFP surface-mount ICs with secure, low-resistance connections.
- IC Test Socket Design: The zero-insertion-force (ZIF) style socket allows repeated insertion and removal of ICs without pin damage — ideal for production testing and development.

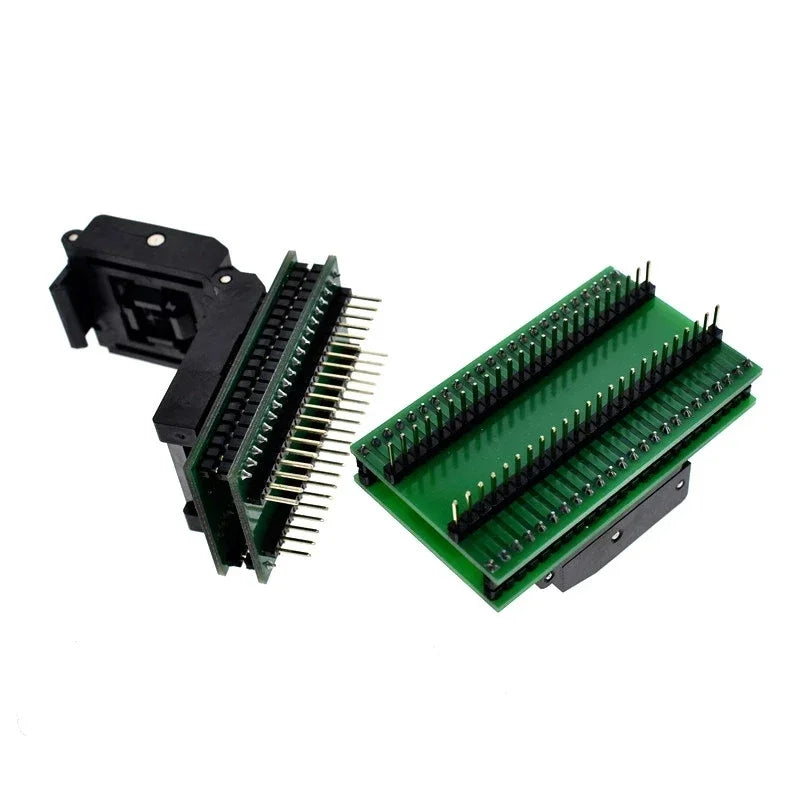

- DIP Output Footprint: Converts QFP surface-mount pinouts to standard DIP spacing, compatible with most universal programmers, breadboards, and development boards.
- Durable Construction: Built with quality materials for long service life across multiple programming and testing cycles.
- New Condition: Supplied brand new, ready for immediate use.
Specifications
| Application | QFP32, QFP48 IC Programming & Testing |
| Input Package | TQFP32 / QFP32 & LQFP48 / TQFP48 / QFP48 |
| Output Package | DIP32 & DIP48 |
| Pin Pitch | 0.5mm |
| Condition | New |
| Country of Origin | Made in China |
Who Is This For?
This adapter is an essential tool for electronics engineers, embedded systems developers, automotive ECU programmers, and PCB repair technicians who regularly work with surface-mount QFP microcontrollers and memory chips. It eliminates the need for hot-air soldering during development and testing phases, saving time and protecting components.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What IC packages are compatible with this QFP to DIP programming adapter?
A: This adapter supports TQFP32 / QFP32 chips (converting to DIP32) and LQFP48 / TQFP48 / QFP48 chips (converting to DIP48), all with a 0.5mm pin pitch. It is compatible with most standard universal programmers that accept DIP sockets.
Q: Can this IC test socket be used for repeated programming cycles?
A: Yes. The test socket is designed for repeated insertion and removal of ICs, making it ideal for batch programming, firmware development, and production-line testing without causing wear to the IC pins.
Q: Is this adapter compatible with universal programmers like the TL866 or similar devices?
A: This adapter outputs a standard DIP footprint, which is compatible with most universal IC programmers that accept DIP32 or DIP48 modules. Always verify your programmer's DIP socket size before use.
