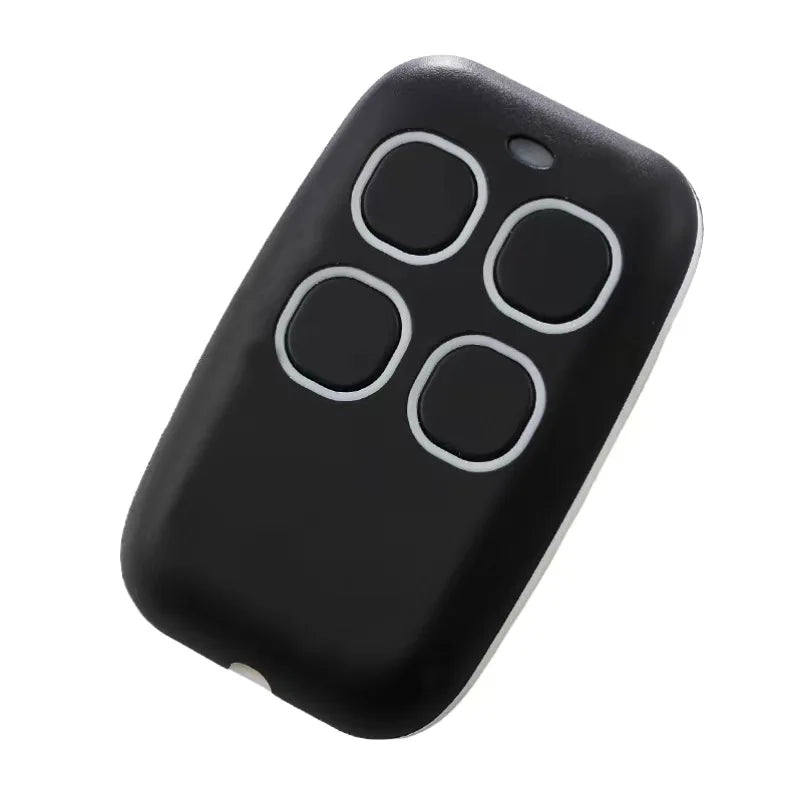

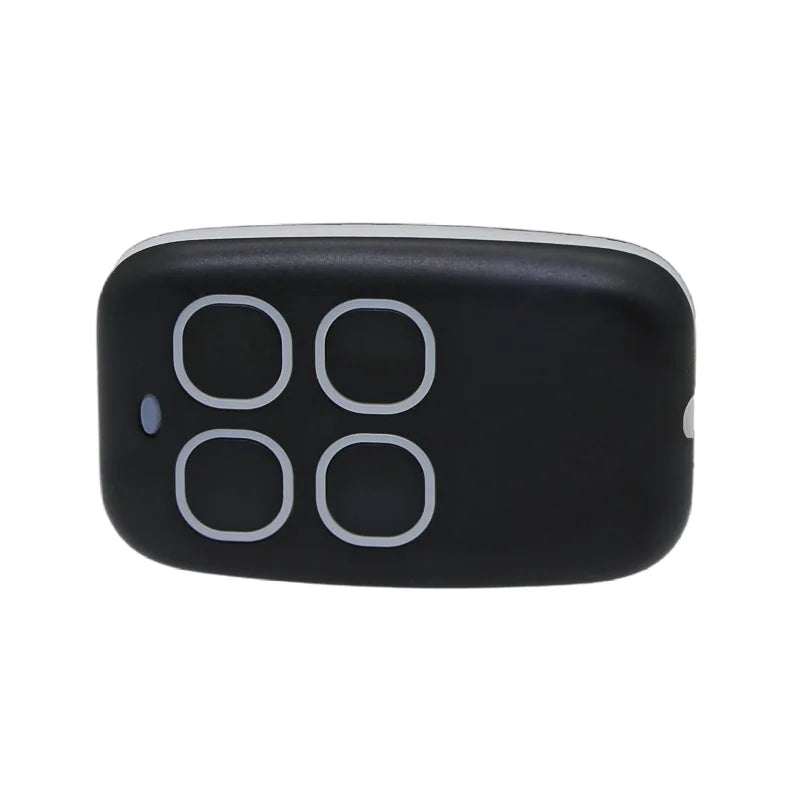

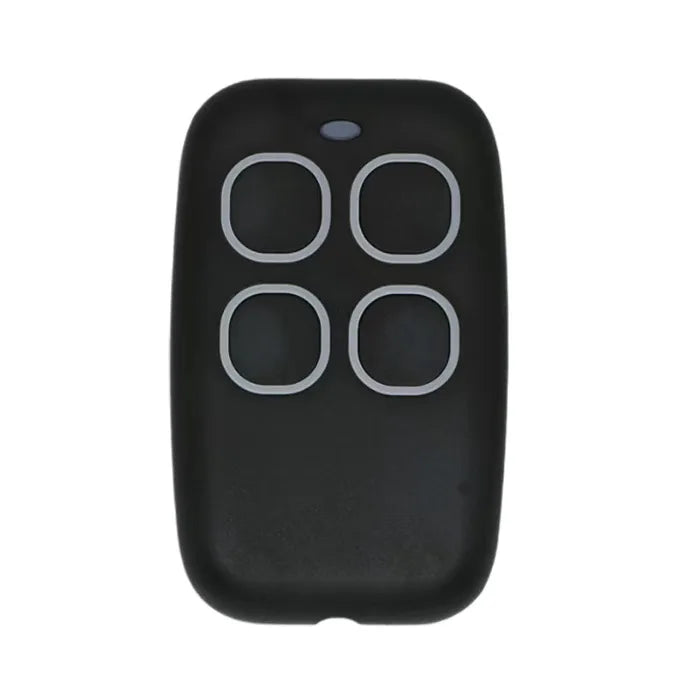

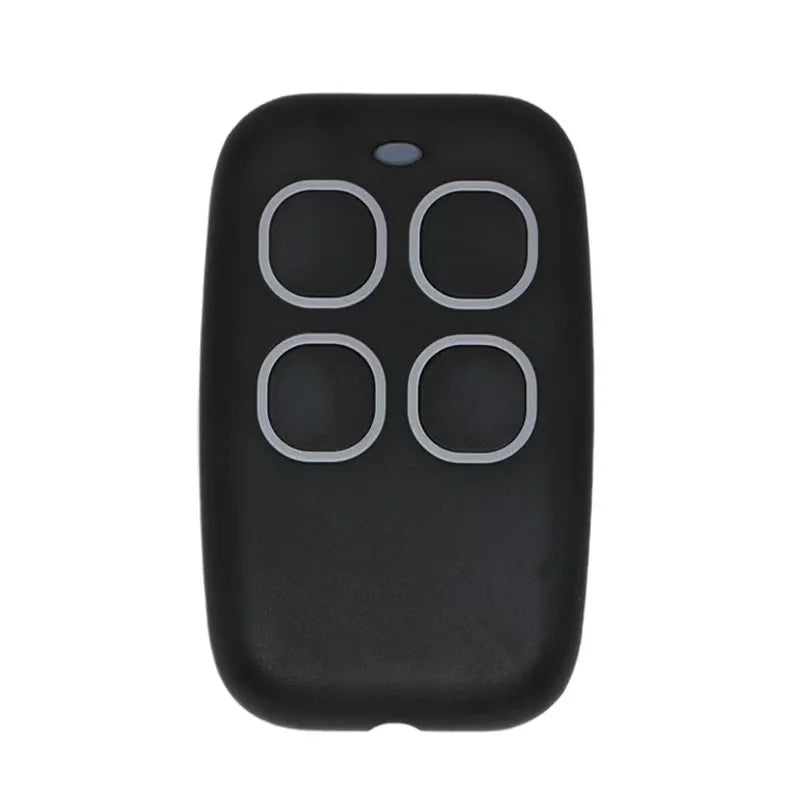

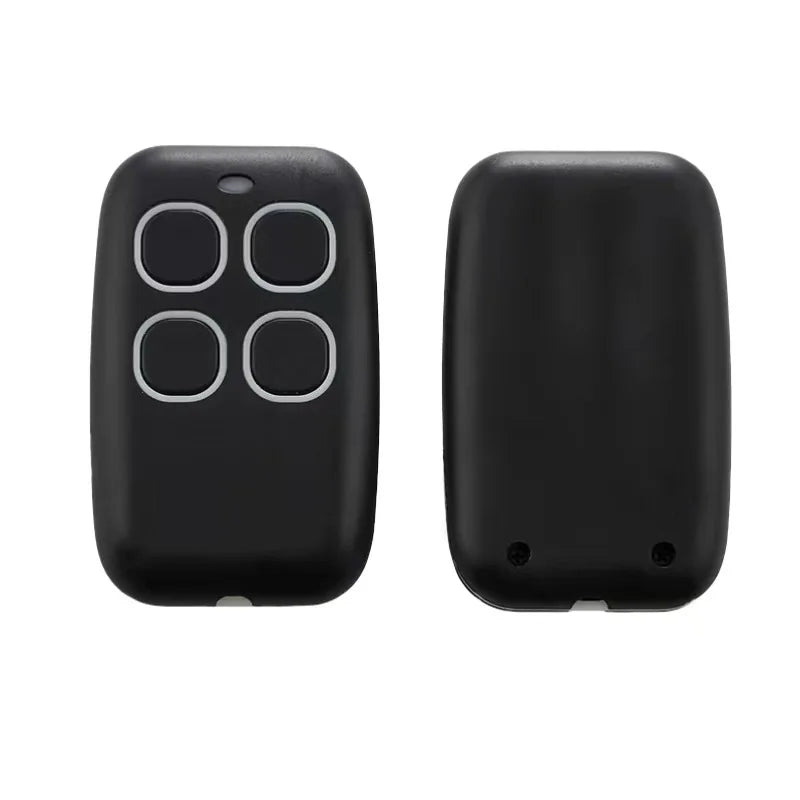

Universal 433MHz Garage Door Remote Duplicator – 4-Button
Universal 433MHz Garage Door Remote Duplicator – 4-Button
Universal 433MHz Garage Door & Gate Remote Control Duplicator
Take full control of your garage door or gate with this compact, easy-to-use 4-button universal remote control duplicator. Operating at 433MHz / 433.92MHz, it supports both rolling code and fixed code systems and uses a simple learning-code method to clone your existing remote in seconds — no programming tools or technical expertise required.
Key Features
- Wide Compatibility: Works with most major brands and models of garage door openers and gate controllers.
- Dual Frequency Support: Compatible with 433MHz and 433.92MHz systems.
- Rolling & Fixed Code: Handles both rolling (hopping) code and fixed code signals for broader coverage.
- 4 Programmable Buttons: Copy up to 4 different remote channels onto a single device — perfect for households with multiple access points.
- Learning Code Technology: Cloning is fast and intuitive; copy each button directly from your original remote.
- CE Certified: Meets CE certification standards for safety and electromagnetic compatibility.
- Compact & Portable: Lightweight key-fob design fits easily on a keyring or in your pocket.
- No High-Concern Chemicals: Built with materials free from high-concern chemical substances.
Compatible Chips
This duplicator can clone remotes using the following chip series:
2260 (all manufacturers), 2262 (all manufacturers), PT2264, 5326 (all manufacturers), SC5262, HT600, HT680, HT6207, HT6010, HT6012, HT6014, SMC918 series, 527 (all manufacturers), 1527 (all manufacturers), 2240 (all manufacturers), HCS101, HCS200/HCS201 (partial code), HCS300/HCS301 (partial code), and select single-chip systems.
How to Use
Clearing Stored Codes
Press the A and B keys simultaneously until the indicator light flashes. Without releasing button A, press button B three times — the light will flash again to confirm the memory has been cleared.
Copying a Remote
Hold the corresponding button on both your original remote and this duplicator at the same time. When the indicator light stays on, the copy is complete. Repeat for each additional button you wish to clone.
Specifications
| Buttons | 4 |
| Frequency | 433MHz / 433.92MHz |
| Code Type | Rolling Code & Fixed Code |
| Encoding Method | Learning Code |
| Color | White |
| Certification | CE |
| Country of Origin | Made in China |
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: Will this universal remote duplicator work with my existing garage door opener?
A: This 433MHz universal remote duplicator is compatible with the vast majority of garage door openers and gate controllers that operate at 433MHz or 433.92MHz and use fixed or rolling code chip sets such as 2260, 2262, 1527, HCS300/301, and many more. We recommend checking your original remote's frequency and chip type against the compatible chip list above before purchasing.
Q: How many remotes or access points can I program onto this duplicator?
A: The duplicator features 4 independent programmable buttons, so you can copy up to 4 different remote channels — for example, a garage door, a gate, and additional access points — all on one convenient key fob.
Q: Can this remote handle rolling codes (hopping codes)?
A: Yes. This universal garage remote duplicator supports both fixed code and rolling (hopping) code systems, including partial support for HCS200/201 and HCS300/301 series chips. Please note that some advanced rolling code systems may only be partially supported — refer to the compatible chip list for details.
Q: Is any special equipment needed to program this remote duplicator?
A: No special tools or equipment are needed. The built-in learning code method lets you clone your existing remote by simply holding both remotes and pressing the corresponding buttons simultaneously. The indicator light confirms when programming is successful.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
