Variable Frequency Generator Board with Digital Display
Meet your new go-to module for electronics experimentation and circuit workstation setups. This compact frequency generator board covers an impressively wide range — from 0.1Hz all the way up to 100,000Hz — with a four-digit digital display and front-panel keypad that make frequency entry fast, precise, and repeatable. Whether you're a hobbyist, maker, or electronics enthusiast, this board delivers clean sine wave output in a space-saving PCB format. Made in Mainland China.
Key Features
- Wide Frequency Range: Adjustable from 0.1Hz to 100,000Hz with a default output of 7.83Hz — dial in the exact frequency your project demands using the intuitive front keypad.
- Four-Digit Digital Display: The onboard display gives you a clear, real-time readout of your selected frequency, eliminating guesswork during experiment setups and repeat configurations.
- USB Power Input: Runs on a standard 5V USB supply at less than 0.5W — power it from a computer, common adapter, or portable power bank with ease.
- 3.5mm Output Connection: A convenient 3.5mm output port sits right beside the display and keypad, keeping your workspace tidy and your signal routing simple.

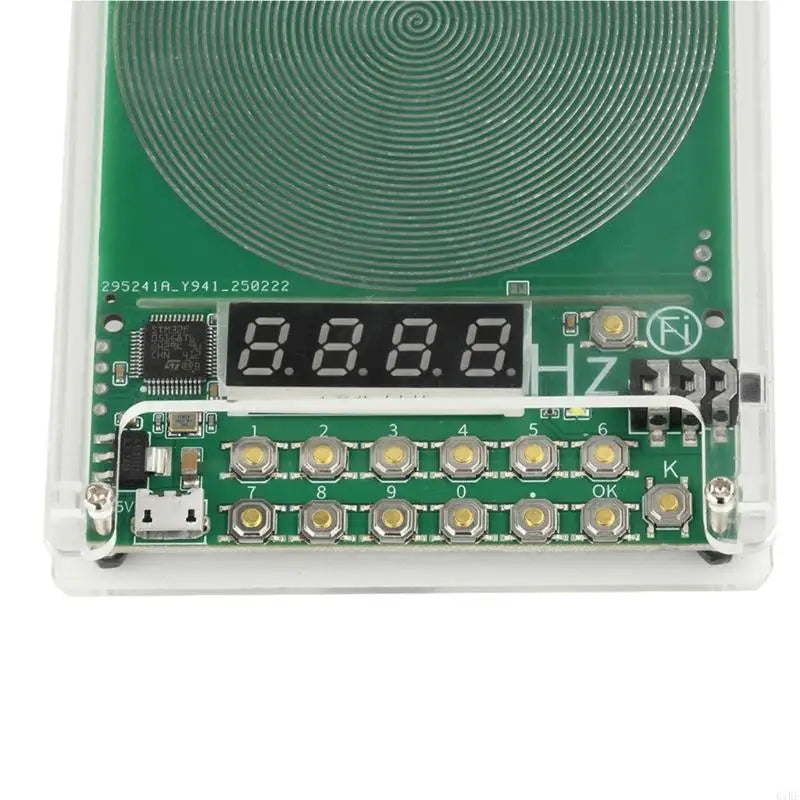

- Compact, Recognizable PCB Design: The large coil pattern and slim profile (just ~10 × 7 × 0.8 cm without casing) make this board an ideal fit for crowded benchtops and circuit workstations.

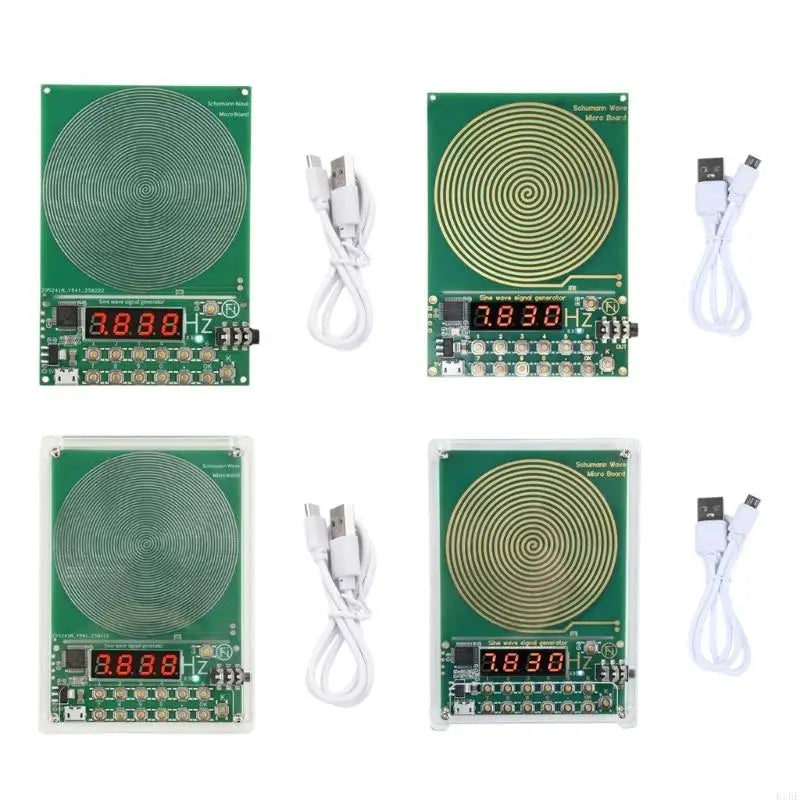

- Available in Silver or Gold Plated Styles: Choose the finish that suits your build aesthetic.
Specifications
| Frequency Range | 0.1Hz – 100,000Hz (Default: 7.83Hz) |
| Output Signal | Sine Wave |
| Power Input | 5V USB; <0.5W |
| Output Connection | 3.5mm Jack |
| Display | Four-Digit Digital Display |
| Material | ABS |
| Styles | Silver Plated / Gold Plated |

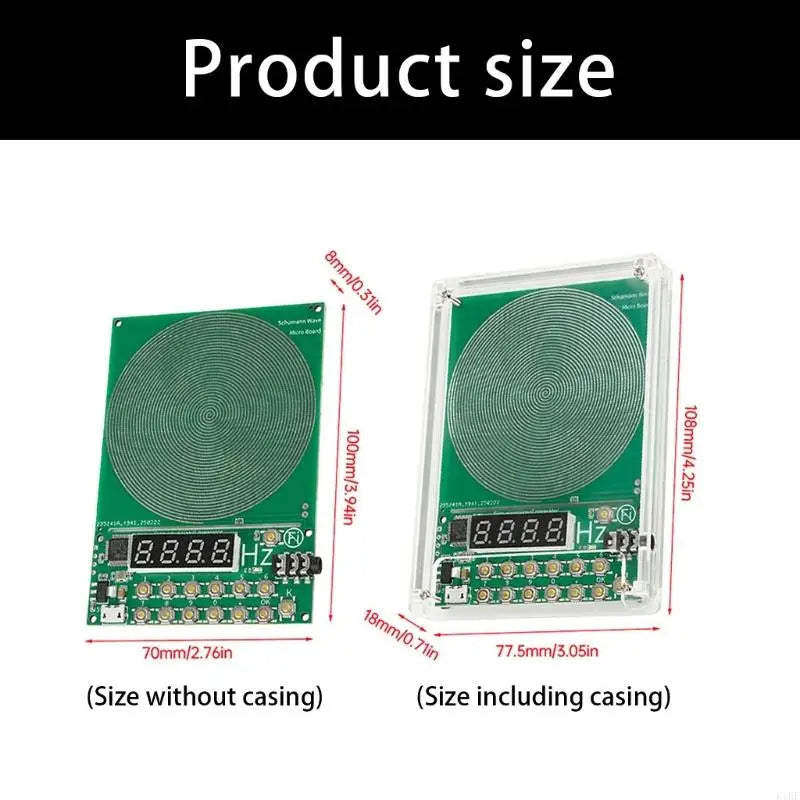

| Size (without casing) | ~10.00 × 7.00 × 0.80 cm (3.94 × 2.76 × 0.31 in) |
| Size (with casing) | ~10.80 × 7.75 × 1.80 cm (4.25 × 3.05 × 0.71 in) |
| Weight | ~120g (4.23 oz) |
| Country of Origin | Made in Mainland China |
Package Includes
- 1 × Variable Frequency Generator Board (with casing)
Notes
- Please allow ±1–2 cm tolerance due to manual measurement.
- Colors may appear slightly different depending on monitor settings.
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: What frequency range does this generator board support?

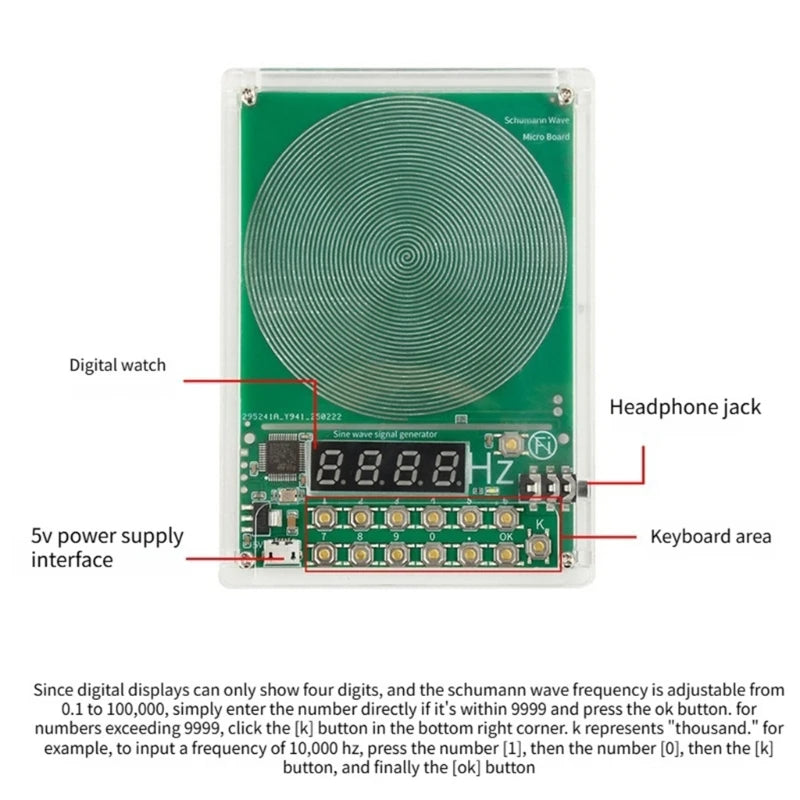

A: This variable frequency generator board is adjustable from 0.1Hz to 100,000Hz, with a default output of 7.83Hz. You can enter your desired frequency directly via the front keypad and confirm it on the four-digit digital display.
