VCNL4010 I2C Proximity & Light Detection Sensor Module
Take your electronics prototyping to the next level with the VCNL4010 Sensor Board — a compact, dual-function module that integrates both proximity detection and ambient light sensing into a single, easy-to-wire PCB. Whether you're building a responsive robotics project, experimenting with microcontroller interactions, or designing a smart appliance prototype, this module delivers reliable distance and lighting data in a space-saving form factor. Made in Mainland China.
Key Features
- Dual-Function Sensing: The VCNL4010 chip combines proximity detection and ambient light reading on a single board, reducing component count and simplifying your circuit layout.

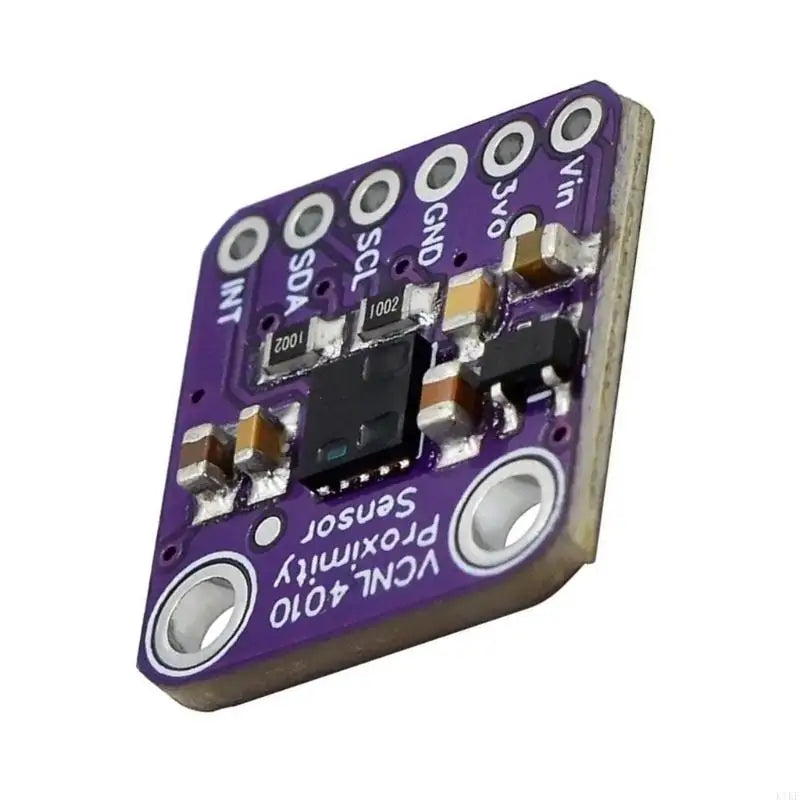

- I2C Interface: Clearly labeled SCL and SDA pads enable straightforward I2C wiring. Additional Vin, 3Vo, GND, and INT connection points are easy to identify during setup, minimizing wiring errors.
- Wide Voltage Compatibility: Supports 3.3V to 5V circuits, making it compatible with a broad range of popular microcontroller platforms and development boards.

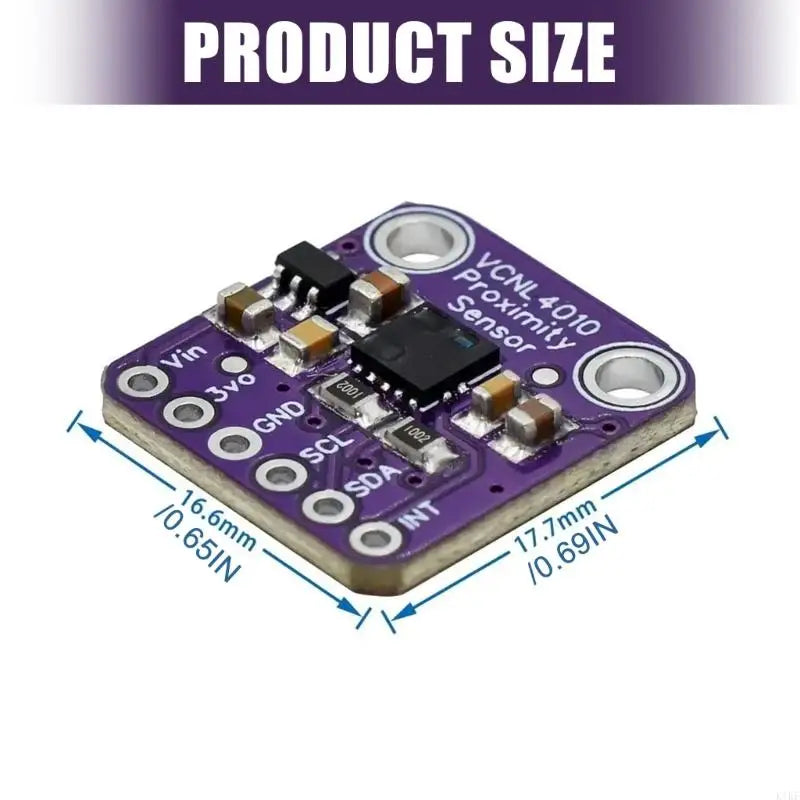

- Ultra-Compact PCB: Measures approximately 17.7mm × 16.6mm (0.69" × 0.65"), perfect for space-constrained prototypes and embedded designs.
- Versatile Project Use: Ideal for microcontroller detection projects, robotics concepts, responsive electronics experiments, and low-power interaction designs requiring light or proximity input.
- Ready-to-Use Design: Comes with all components pre-mounted on the PCB and includes two board mounting holes for easy integration into your enclosure or chassis.
Specifications
| Sensor IC | VCNL4010 |
| Interface | I2C (SCL / SDA) |
| Operating Voltage | 3.3V – 5V |
| Board Dimensions | Approx. 17.7mm × 16.6mm (0.69" × 0.65") |

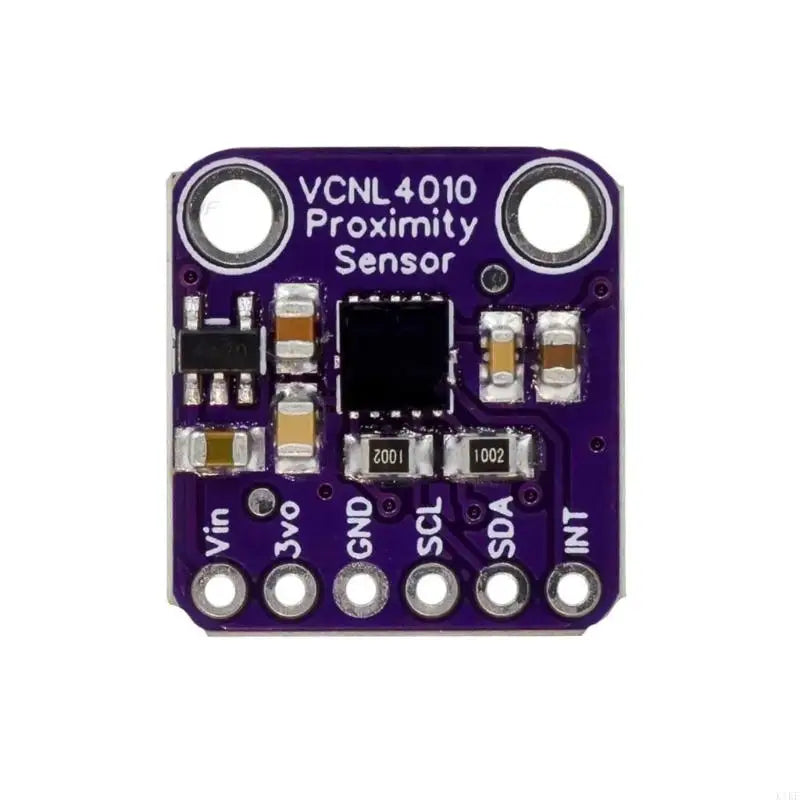

| Connection Points | Vin, 3Vo, GND, SCL, SDA, INT |
| Mounting | 2 × Board Holes |
| Quantity | 1 Piece |
| Country of Origin | Made in Mainland China |
Package Contents
- 1 × VCNL4010 Light & Proximity Detection Module (components pre-mounted)
Note: Wires, microcontrollers, tools, and other accessories are not included. Please allow ±1–2cm measurement tolerance due to manual measurement. Colors may vary slightly between monitors and actual product.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What microcontrollers are compatible with the VCNL4010 I2C sensor module?
A: The VCNL4010 module communicates over I2C and supports 3.3V to 5V operating voltages, making it compatible with a wide range of popular microcontrollers including Arduino (Uno, Nano, Mega), Raspberry Pi, ESP8266, ESP32, and other I2C-capable development boards. Simply connect the SCL, SDA, Vin, and GND pins to your microcontroller's corresponding I2C and power pins to get started.
Q: What is the detection range of the VCNL4010 proximity sensor?

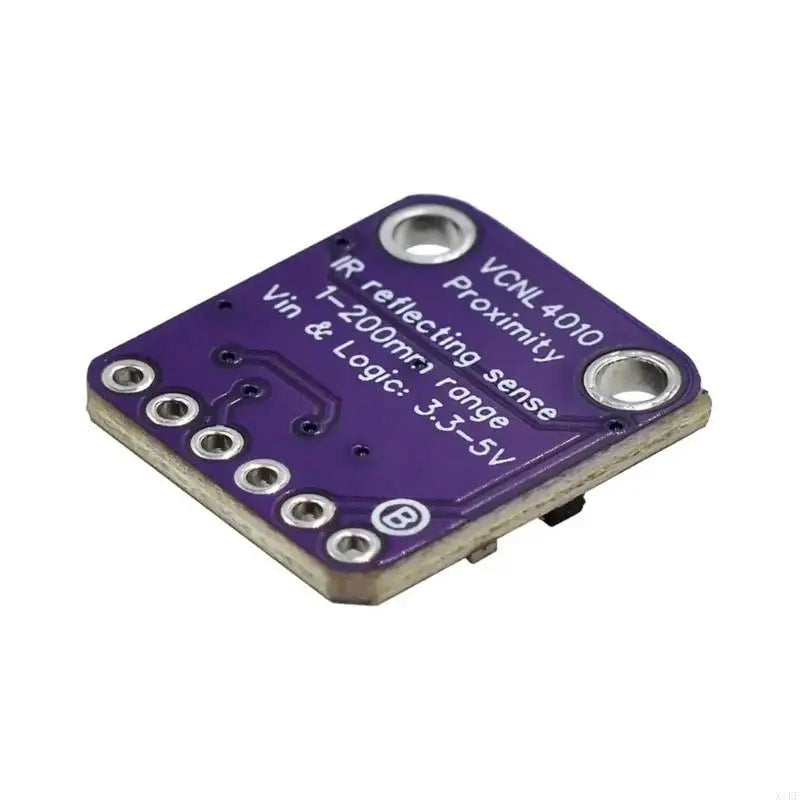

A: The VCNL4010 sensor is capable of proximity detection up to approximately 200mm (about 20cm), depending on the reflectivity of the target object and ambient lighting conditions. It also provides 16-bit ambient light readings, making it well-suited for applications that require both distance awareness and lighting feedback in a single compact module.
Q: Do I need any special libraries to use this VCNL4010 module?
A: Yes, for most platforms such as Arduino, you can use community-maintained VCNL4010 libraries (available through the Arduino Library Manager or GitHub) to quickly read proximity and light data over I2C. The module's standard I2C pinout (SCL/SDA) ensures broad library and platform support, making integration into your prototyping project straightforward.
