W1209 DC 5V-12V Digital Temperature Controller Switch
W1209 DC 5V-12V Digital Temperature Controller Switch
W1209 Digital Temperature Controller — Precise, Versatile & Easy to Use
The W1209 DC 5V–12V Digital Temperature Controller is a compact, highly accurate thermostat switch designed for a wide range of heating and cooling applications. Whether you're managing an incubator, aquarium heater, greenhouse, reptile enclosure, or DIY electronics project, this all-in-one thermometer and control switch gives you reliable, programmable temperature management in a slim, low-profile module.
Key Features
- Dual-Mode Control: Supports both heating and cooling modes — easily switch between them to suit your application.
- Wide Voltage Compatibility: Operates on DC 5V to 12V, making it compatible with most standard power supplies and DIY setups.
- High Accuracy: Built-in NTC sensor delivers precise temperature readings with ±0.1°C resolution and tight tolerances.

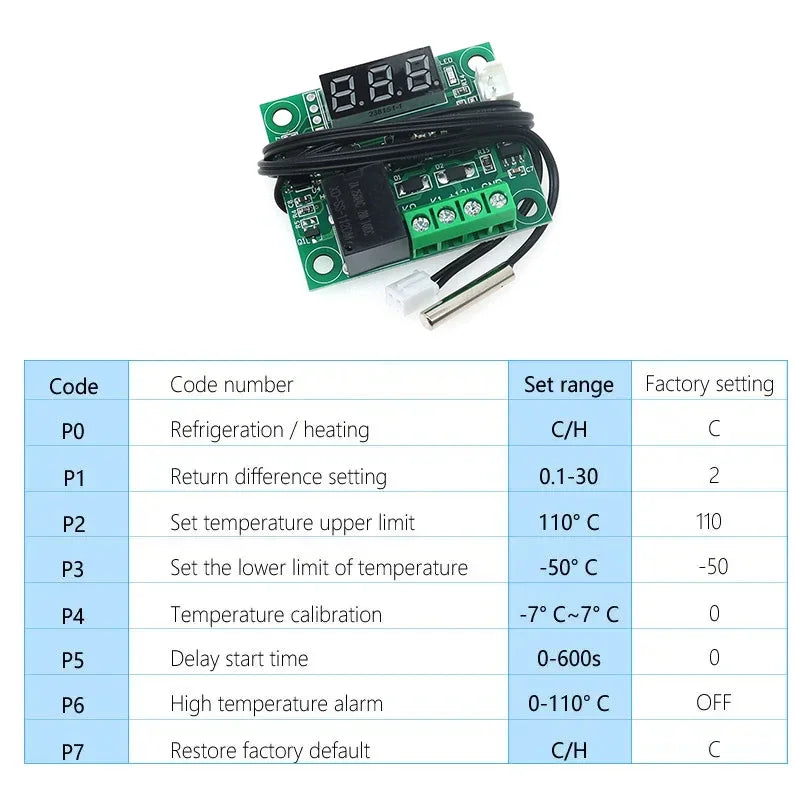

- Programmable Set Point: Configure your desired trigger temperature and hysteresis via the onboard buttons — no external programmer needed.
- Clear LED Display: Bright 3-digit LED readout for easy, at-a-glance temperature monitoring.

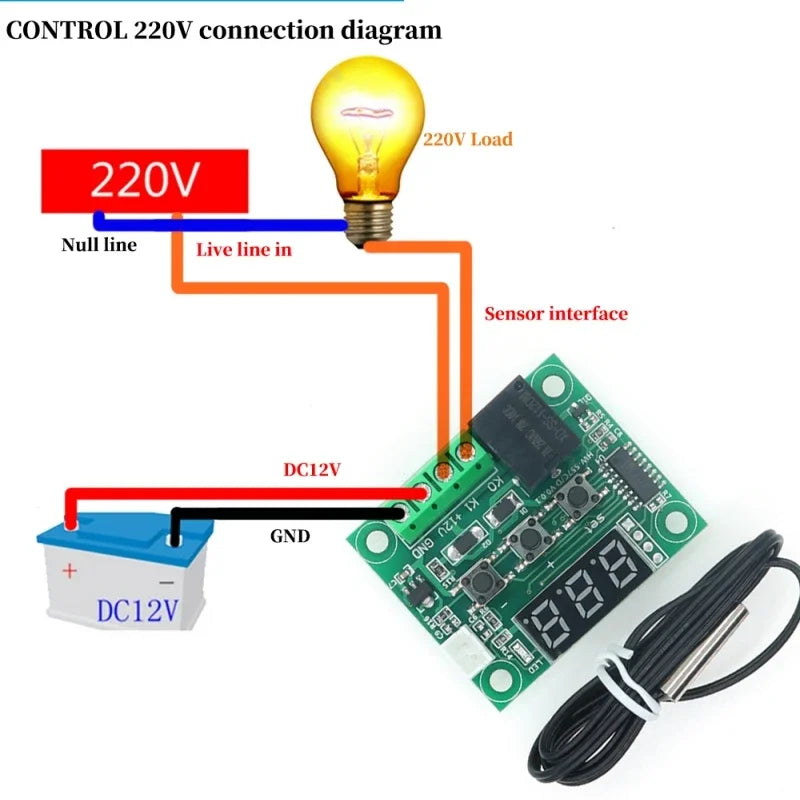

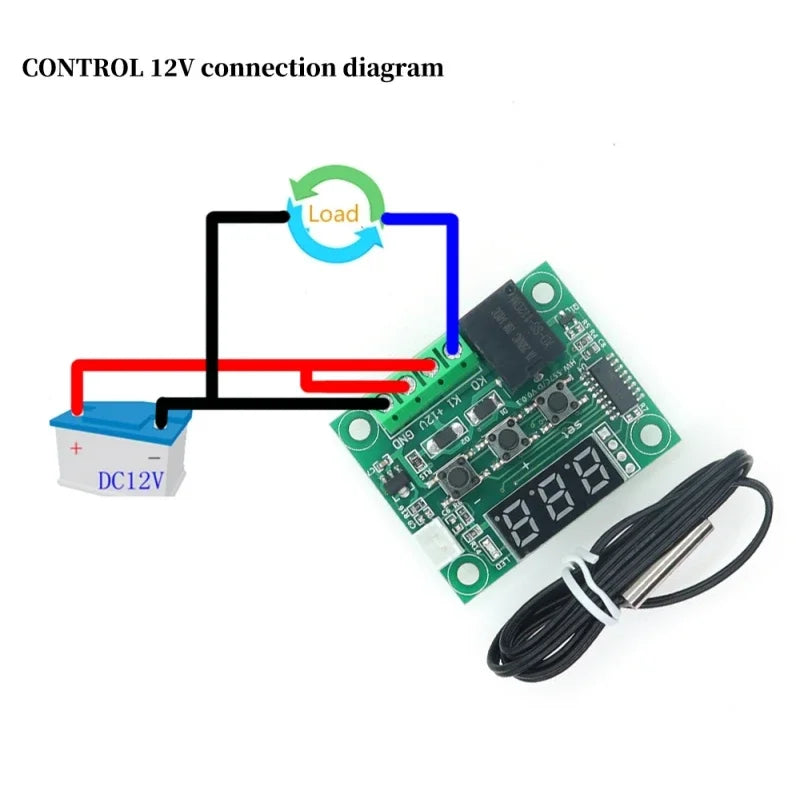

- Relay Output: Integrated relay switch allows direct control of heating elements, cooling fans, pumps, and more.
- Compact Form Factor: Small PCB size makes it ideal for panel mounting or embedding in enclosures.
- Wide Temperature Range: Measures and controls from -50°C to +110°C, covering virtually any everyday use case.
Technical Specifications
- Input Voltage: DC 5V – 12V
- Measurement Range: -50°C to +110°C
- Resolution: 0.1°C
- Control Mode: Heating / Cooling (selectable)
- Relay Capacity: 10A / 250VAC
- Display: 3-digit red LED

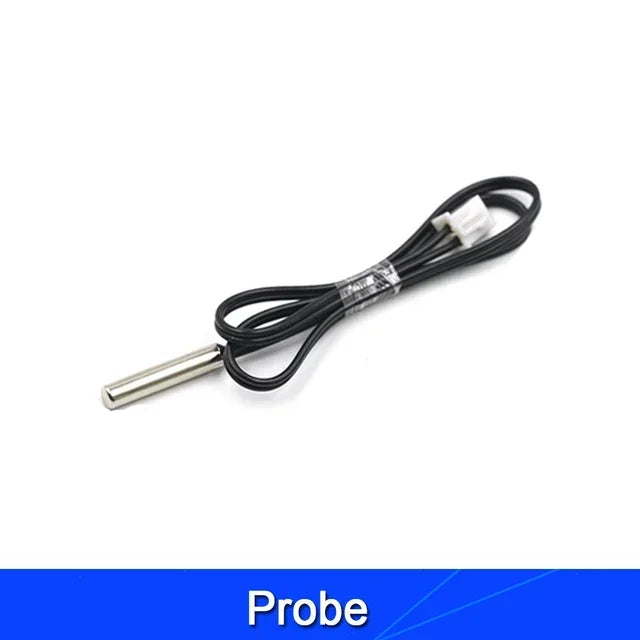

- Sensor: NTC waterproof probe (included)
- Condition: New
- Made in Mainland China
Common Applications
- Incubators & hatchers
- Aquariums & fish tanks
- Reptile & terrarium heating
- Greenhouses & grow tents
- Home brewing & fermentation chambers
- DIY electronics & automation projects
- HVAC & fan control systems
What's in the Box
- 1 × W1209 Temperature Controller Module
- 1 × NTC Waterproof Temperature Probe Sensor
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What is the difference between heating and cooling mode on the W1209 temperature controller?
A: In heating mode, the relay activates when the measured temperature drops below your set point, turning on a heater until the desired temperature is reached. In cooling mode, the relay activates when the temperature rises above the set point, triggering a fan or cooling device. You can switch between modes by pressing and holding the set button during configuration.
Q: What voltage does the W1209 DC temperature controller require?
A: The W1209 temperature controller switch operates on DC 5V to 12V, making it compatible with USB power banks, standard 12V adapters, and most DIY electronics power supplies. Ensure your supply can deliver sufficient current for both the controller and any relay-driven load.
Q: Can the W1209 thermostat control both heating and cooling devices at the same time?
A: The W1209 features a single relay output, so it controls one device at a time — either a heating element or a cooling device, depending on the mode selected. For independent simultaneous heating and cooling control, two separate W1209 modules would be needed, each configured for its respective mode.
Q: Is the temperature probe waterproof?
A: Yes, the included NTC temperature probe is waterproof and suitable for use in wet or humid environments such as aquariums, hydroponic systems, and fermentation setups.
