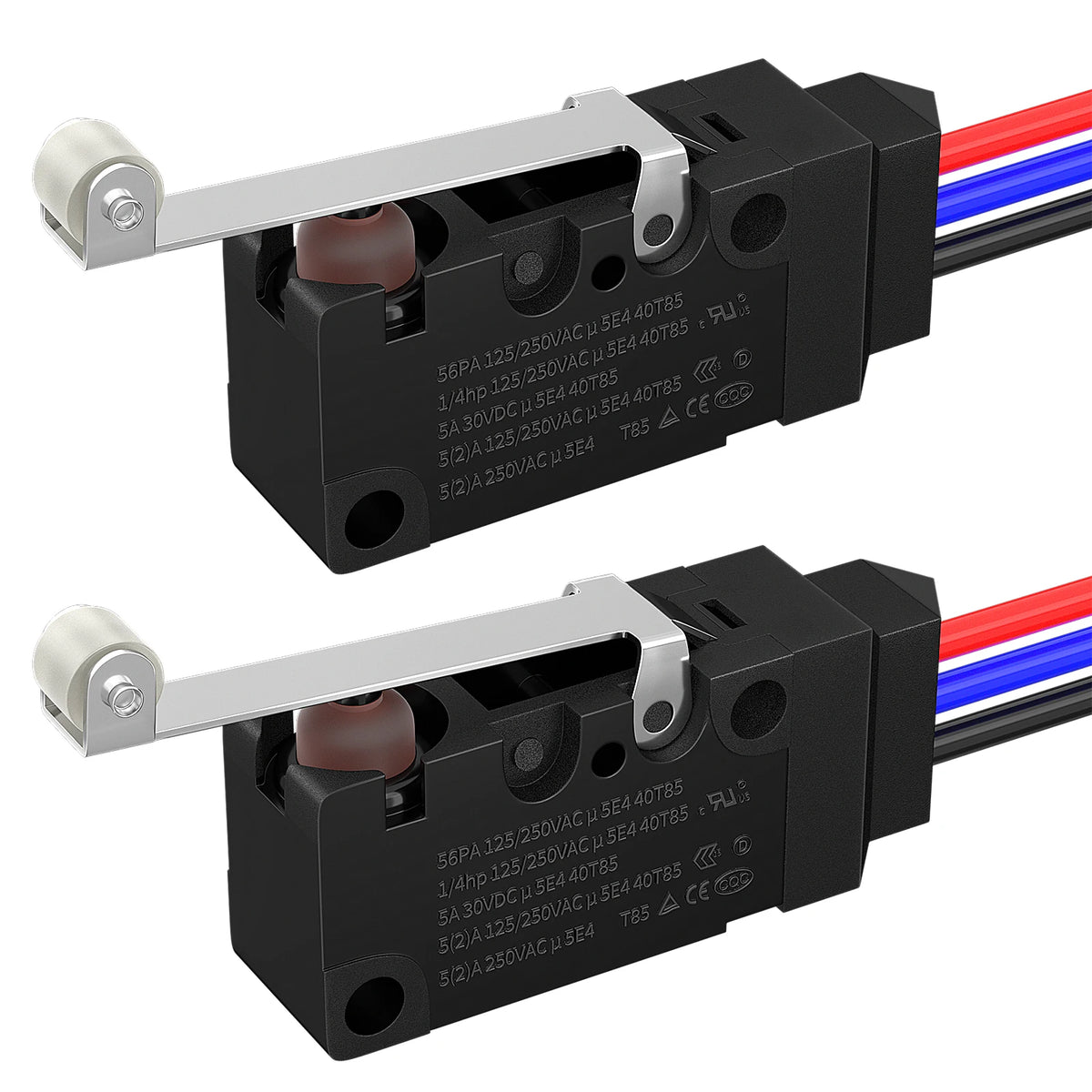

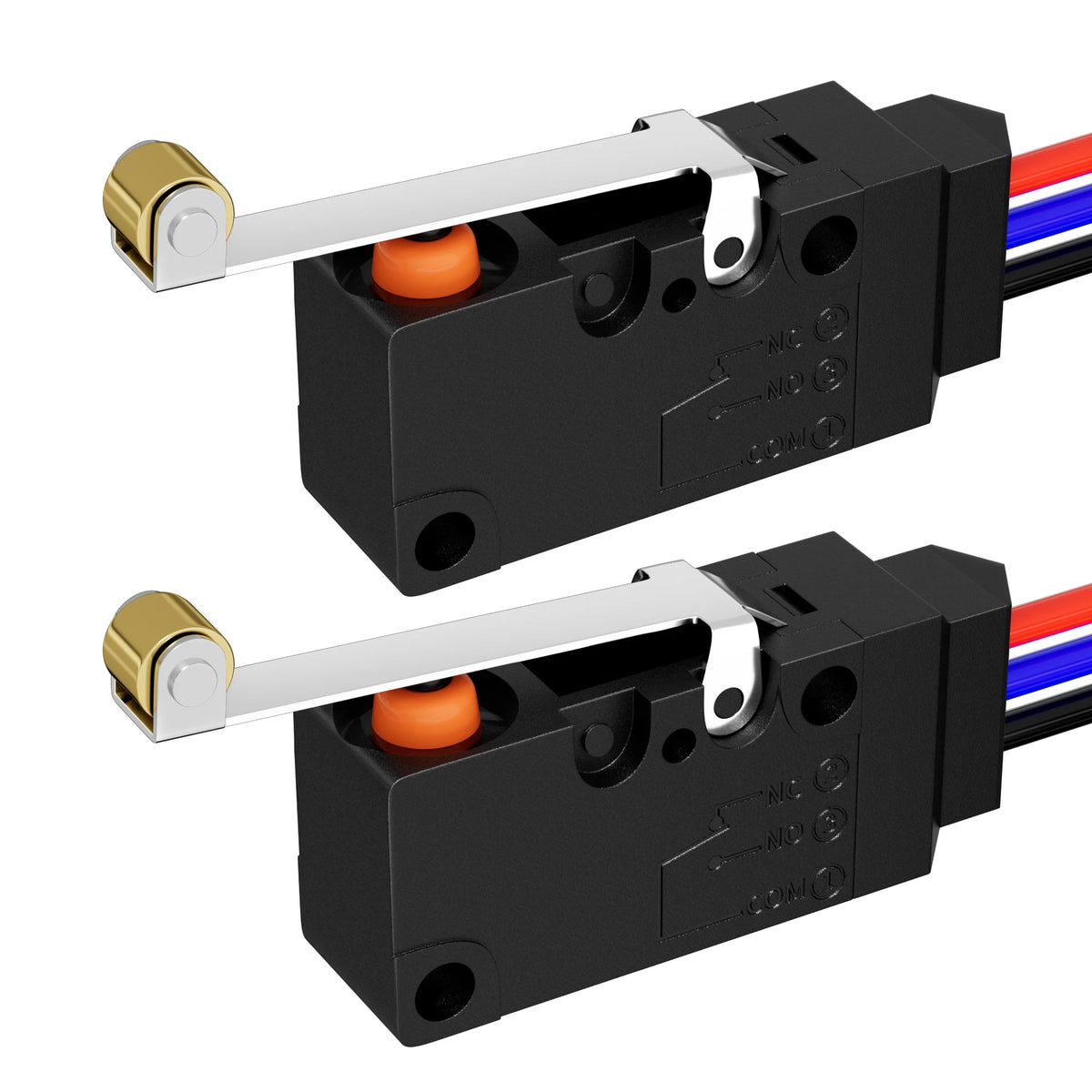

Daiertek 2-Pack Waterproof Micro Limit Switch with Roller Lever — SPDT, Pre-Wired, IP67
Keep your electronics, CNC machines, and DIY projects running with precision. These Daiertek IP67 waterproof micro limit switches feature a long straight roller lever, SPDT 3-pin configuration, and a convenient pre-wired design — ready to connect right out of the box. Whether you're building automation systems or upgrading household appliances, this 2-pack delivers reliable, snap-action switching in demanding environments.
Made in Mainland China.
Key Features
- SPDT 3-Pin Design: 1 Normally Open (NO) / 1 Normally Closed (NC) contact configuration. Rated at 10A 125/250V AC; 0.25A 250VDC; 5A 30VDC — versatile for a wide range of electrical applications.

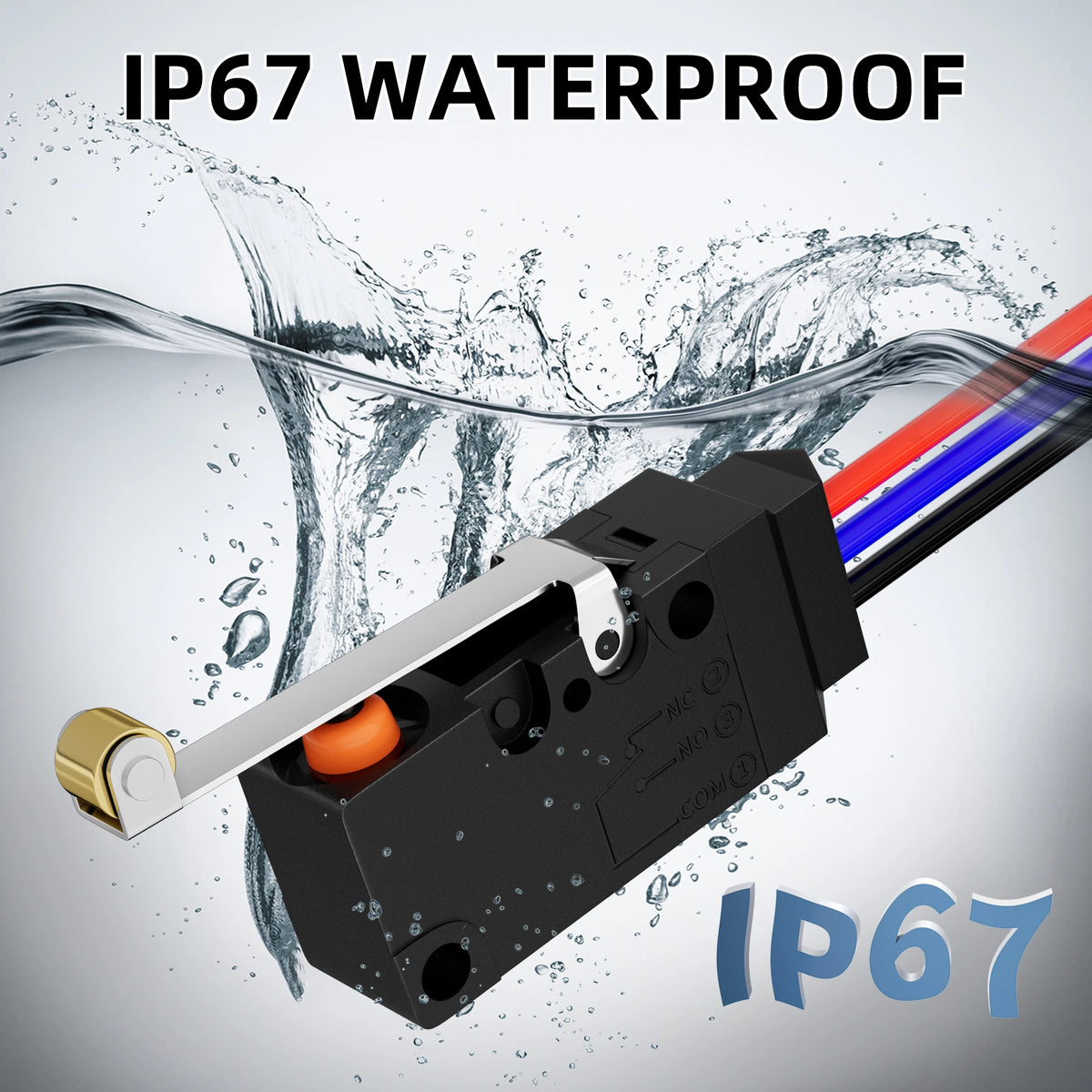

- IP67 Waterproof & Dustproof: Fully sealed housing protects against dust ingress and temporary water submersion, making these switches suitable for both indoor and outdoor use in challenging environments.

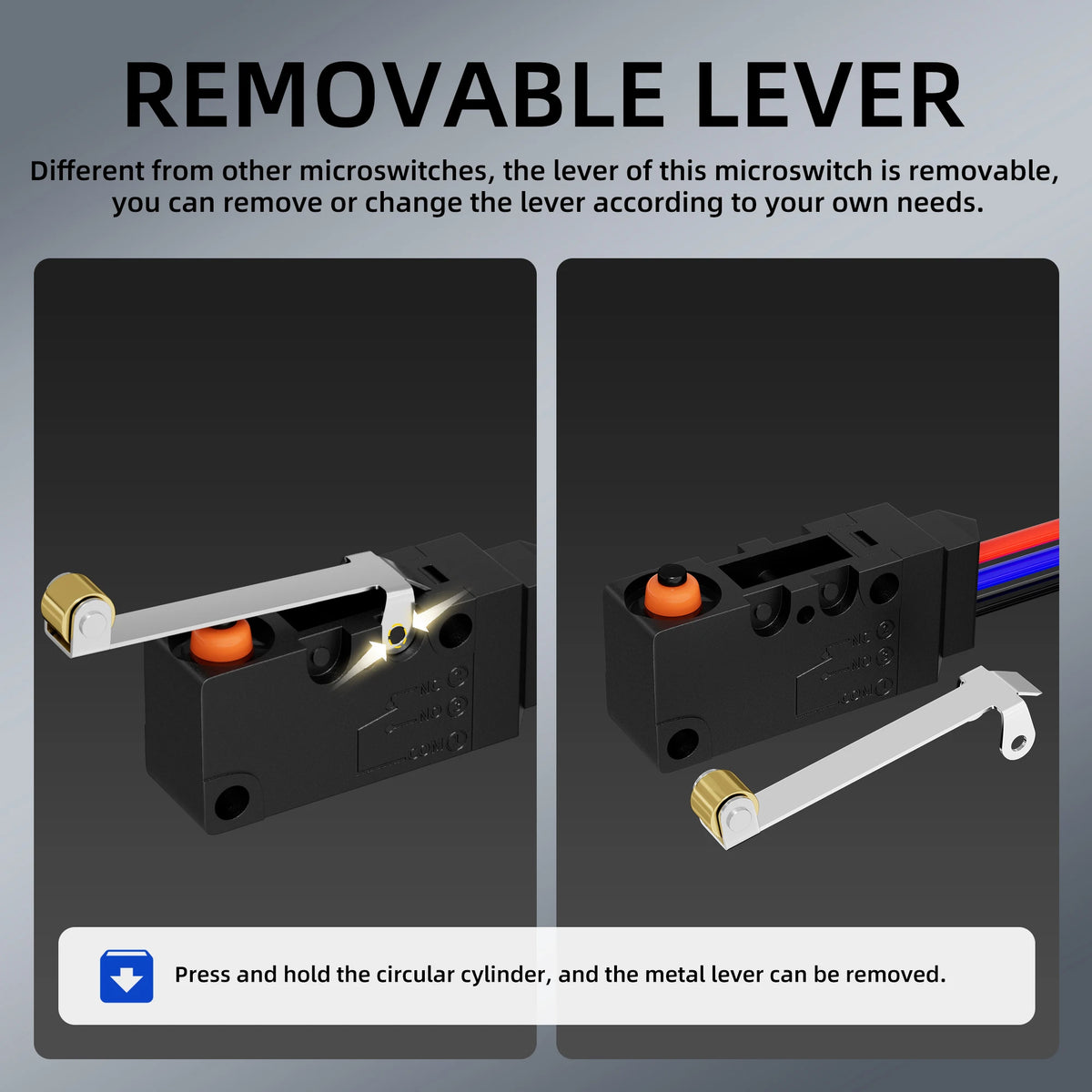

- Removable Roller Lever: Unlike standard microswitches, the long straight roller lever on each unit is fully removable. Swap or remove it to suit your specific mounting and actuation needs.

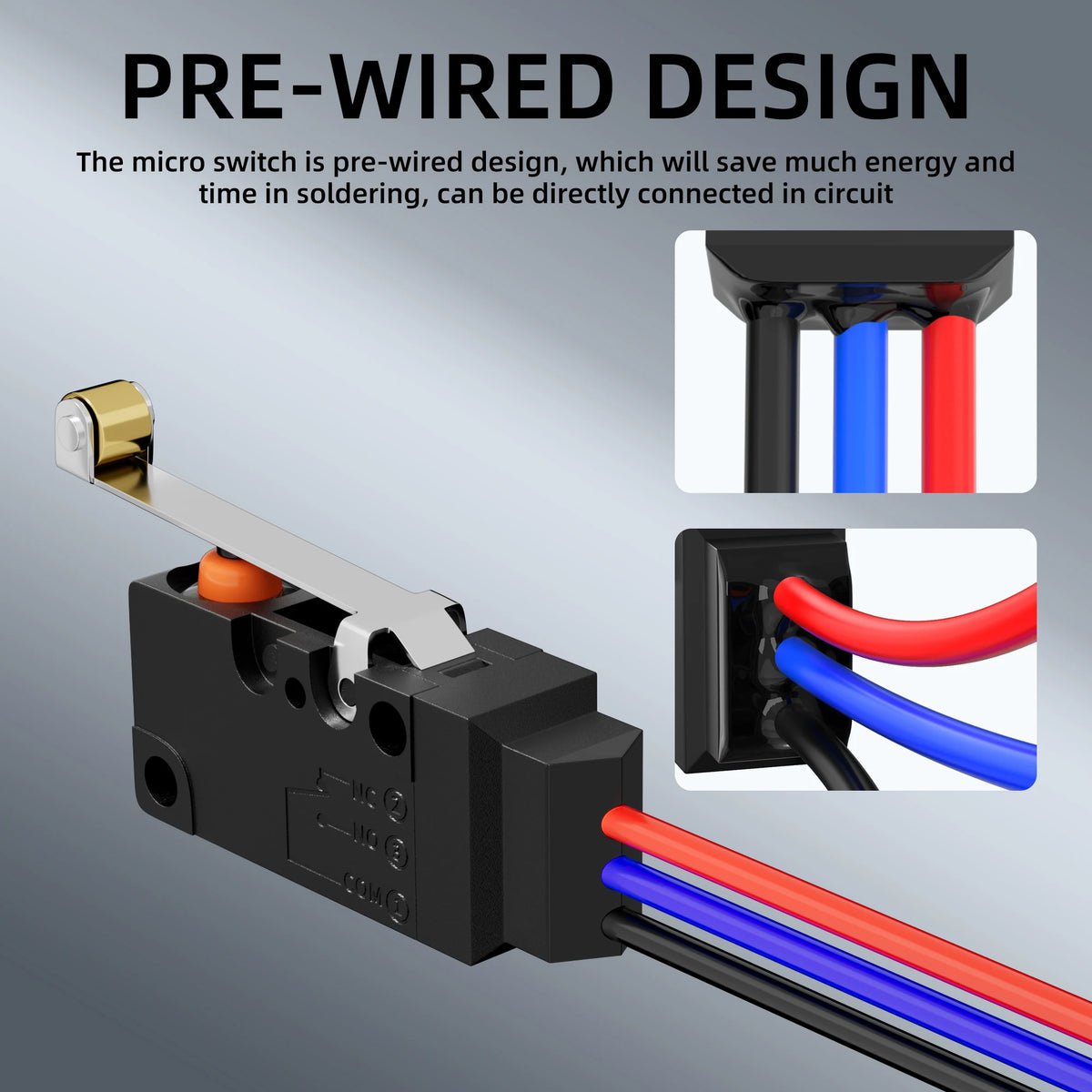

- Pre-Wired for Easy Installation: Each switch comes with a 200mm pre-attached wire lead — no soldering required. Simply connect directly to your circuit and you're ready to go.
- Wide Application Range: Perfect for CNC machines, 3D printers, industrial automation, household appliances, garage door systems, robotics, and general DIY electronics projects.

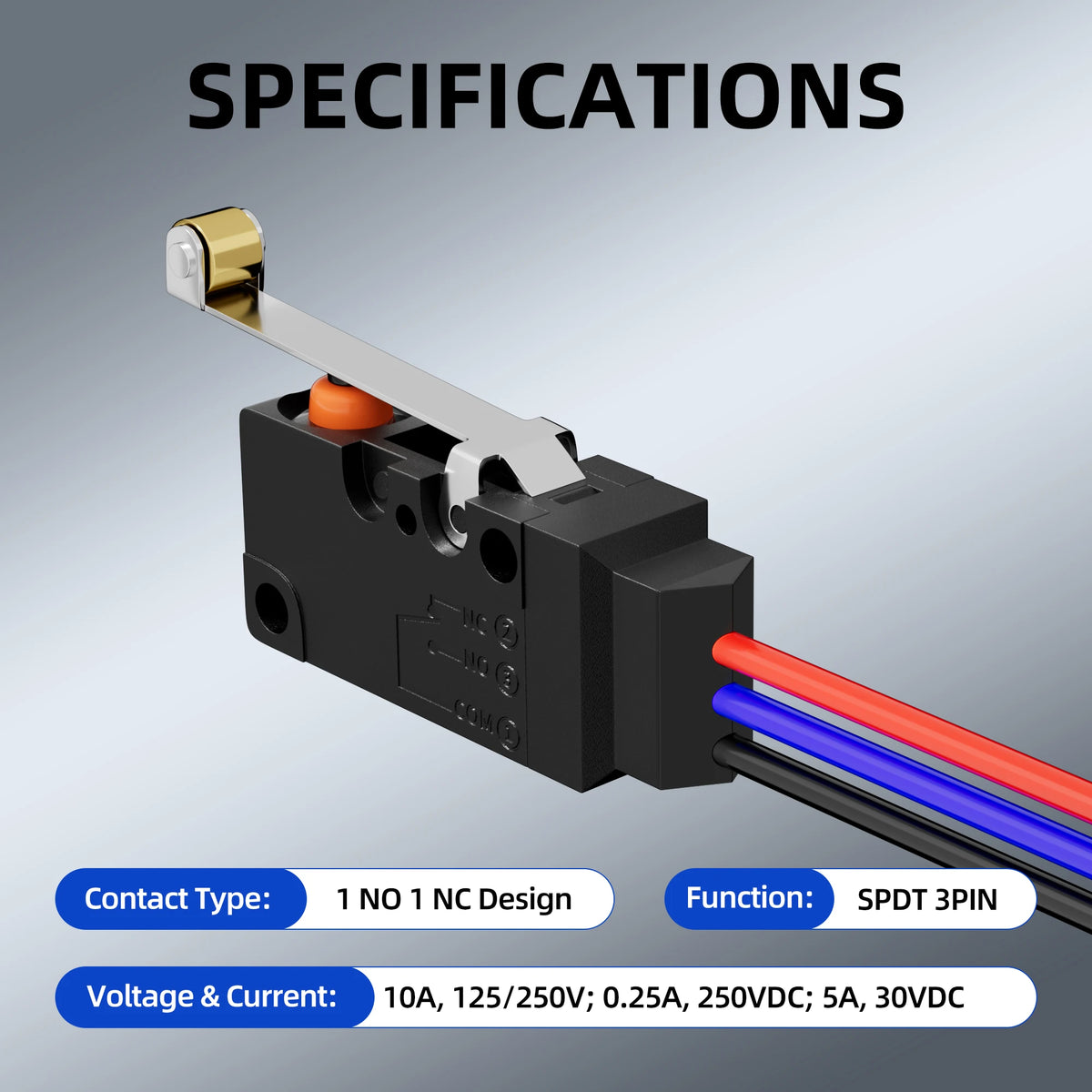

Technical Specifications
| Model | WS2-Z5-W200200 |
| Function | SPDT (Single Pole Double Throw) |
| Contact Type | 1 NO + 1 NC |
| Rating | 10A 125/250V AC; 0.25A 250VDC; 5A 30VDC |
| Lever Type | Long Straight Roller Lever (Removable) |
| Protection Rating | IP67 Waterproof & Dustproof |

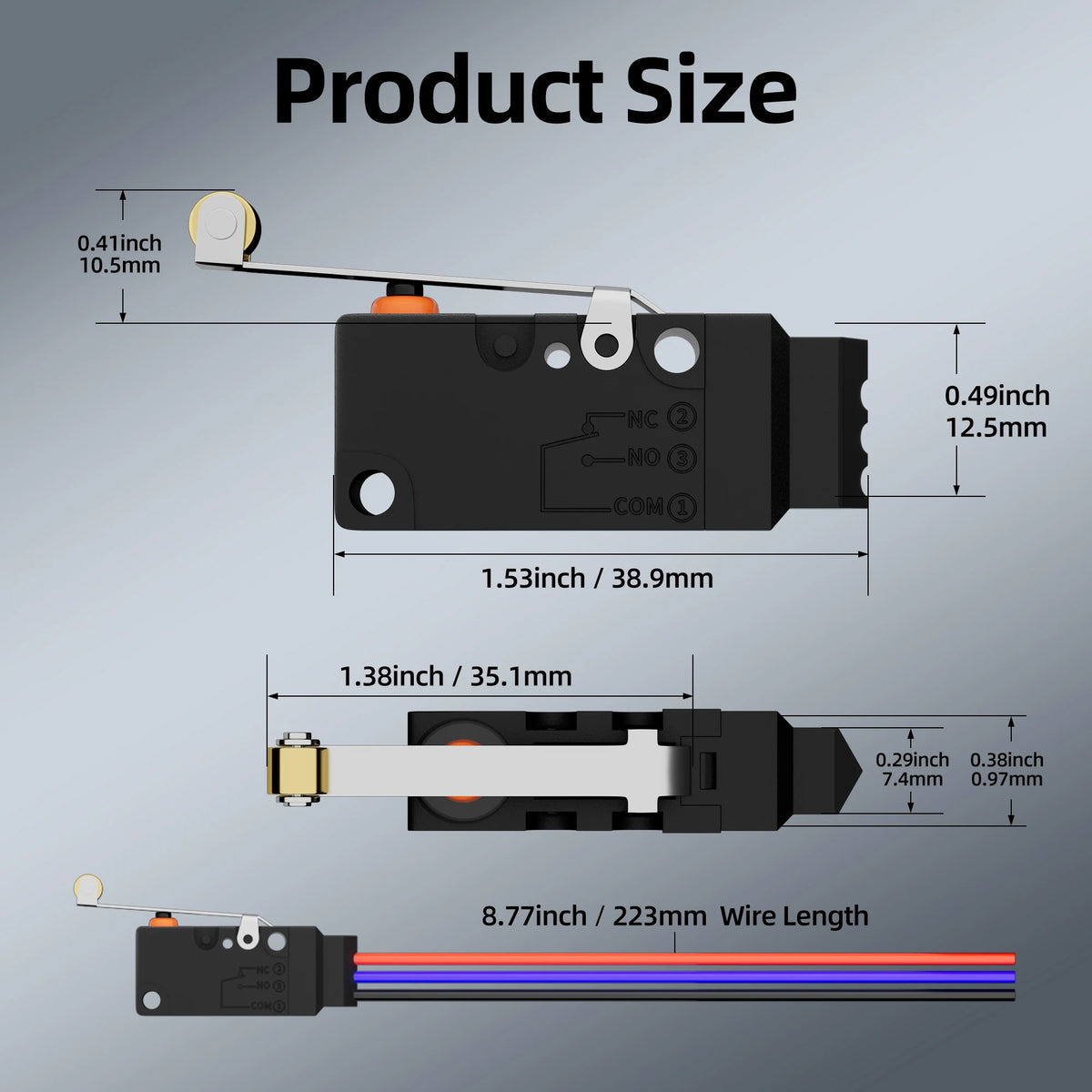

| Wire Length | 200mm |
| Material | Plastic |
| Brand | Daiertek |
| Origin | Mainland China |
What's in the Box
- 2 × Micro Limit Switch with Pre-Wired Leads (200mm)
- 2 × Long Straight Roller Lever
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What does the IP67 waterproof rating mean for these micro limit switches?
A: An IP67 rating means the switch is fully dustproof and can withstand temporary immersion in water up to 1 meter deep for 30 minutes. This makes these waterproof micro limit switches ideal for outdoor machinery, CNC routers, irrigation controls, and other environments where moisture or dust exposure is a concern.
Q: Can I use these SPDT micro limit switches with a 3D printer or CNC machine?
A: Yes! These SPDT pre-wired micro limit switches are a popular choice for CNC machines, 3D printers, and robotic systems as end-stop or homing switches. The pre-wired 200mm leads make installation straightforward, and the removable roller lever lets you fine-tune the actuation point to match your machine's geometry.
Q: Is the roller lever on these microswitches replaceable?
A: Absolutely. One of the standout features of these Daiertek micro limit switches is the removable roller lever design. You can detach, swap, or replace the long straight roller lever to meet the specific actuation requirements of your project without needing to replace the entire switch body.
Q: Do these switches require soldering during installation?
A: No soldering is needed. Each switch comes pre-wired with 200mm leads already attached, so you can connect them directly to your circuit, control board, or terminal block right out of the package — saving time and effort on your build.
