Tackle BIOS chip reading and writing with confidence using this professional-grade firmware programming fixture. Designed for laptop repair technicians, this all-in-one probe reader socket combines WSON8 and T2 ROM chip support into a single, compact fixture — streamlining your workshop setup and keeping your workbench organized.
Key Features
- 3-in-1 Chip Programming Support: Covers WSON8 (8×6mm and 6×5mm) and T2 ROM layouts in a single fixture, built for efficient BIOS chip reading and writing during laptop repair tasks.

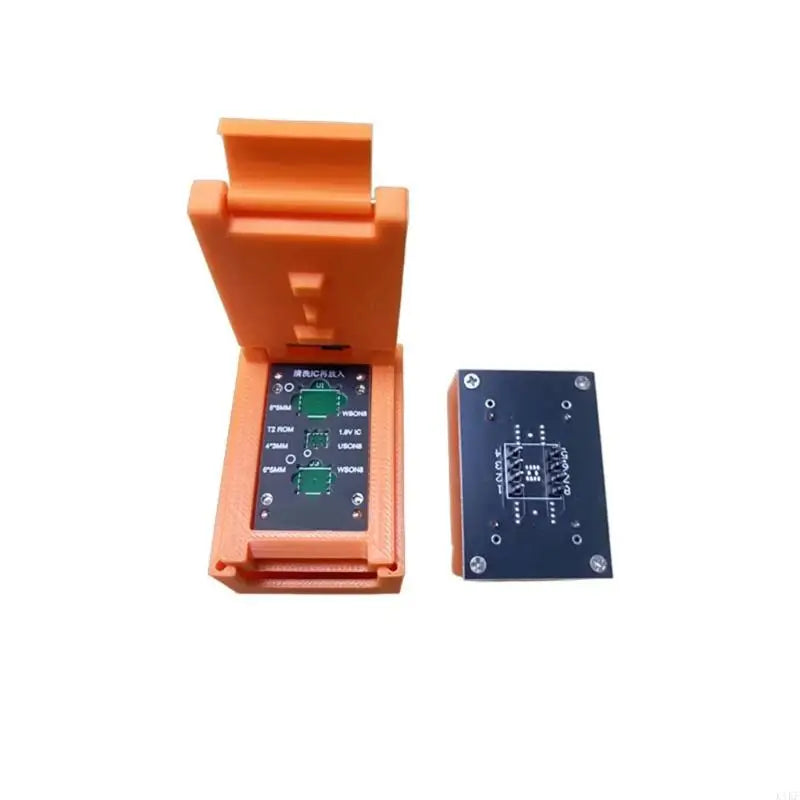

- Guided Chip Layout Reference: Printed chip position guides on the fixture surface help technicians align components faster and with greater accuracy during service procedures.

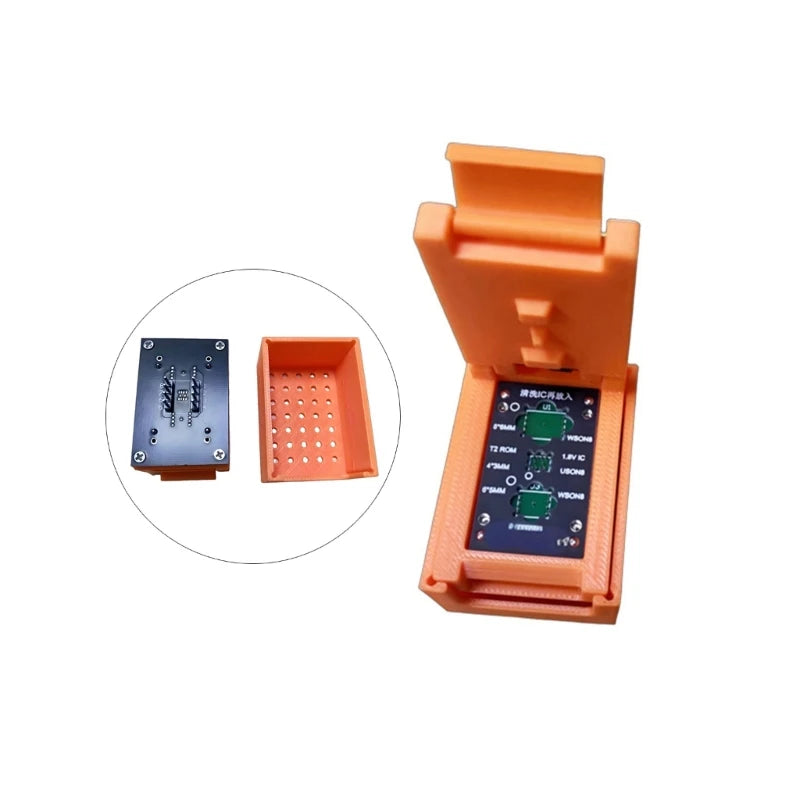

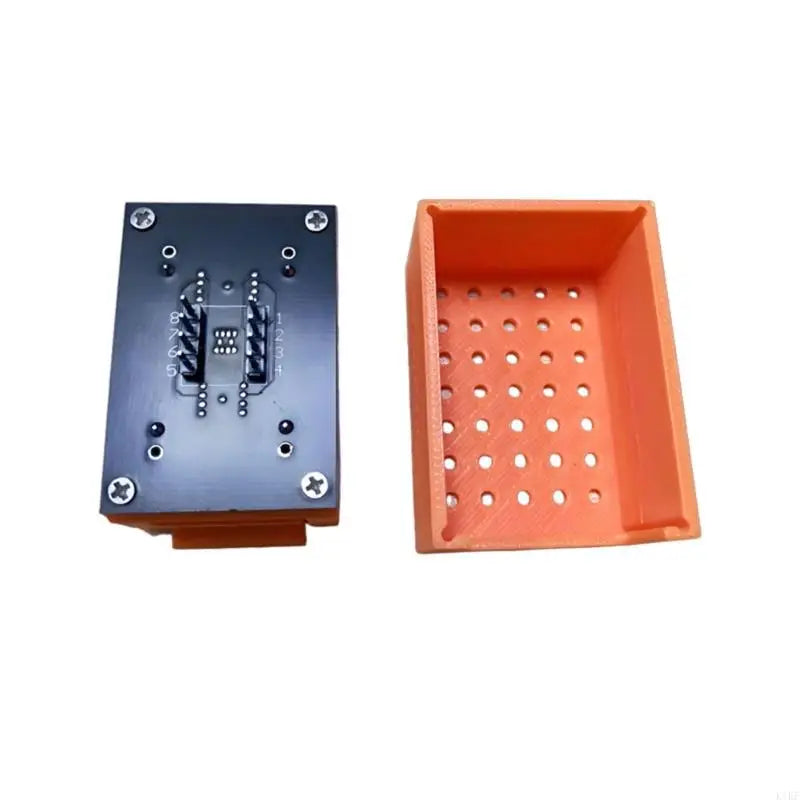

- Serviceable & Maintainable Structure: Features a removable positioning frame and a replaceable probe board, making routine maintenance straightforward for high-volume workshop environments.
- Clear Electrical Reference: Supports 3.3V and 5V operation at 0.1A working current — providing a reliable electrical reference before integrating the socket into your programming workflow.
- Durable Plastic Housing: Constructed from quality plastic; avoid exposure to corrosive liquids to preserve housing integrity over extended workshop use.
Specifications
| Compatible Layouts | WSON8 (8×6mm, 6×5mm), T2 ROM |
| Operating Voltage | 3.3V / 5V |
| Operating Current | 0.1A |
| Material | Plastic |
| Assembly Required | Yes |
| Quantity | 1 Set (Probe Reader Socket) |
| Country of Origin | Made in Mainland China |
Package Includes
- 1 × Probe Reader Socket (with removable positioning frame and replaceable probe board)
Important Notes
- Please allow 1–2 cm measurement tolerance due to manual measurement; confirm dimensions suit your needs before ordering.
- Actual product color may vary slightly from images due to differences in monitor calibration.
- Avoid contact with corrosive liquids to preserve housing during workshop use.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What chip types does this WSON8 firmware programming fixture support?
A: This 3-in-1 firmware programming fixture supports WSON8 chips in both 8×6mm and 6×5mm sizes, as well as T2 ROM layouts. It is designed specifically for BIOS chip reading and writing tasks during laptop repair and service work.
Q: Is the probe board replaceable on this programming fixture?
A: Yes. The fixture features a replaceable probe board and a removable positioning frame, making it easy to maintain and service — ideal for technicians who handle high volumes of laptop firmware programming tasks on a regular basis.
Q: What voltages does this laptop firmware programming socket operate at?
A: The probe reader socket operates at 3.3V and 5V with a working current of 0.1A. Always verify your programmer's voltage compatibility before use to ensure a safe and accurate programming workflow.
