Xbox One Elite Series 2 USB-C Circuit Board Replacement Part
Xbox One Elite Series 2 USB-C Circuit Board Replacement Part

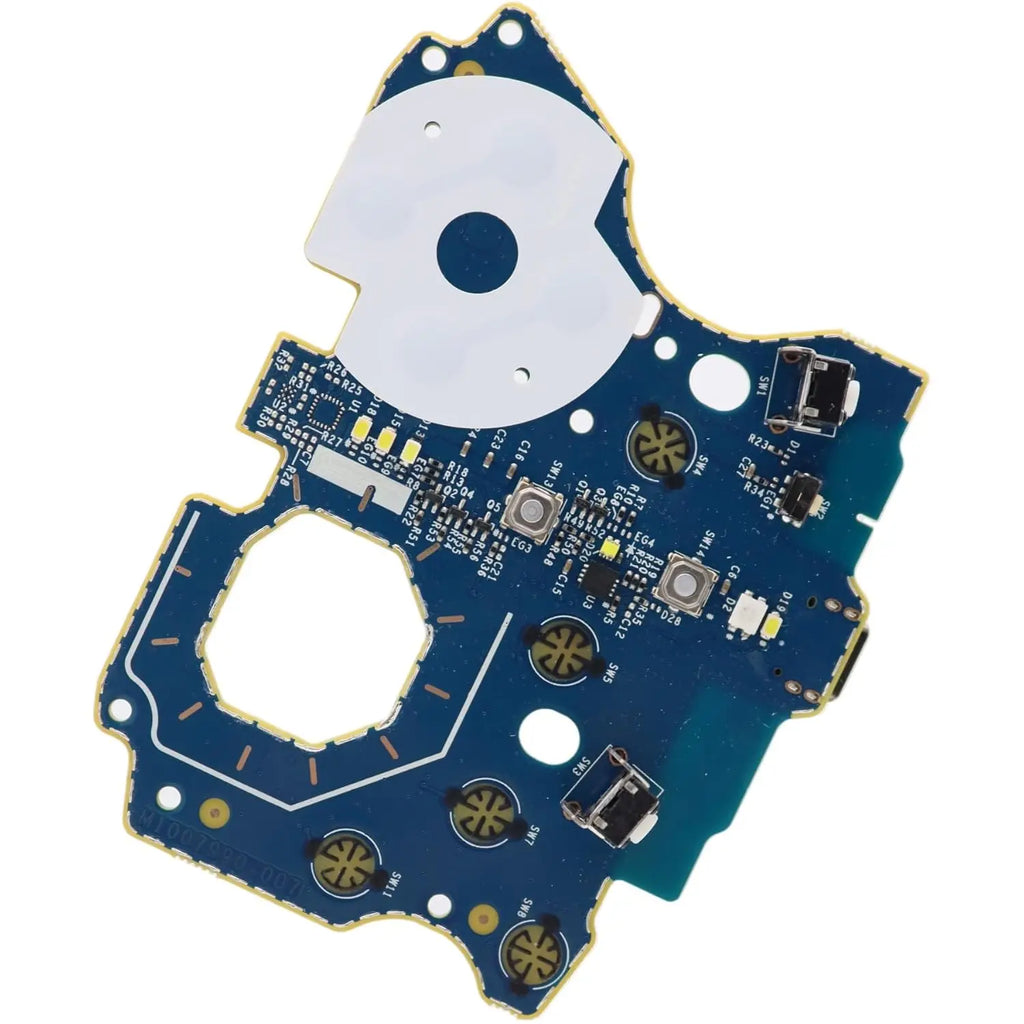

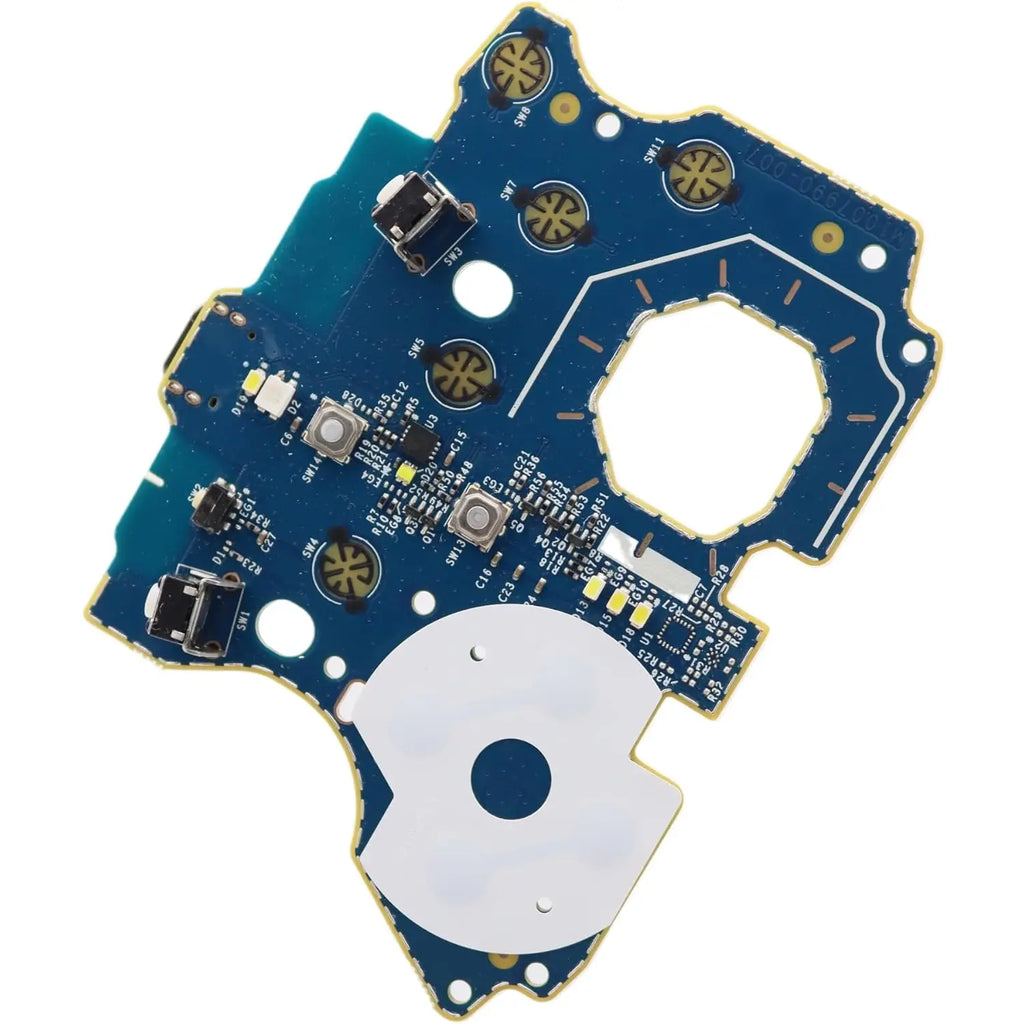

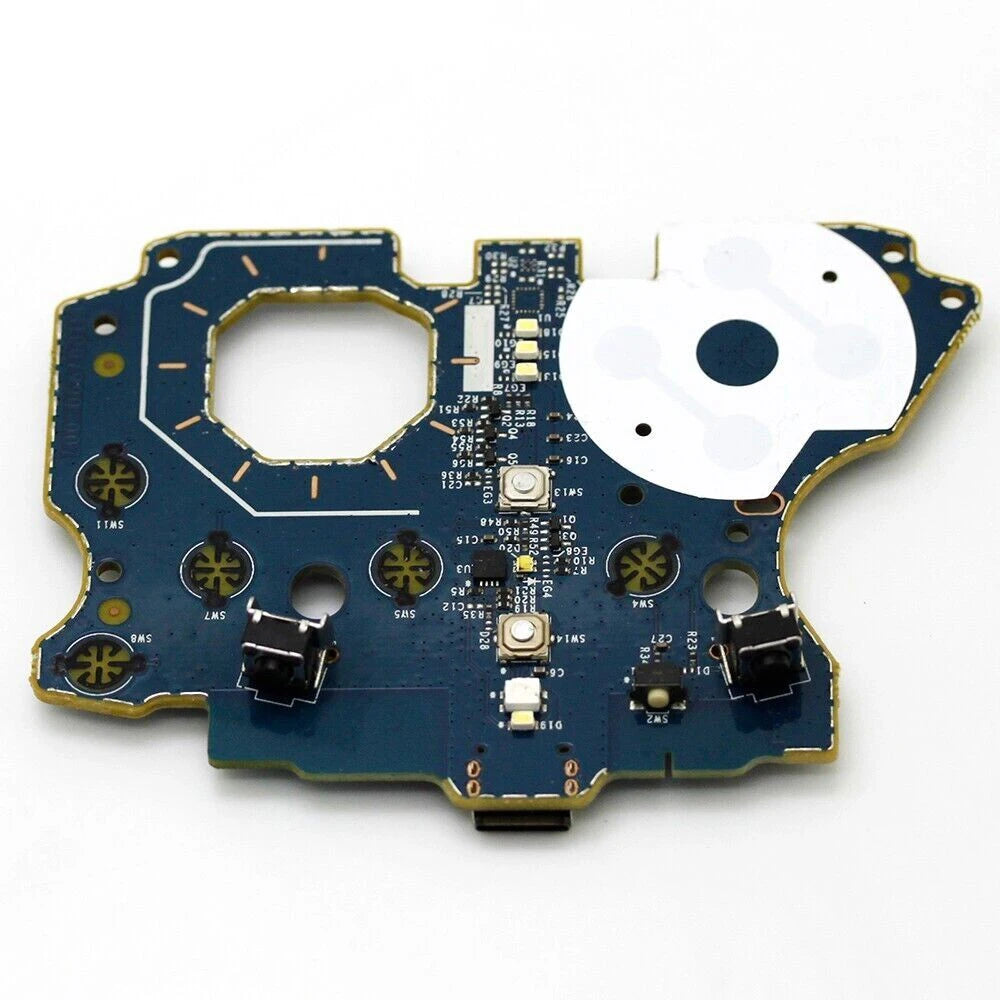

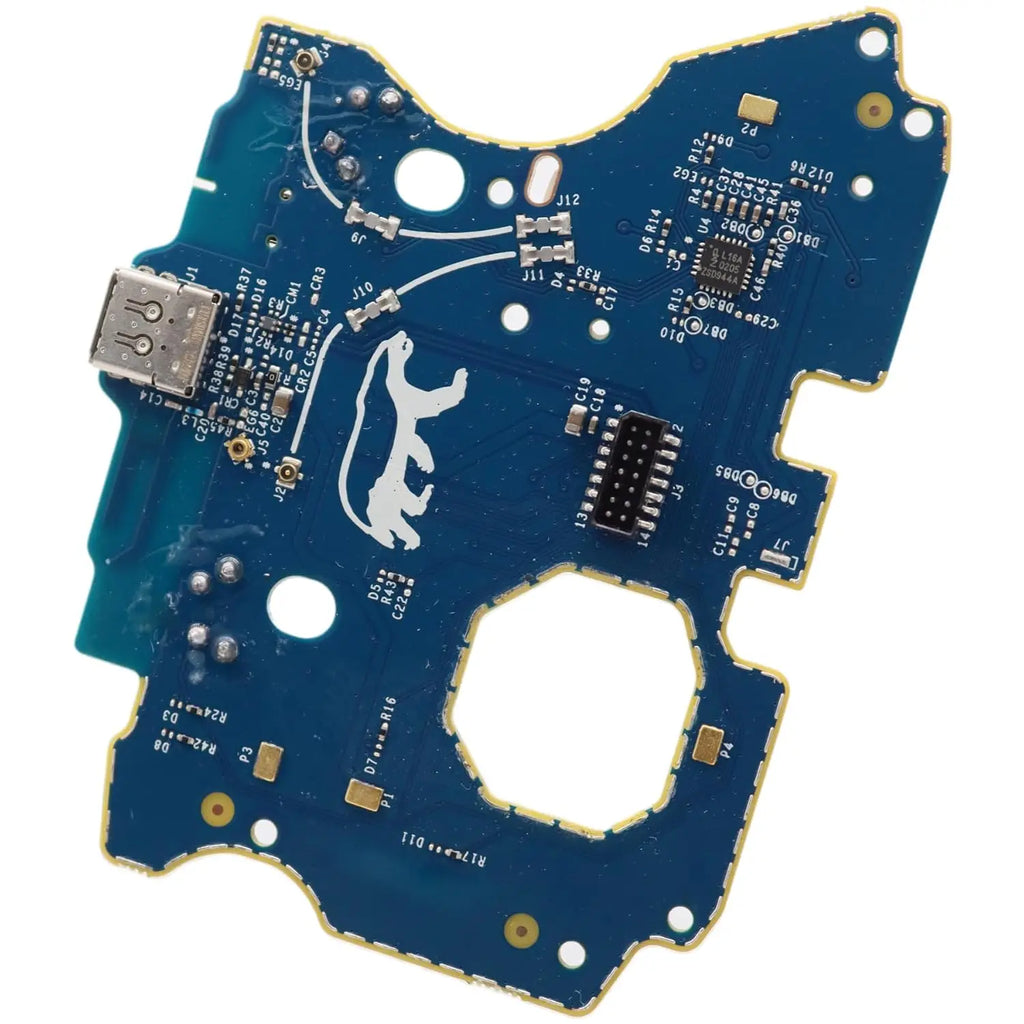

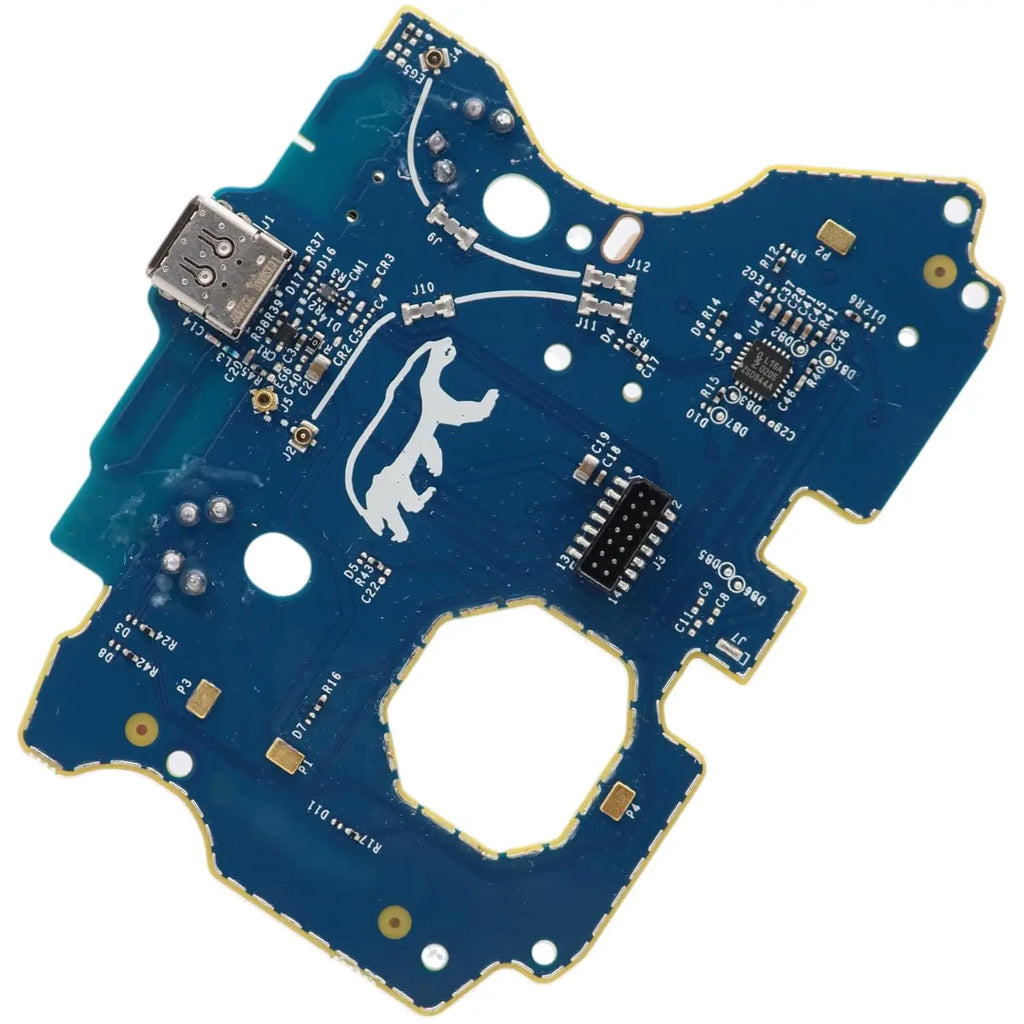

Xbox One Elite Series 2 Controller USB-C Power & Button Circuit Board
Bring your Xbox One Elite Series 2 controller back to life with this OEM-compatible replacement circuit board. Featuring integrated contact pads for button inputs and battery management, plus a USB-C power port, this board is designed to restore full functionality to your Elite Series 2 controller — all without the high cost of professional repair services.
Is This the Right Part for You?
This board is the ideal solution if your Elite Series 2 controller is experiencing any of the following issues:
- Controller not charging via USB-C
- One or more buttons becoming unresponsive
- Charger not being recognized
- Controller not communicating with the charging dock
Key Features
- USB-C Power Port — Replaces a faulty charging connection for reliable, fast charging
- Button Contact Pads — Restores accurate input registration across all controller buttons
- Battery Management Integration — Ensures proper battery recognition and power delivery
- OEM-Compatible Design — Built to fit seamlessly with Xbox One Elite Series 2 controllers
- Cost-Effective Fix — Save significantly compared to professional repair quotes

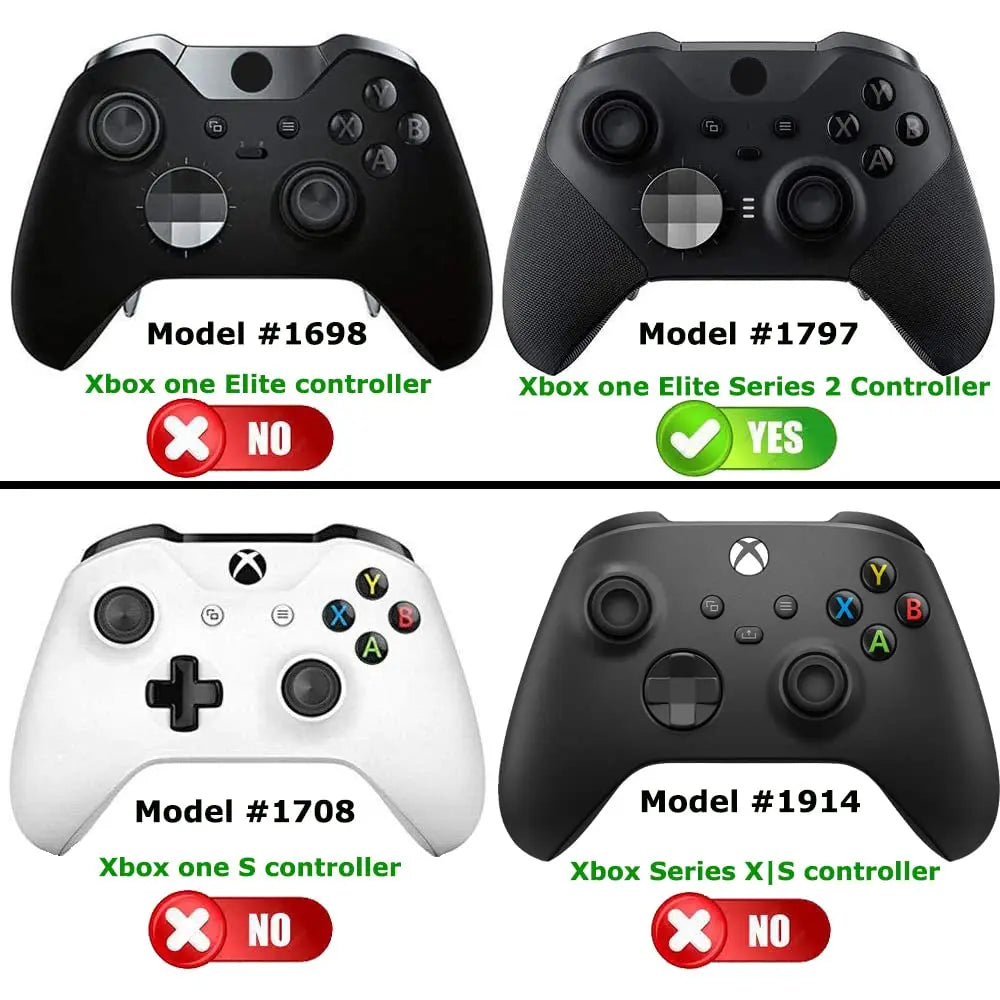

Compatibility
- ✅ Compatible: Xbox One Elite Series 2 official controllers
- ❌ NOT Compatible: Elite V1 (Model: 1698) or any other controller models
Part Numbers
Part Numbers on board: M1007990-007, M1007990
What's in the Box
- 1x NEW USB-C Power & Buttons Circuit TOP Board
⚠️ Important Note: Installation requires disassembly of the controller. This process will void any existing manufacturer warranty. Please ensure you are comfortable with DIY electronics repair before purchasing.
Made in Mainland China.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: Is this Xbox Elite Series 2 circuit board compatible with the original Elite Series 1 (V1) controller?
A: No. This USB-C power and button circuit board is specifically designed for the Xbox One Elite Series 2 controller only. It is NOT compatible with the Elite Series 1 / V1 (Model: 1698) or any other controller variants. Please verify your controller model before ordering.
Q: What issues can this Xbox Elite Series 2 replacement circuit board fix?
A: This circuit board can address several common controller issues, including the controller not charging through USB-C, buttons becoming unresponsive, the charger not being recognized, or the controller failing to communicate with its charging dock. Replacing this board is a cost-effective alternative to expensive professional repairs.
Q: Do I need any special tools to install this Xbox Elite Series 2 circuit board?
A: Installation requires disassembling the Xbox Elite Series 2 controller, typically using a Torx screwdriver set. A basic knowledge of electronics repair is recommended. Please note that opening the controller will void any existing manufacturer warranty, so proceed only if you are confident in DIY repairs or if your warranty has already expired.
Q: What are the part numbers for this replacement board?
A: The part numbers printed on this replacement circuit board are M1007990-007 and M1007990. You can cross-reference these numbers with your existing board to confirm compatibility before installation.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
