XCR3D Mechanical Limit Switch Endstop for Reprap RAMPS 1.4 3D Printer

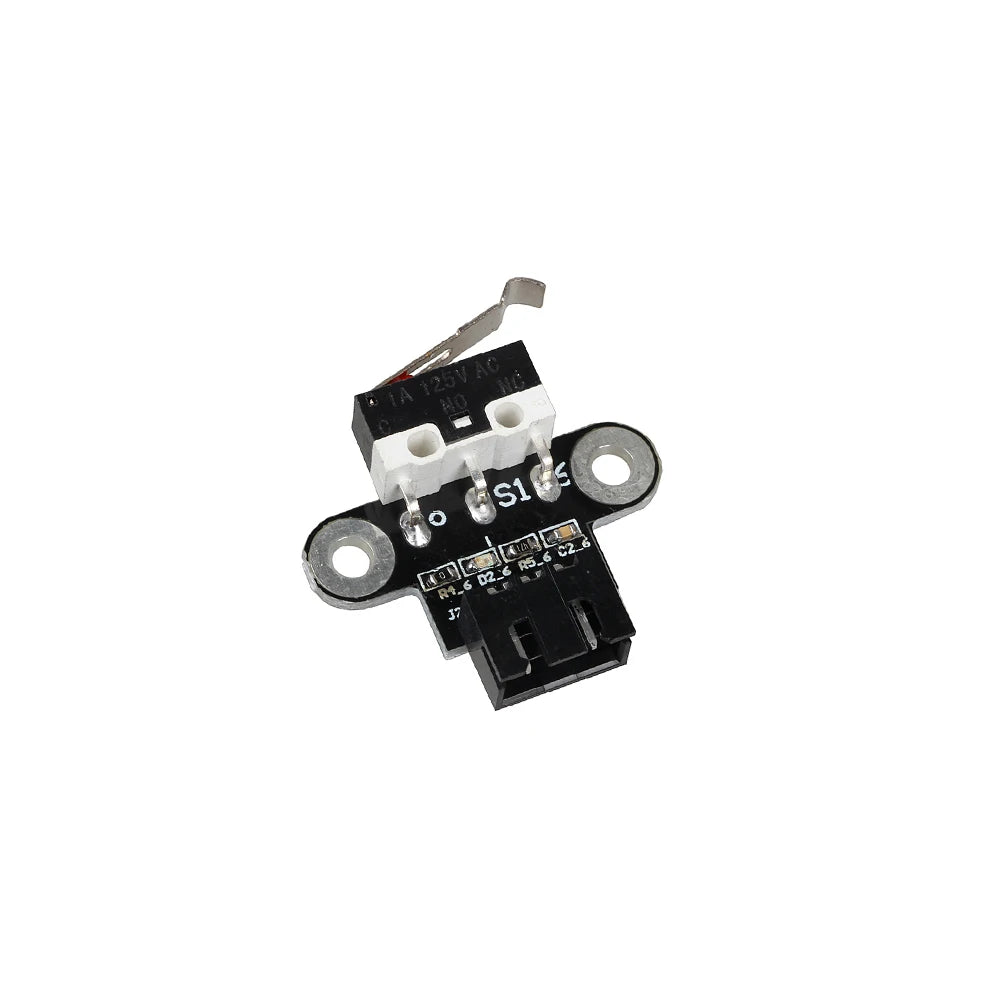

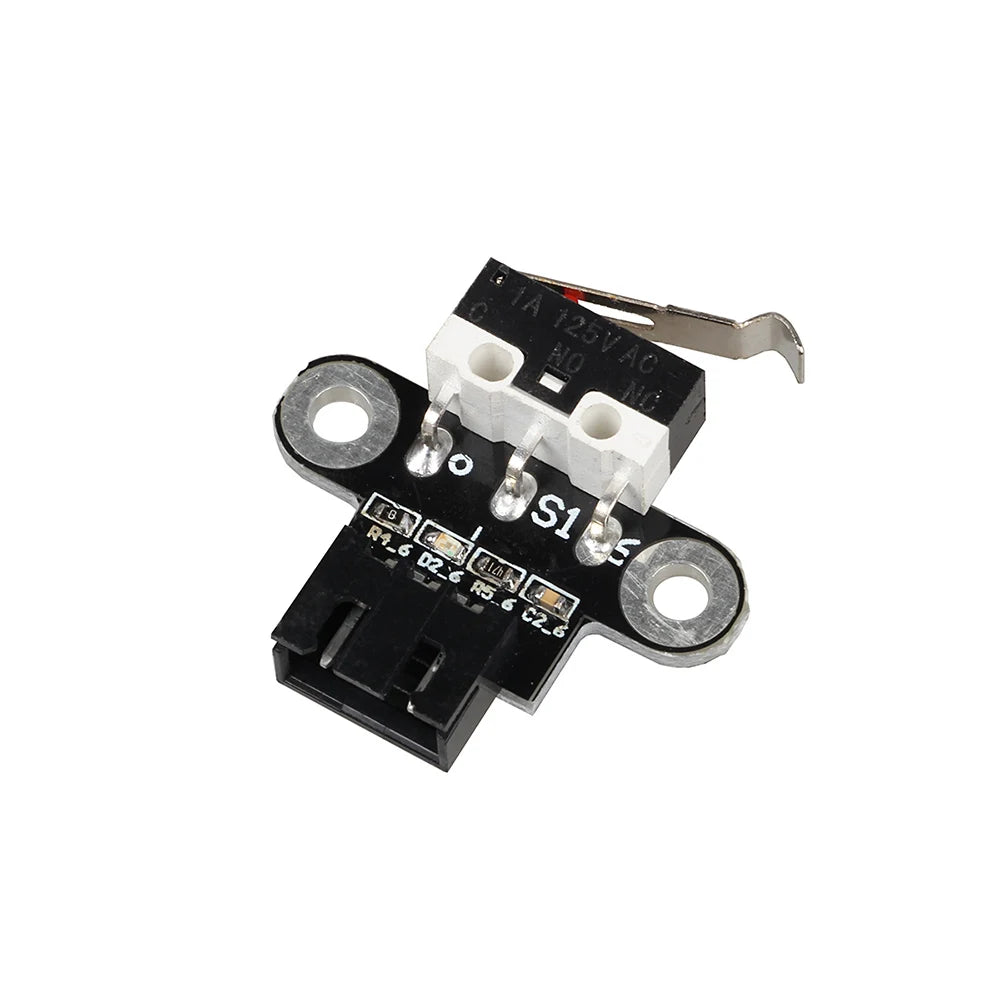

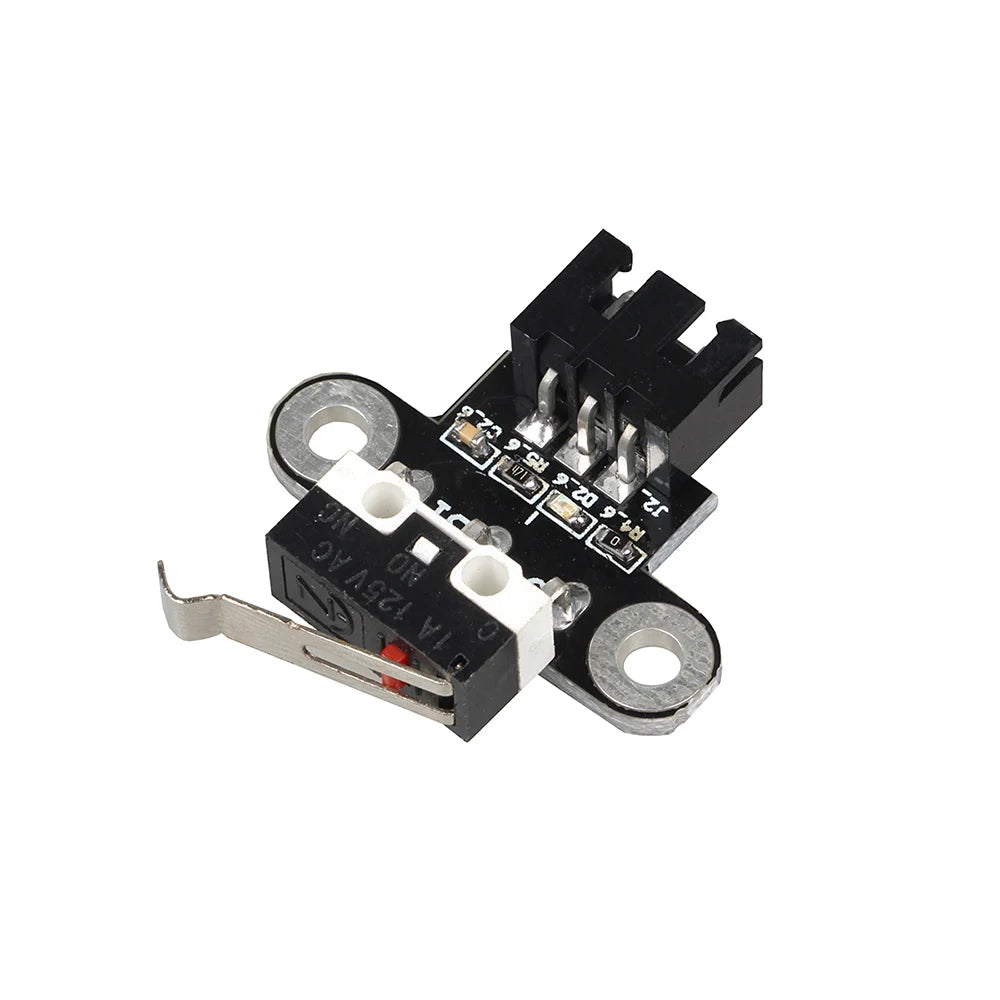

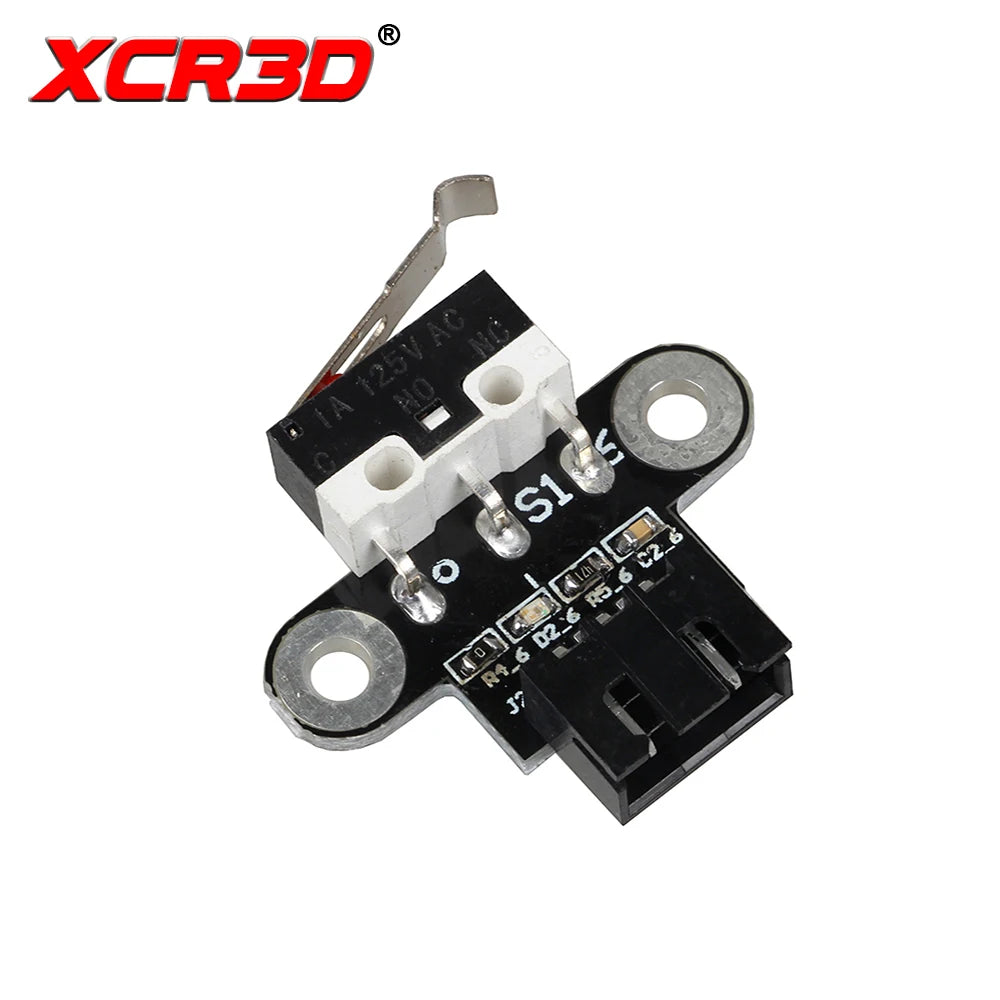

XCR3D Horizontal Mechanical Limit Switch Endstop Module

Keep your 3D printer running with precision and accuracy using the XCR3D Mechanical Limit Switch Endstop Module. Designed specifically for DIY 3D printer builds and upgrades, this horizontal-type limit switch provides reliable axis homing and position detection for your machine's X, Y, and Z axes. Compatible with popular control boards including Reprap RAMPS 1.4 motherboards, it's a must-have component for any serious 3D printing enthusiast or maker.

Key Features

• Horizontal Type Design: Compact, low-profile layout fits neatly into most 3D printer frame configurations without interfering with moving parts.

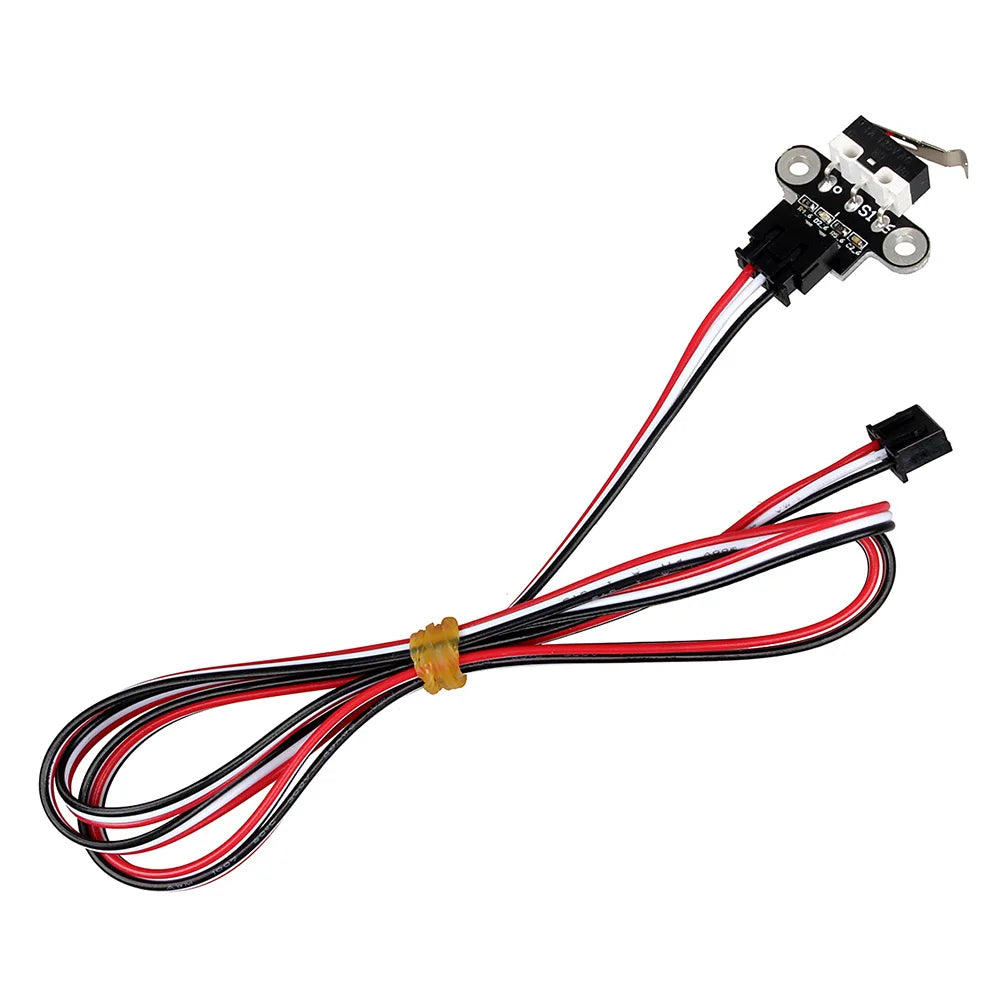

• 1M Cable Included: Pre-attached 1-metre cable allows for easy routing from the switch to your control board — no soldering required.
• Plug-and-Play Ready: No assembly required; simply connect and configure in your firmware for instant use.
• Reprap & RAMPS 1.4 Compatible: Designed to work seamlessly with DIY motherboard setups including Reprap and RAMPS 1.4-based systems.
• Durable Black Housing: Sturdy black casing protects the internal switch mechanism from dust and minor impacts during operation.
• Versatile Use: Ideal for hobbyist builds, printer upgrades, and custom CNC or motion control projects.

Specifications

• Brand: XCR3D
• Item Type: Mechanical Limit Switch / Endstop Module
• Type: Horizontal
• Cable Length: 1 Metre
• Color: Black
• Application: 3D Printing, DIY Reprap, RAMPS 1.4 Motherboards
• Assembly Required: No
• Country of Origin: Made in Mainland China

What's in the Box?

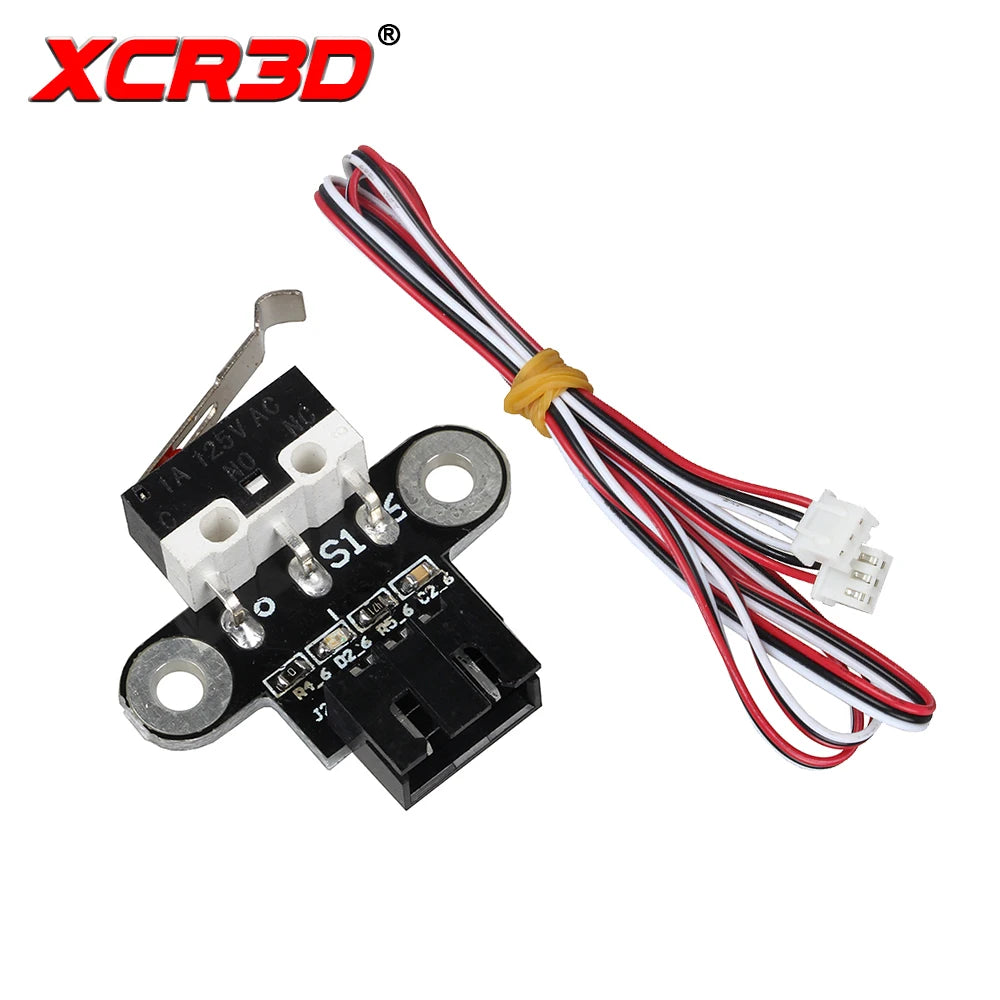

• 1 × XCR3D Mechanical Limit Switch Endstop Module (Horizontal Type)
• 1 × 1M Pre-attached Cable

Who Is This For?

Whether you're building a new 3D printer from scratch, replacing a worn endstop, or upgrading your current setup, the XCR3D Mechanical Limit Switch delivers consistent, repeatable triggering that your printer firmware can rely on. Perfect for Marlin firmware users and anyone working with Reprap-based architectures.

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: Is this mechanical limit switch compatible with RAMPS 1.4 boards?

A: Yes, the XCR3D Mechanical Limit Switch Endstop Module is specifically designed for compatibility with DIY motherboards including Reprap RAMPS 1.4. The pre-attached 1M cable connects directly to your endstop pins without any modifications.

Q: Does this limit switch require any assembly or soldering?

A: No assembly or soldering is required. The module comes with a pre-attached 1-metre cable and is ready to plug directly into your 3D printer's control board endstop connector right out of the box.

Q: What type of 3D printers is this endstop module suitable for?

A: This horizontal-type mechanical limit switch is suitable for most DIY 3D printers, Reprap-style builds, and custom CNC or motion control projects that use standard endstop connections. It works with popular firmware platforms such as Marlin.
