XT90 to QS8 AntiSpark Battery Adapter Cable — Preassembled & Ready to Use
Stop rewiring your RC aircraft or battery-powered equipment just because your connectors don't match. This CACAZI QS8-S Male to XT90S-F Female adapter cable gives you an instant, clean conversion between QS8 and XT90 connector systems — no soldering, no guesswork, no temporary workarounds. Made in Mainland China.
Key Features
- Exact Connector Conversion: The QS8-S male to XT90S-F female configuration bridges your battery and equipment without replacing the equipment-side plug — keeping your build tidy and intact.
- Built-In AntiSpark (Sparkproof) Design: Integrated resistor on the XT90S-F female end significantly reduces arcing during connection, protecting your equipment and connectors with every plug-in.
- Preassembled & Ready Out of the Box: Both connector ends arrive fully joined — simply plug in and go. No assembly or soldering required.
- Heavy-Duty 8AWG Silicone Wire: Flexible, high-strand silicone wire rated to handle high-current applications with ease, maintaining bend flexibility even in tight builds.
- 200°C Heat-Resistant Wire: The silicone wire insulation withstands high operating temperatures, ensuring safe, stable performance during demanding power delivery sessions.
- Durable PVC Outer Construction: A PVC outer covering protects the wire harness, providing a neat and robust finished assembly.

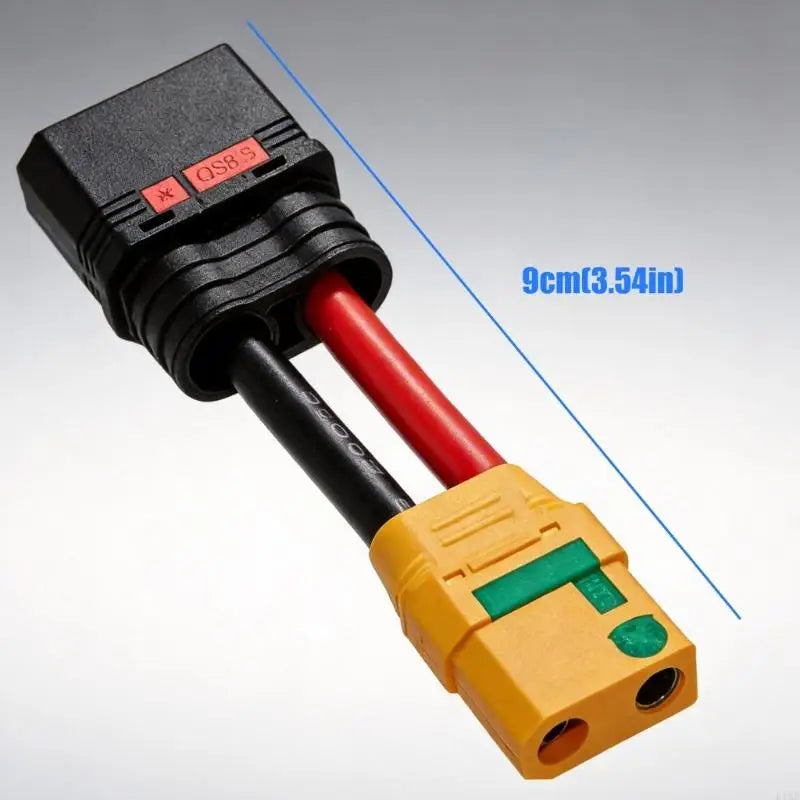

- Compact 9cm Length: The short ~9 cm (3.54 inch) cable keeps your power path direct and minimizes resistance, ideal for use in aircraft models and RC vehicles.
Specifications
| Connector Configuration | QS8-S Male & XT90S-F Female (with resistor) |
| Wire Gauge | 8AWG Flexible Silicone Wire |
| Cable Length | Approx. 9 cm / 3.54 inches (0.2 m overall) |
| Temperature Resistance | Up to 200°C |
| Outer Material | PVC |
| Type | Sparkproof Wire Harness Adapter |
| Country of Origin | Made in Mainland China |
What's in the Box
- 1× QS8-S Male to XT90S-F Female AntiSpark Adapter Cable
Important Notes
- Please allow ±1–2 cm variance due to manual measurement.
- Screen color calibration may cause slight differences between product images and the actual item color.
- Only use with equipment where connector type, orientation, and polarity are confirmed to be identical to the specified configuration.
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: What does the AntiSpark (sparkproof) feature on this XT90 to QS8 adapter cable do?
A: The integrated resistor on the XT90S-F female connector pre-charges the capacitors in your ESC or power system before full current flows, dramatically reducing the arc (spark) that occurs when plugging in a high-capacity battery. This protects both your connectors and downstream electronics from wear and damage over time.
Q: Is soldering required to use this QS8 to XT90 adapter cable?
A: No soldering is needed. This adapter cable comes fully preassembled — the QS8-S male and XT90S-F female connectors are already joined to the 8AWG silicone wire, so you can plug it directly into your RC aircraft, drone, or battery-powered model right out of the box.
Q: What equipment is this XT90 to QS8 adapter cable compatible with?
A: This cable is designed for RC aircraft models, drones, and other battery-powered equipment that use either a QS8 or XT90 connector system. Always verify that your battery and equipment connectors match the QS8-S male and XT90S-F female configuration, and confirm correct polarity before connecting.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
