XT90 UAV Power Module — Up to 120A Current Sensing, 2S–12S Battery Input
Power your drone build with confidence. This pre-assembled XT90 Power Module is engineered for UAV and multirotor platforms, delivering a stable 5.2V/3A regulated output to your flight controller while simultaneously providing accurate battery voltage and current telemetry data — all from a single, compact inline module.
Why Choose This Power Module?
- Wide Battery Compatibility: Accepts 2S to 12S LiPo/LiIon battery input, making it suitable for a broad range of UAV frame sizes and power requirements.
- High-Current Sensing: Monitors up to 120A of current draw, giving your flight controller real-time power data for accurate battery state estimation.
- Defined Current Ratings: Rated for 60A continuous operation, up to 100A for short bursts (under 60 seconds), and up to 120A for current sensing — so you always know your operational limits.
- Stable Flight Controller Output: Outputs a clean 5.2V at 3A to power your Pixhawk or compatible flight controller without noise or voltage sag.
- Preassembled & Ready to Install: Arrives with XT90 input/output connectors, a filter capacitor, and a data cable already assembled — plug in and fly faster with minimal bench time.
- Clear Heat-Shrink Circuit Board Cover: The included transparent heat-shrink sleeve protects the PCB from shorts and debris without obscuring the board for visual inspection.
Specifications
| Input | 2S–12S LiPo / LiIon Battery |
| Output Voltage | 5.2V / 3A (for flight controller) |
| Continuous Current Rating | 60A (PCB rated) |
| Short-Duration Current | Up to 100A (<60 seconds) |
| Current Sensing Range | Up to 120A |
| Connectors | XT90 Input & Output |

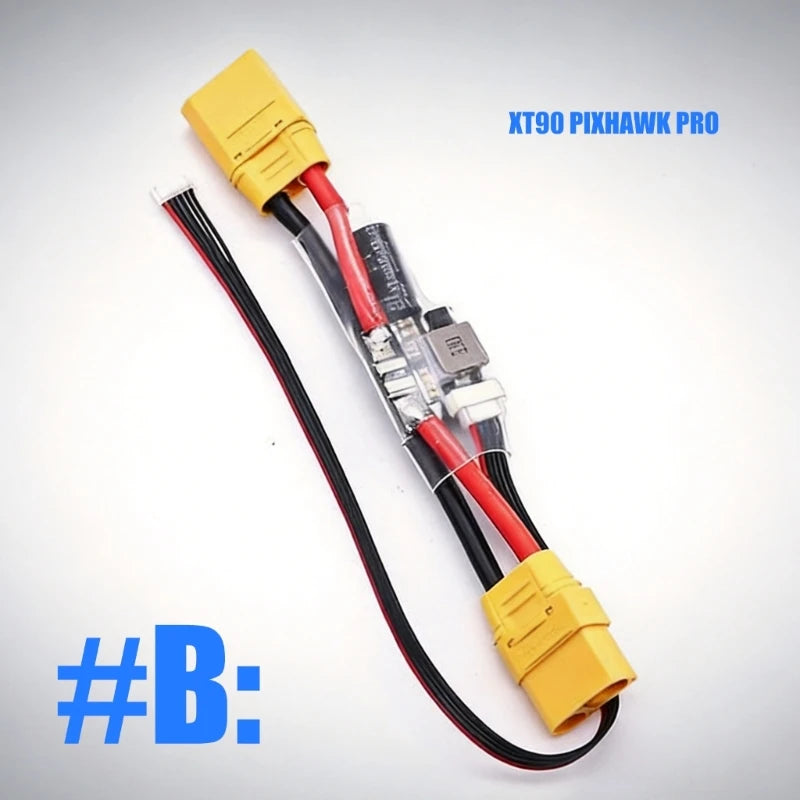

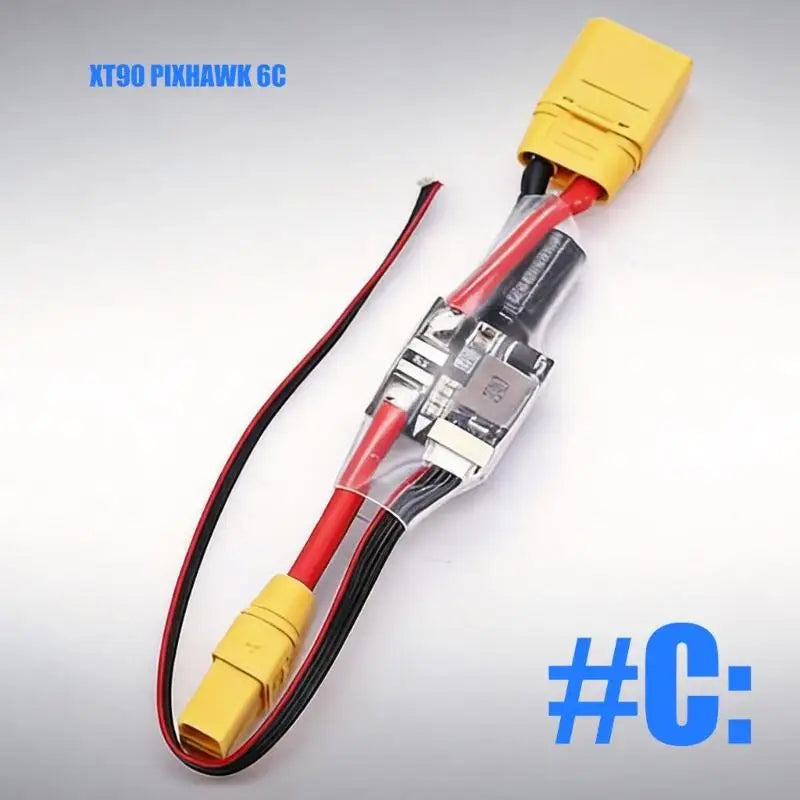

| Compatible Flight Controllers | Pixhawk 2.4.8, Pixhawk Pro, Pixhawk 6C |
| Insulation | PVC insulation layer with heat-shrink tubing |

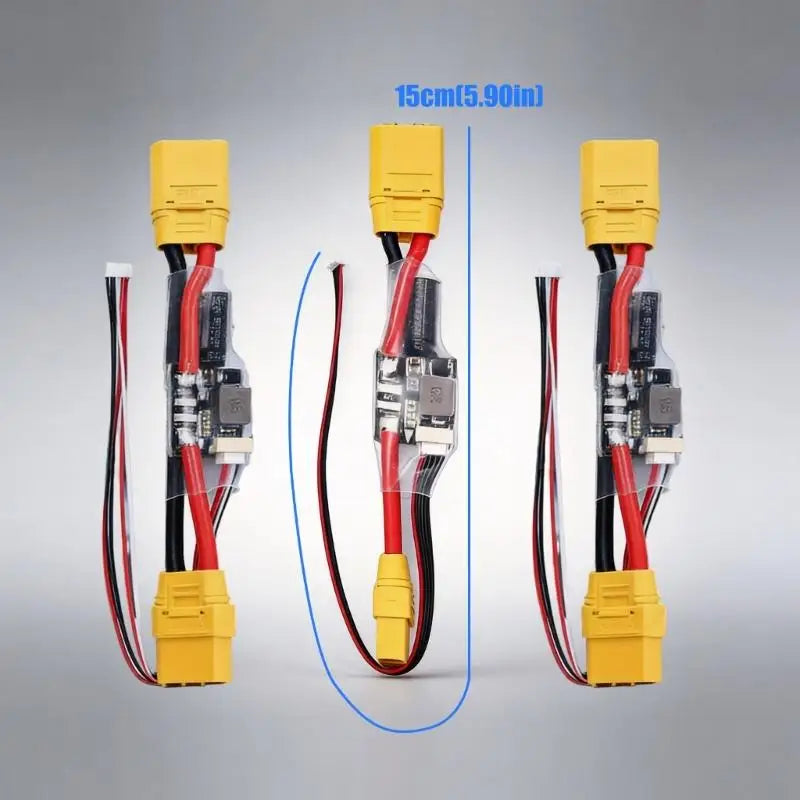

| Approximate Length | 15 cm / 5.91 inches |
| Country of Origin | Made in China |
What's in the Box?

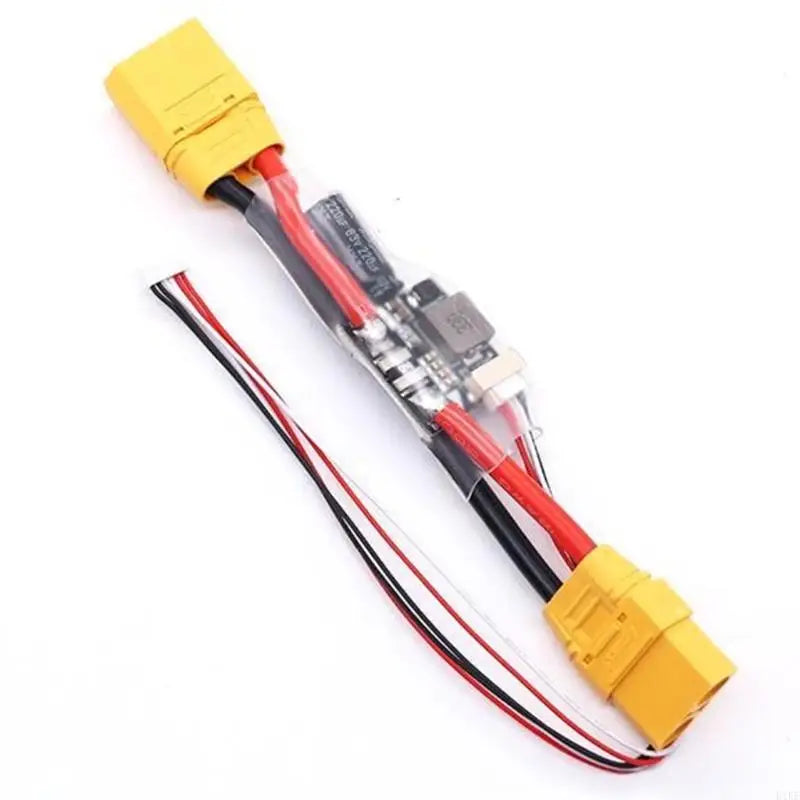

- 1× XT90 Power Module (pre-wired with connectors, capacitor, data cable, and clear heat-shrink cover)
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: Which flight controllers is this XT90 UAV Power Module compatible with?
A: This power module is designed for use with Pixhawk 2.4.8, Pixhawk Pro, and Pixhawk 6C flight controllers. Its standard 6-pin power connector and 5.2V/3A regulated output make it broadly compatible with most Pixhawk-series and similar open-source autopilot boards.
Q: What is the difference between the 60A, 100A, and 120A current ratings?
A: The 60A rating is the safe continuous current the PCB traces can handle during normal flight. The 100A rating applies to short bursts of high-demand (under 60 seconds), such as aggressive throttle inputs. The 120A figure is the maximum range of the current sensor — meaning the module can accurately measure and report current draws up to 120A to your flight controller, even if the PCB itself should not sustain that level continuously.
Q: Does this power module come pre-assembled and ready to install?
A: Yes. The module ships with all key components already assembled — XT90 input and output connectors, a noise-filtering capacitor, and a data cable are pre-wired to the board. Simply connect it between your battery and ESC/PDB, plug the data cable into your flight controller's power port, and you're ready to go.
Q: Can this module handle a 12S battery for high-voltage UAV builds?
A: Yes. The module supports battery inputs from 2S all the way up to 12S, making it suitable for both lightweight mini-quad builds and larger, high-voltage professional UAV platforms. Always ensure your ESCs and other downstream components are also rated for 12S voltage before proceeding.
